Remote I/O Modules
ELECTRICAL CONNECTIONS

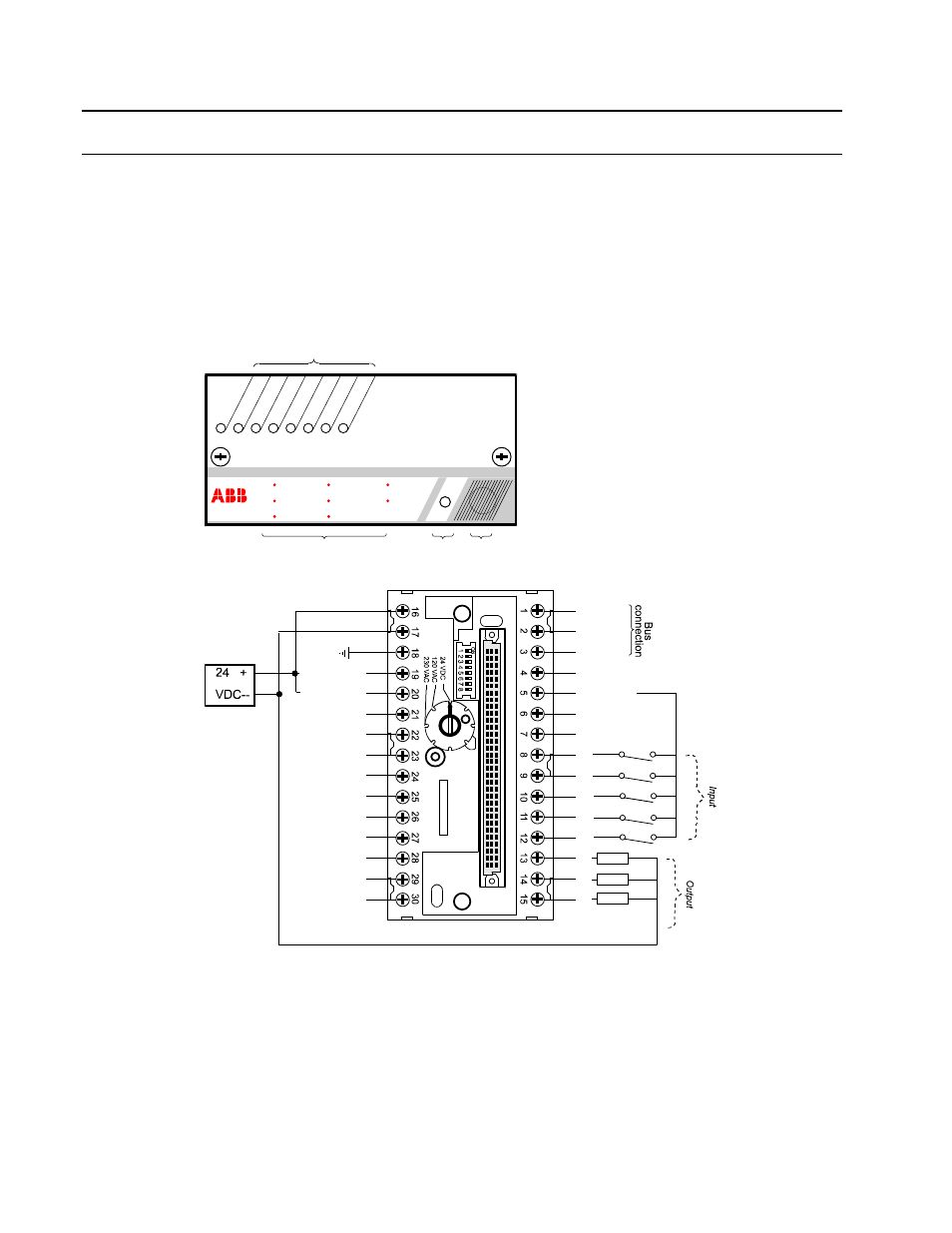

3.6.9 ICSC 08 L1: 8 Configurable 24Vdc Inputs or 24Vdc 500mA Transistor Outputs
Binary input/output unit with 8 channels. The function of each channel can be selected as a
24 VDC input or as a 24 VDC 500 mA transistor output. The unit has to be mounted on a
plug-in base ECZ.
Description of the unit front :
Eight yellow input/output status led's «0» to «7» 1
«TEST» push-button ..........2
Red error led .......................3
List of error codes ...............4
3 2 4
ICSC08L1 24 VDC
I/O REMOTE UNIT ABB Procontic CS 31
Unit error
Bus error TEST
0
1
2
3
4
5
6
7 Overload
0 1 2 3
1
Short circuit
Cut wire
4 5 6 7
Output
Input
Shield
Bus # 1
Bus # 2
Common +
Common +
Common -
Common -
Common +
Common +
Common +
Common +
Common +
Common +
Common +
Common +
Common +
Common +
A
B
C
D
E
F
G
H
Common –
Load
Load
Load
Not Used
