Remote I/O Modules

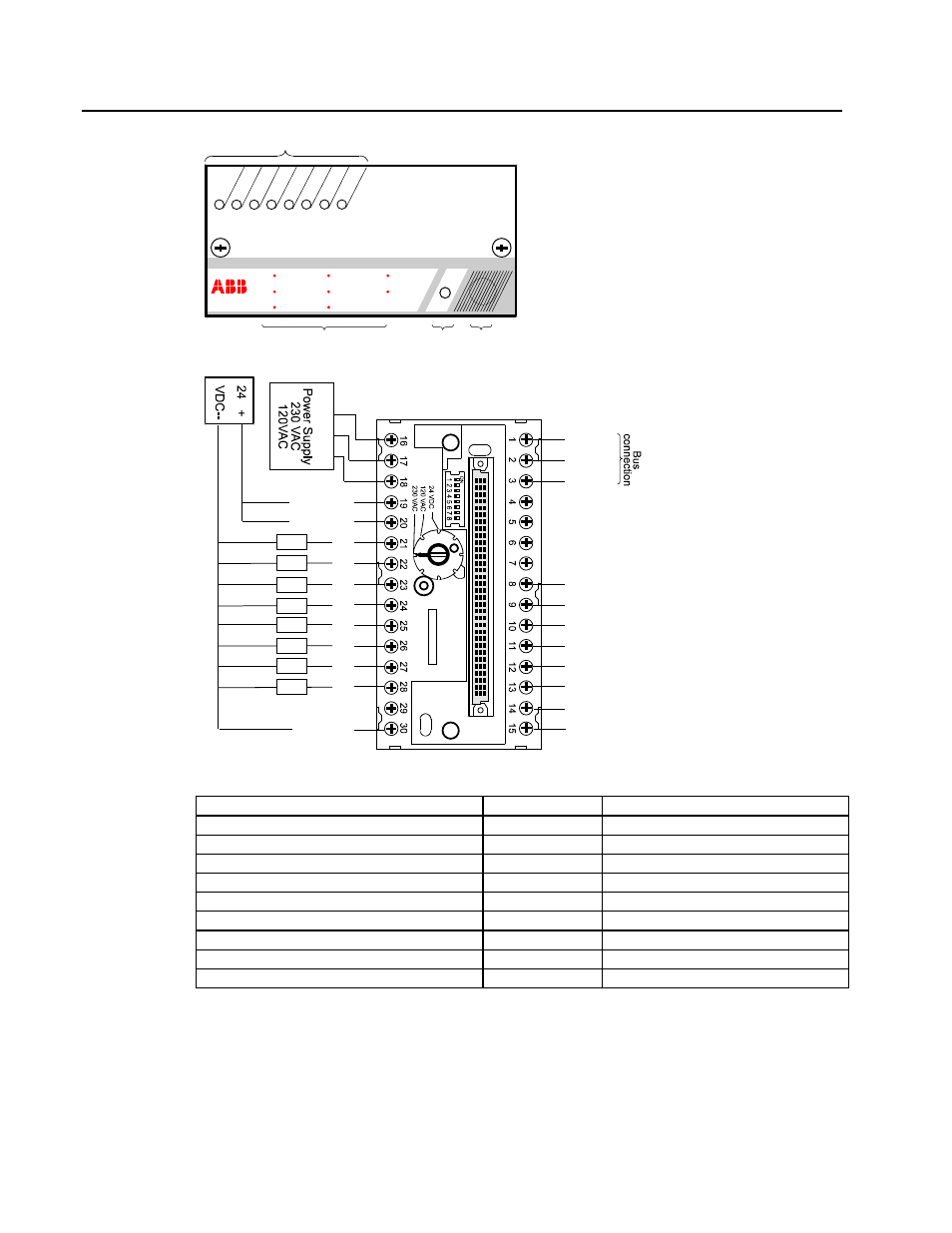

ELECTRICAL CONNECTIONS
3 2 4
ICSO08Y1 120 VAC
I/O REMOTE UNIT ABB Procontic CS 31
Unit error
Bus error TEST
0
1
2
3
4
5
6
7
1 2 3
1
4 5 6 7 0
Unit error
Overload
Short circuit
Shield
Bus # 1
Bus # 2
A
Common +
Common +
B
C
D
E
F
G
Common -
A
B
C
H
Load
H
G
Load
Load
Load
Load
Load
Load
Load
F
E
D
L1
N
PE
Technical Characteristics:
Power supply 24 VDC 230 or 120 VAC 50 or 60 Hz
Number of outputs per unit 8 8
Power supply isolation no yes (1500 VAC)
Outputs isolated yes(1500VAC) yes(1500VAC)
Maximum current 2 A AC1 2 A AC1
Total current for 8 outputs 8 A 8 A
Short circuit protection per output yes yes
Overload circuit protection per output yes yes
Maximum power consumption 0.2 A 6VA
Maximum power dissipation 6 W 8 W
28
