Remote I/O Modules
MECHANICAL INSTALLATION
2.2 UNPACKING
Unpack and visually inspect modules. Save packing materials for any reshipment, or to
support any claim of shipment damage. All damage claims are made against the carrier and
are the responsibility of the customer.
The ambient temperature for any equipment must be kept between:
• Storage: –40 to +75°C (–40 to 167°F)
• Transport: –25 to +75°C (–13 to 167°F)
2.4 MOUNTING
The plug-in base, Figure 2-1, is used to mount digital modules, Figure 2-2.
Dimensions
mm inches
W 123 4.84
H 64 2.52
D 115 4.53
Weight: 0.20 kg (0.44 lb.)
Mounting:
Din Rail: 35 mm
Screw: screws 04 mm (M4)

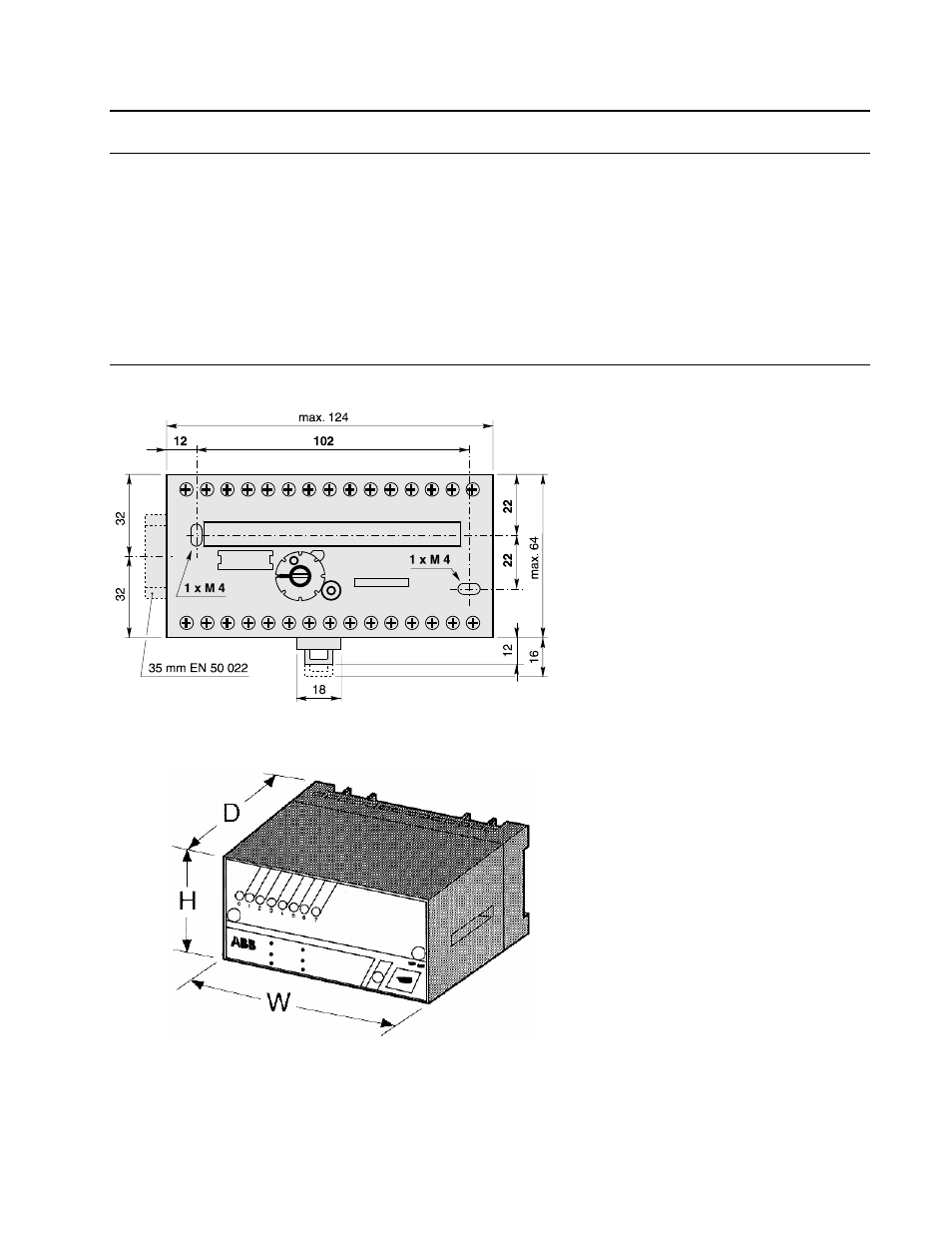

Figure 2-1. Mounting Dimensions, ECZ Base
Dimensions
mm inches
W 120 4.72
W (with base) 123 4.84
H 60 2.36
H (with base) 64
2.52
D 115 4.53
Weight 24Vdc Modules with base:
0.45 kg (1 lb.)
Weight 120/230Vac Modules with
base:
0.63 kg (1.39 lb.)
Figure 2-2. Mounting Dimensions,
Remote I/O Module and ECZ Base
7
