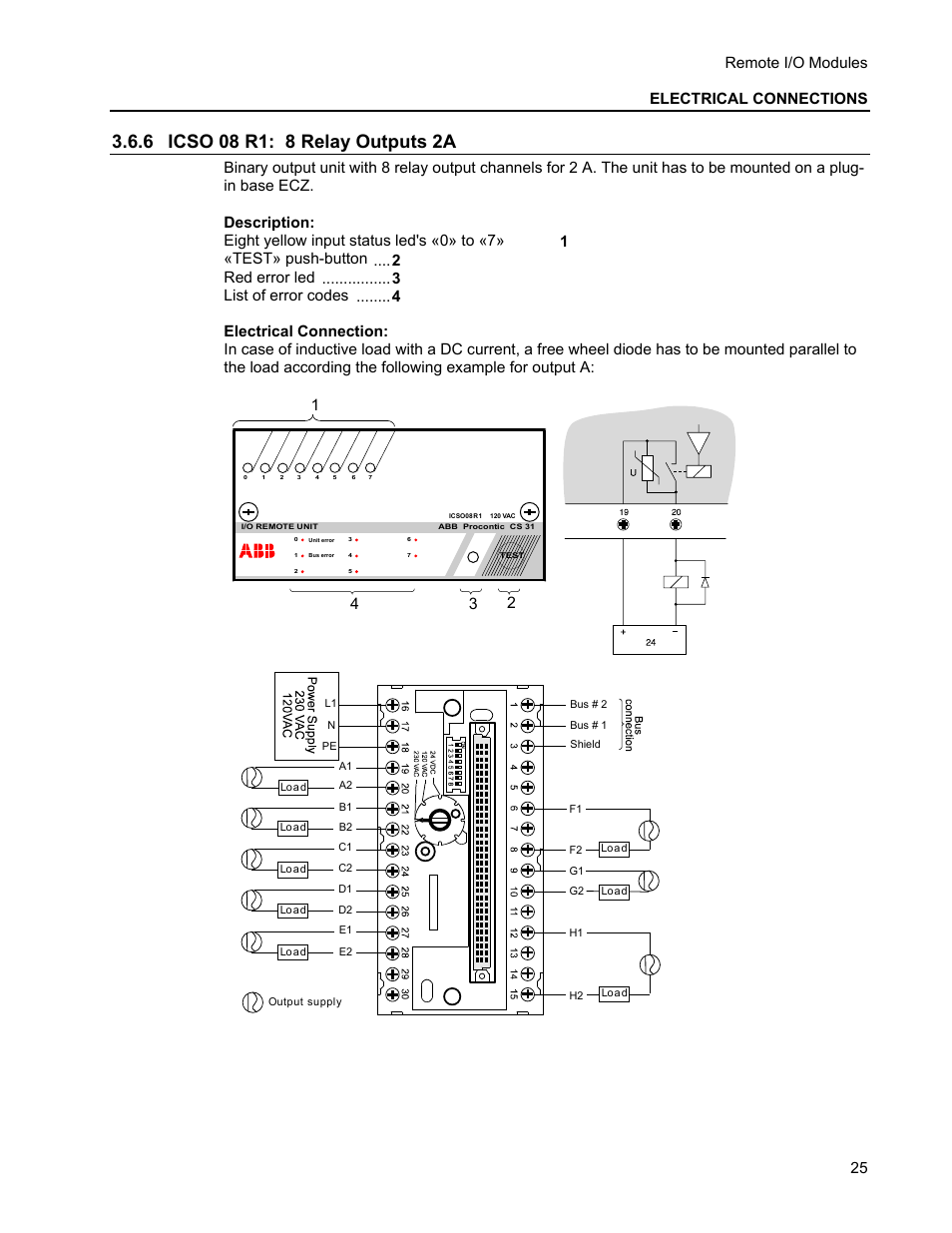

6 icso 08 r1: 8 relay outputs 2a, Remote i/o modules electrical connections – Micromod MOD: Remote I/O Modules for use with 2020N Remote I/O Interface Module User Manual
Page 29
