53ML5100B Manual Loader

INSTRUCTION MANUAL

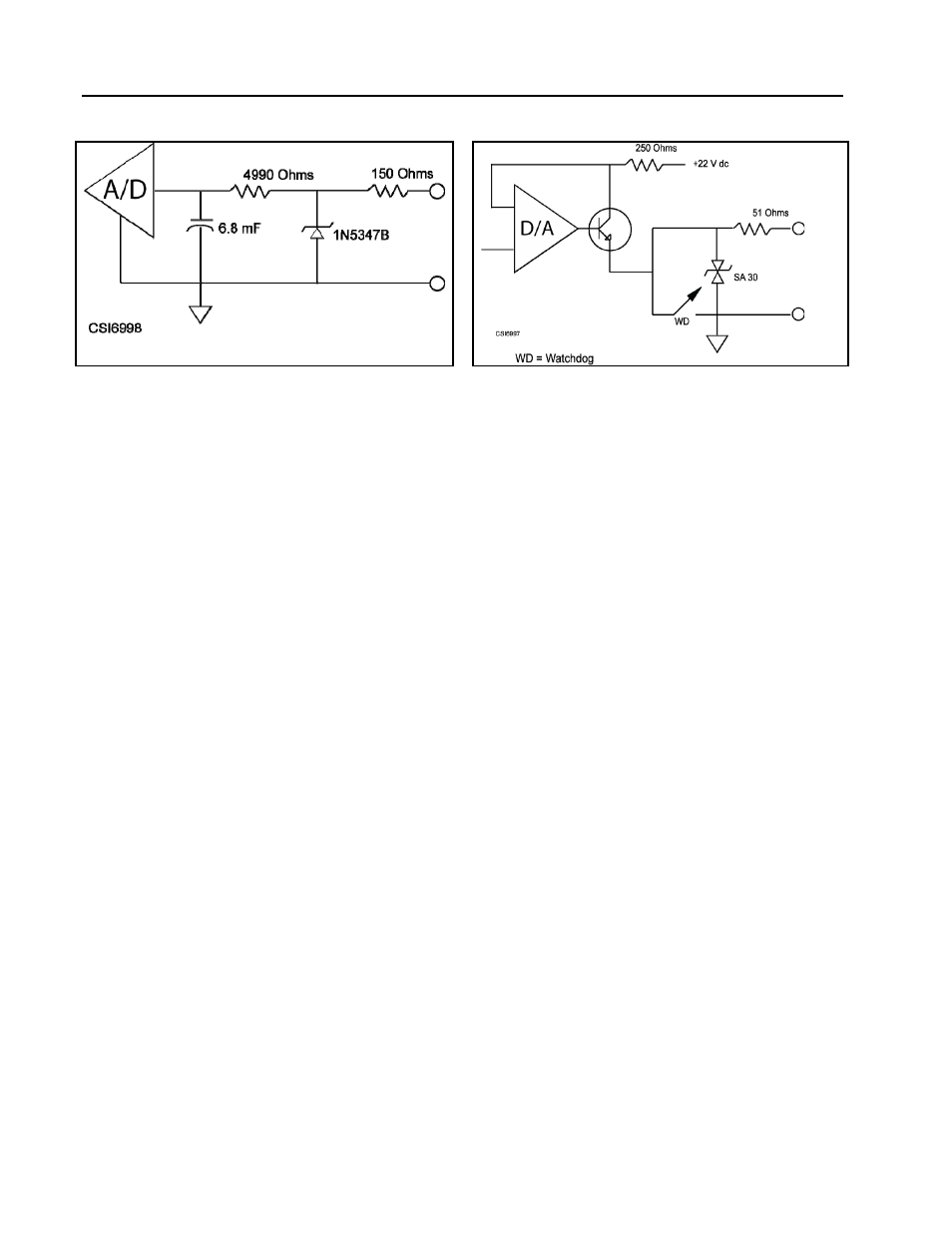

Figure 4-1. ANI0 & ANI1

Figure 4-2. ANO0 & ANO1


NOTE: These figures are graphical representations of the signal conditioning that occurs on the

instrument main board. They are provided for reference purposes only.

32
