53ML5100B Manual Loader
INSTRUCTION MANUAL
3.3.2 Displaying a Datapoint
The following procedure illustrates how to display the contents of datapoint C175, which is ANI2 Alarm Limit
1. Figure 3-9 contains supporting illustrations for the display procedure described in Table 3-2.
Table 3-2. Procedure to Display a Datapoint
Step Press
Once
Shift
Result
Press to
Locate
Target
Char.
Result
1  Puts instrument in engineering mode.
2 If DISPLAY does not appear, press F2.
3 F3 Displays entry line: POINT
4

C Puts B on entry line: POINT .B.
5

.CΔ  1
Shifts B and puts 1 on entry line:
POINT .B1.
6

.C1Δ  7
Shifts B1 and puts 2 on entry line:
POINT .B12.
7 F3
Enters address to display datapoint contents.
The address with the contents are displayed as
follows: B12 4
8  Returns instrument to operator mode.

NOTE: Δ indicates Space. Also, B12 can be entered for B012, as datapoints 99 or less for all of the
data types (e.g., A, B, C, H, and L - see Table 4-1) do not require leading zeros.

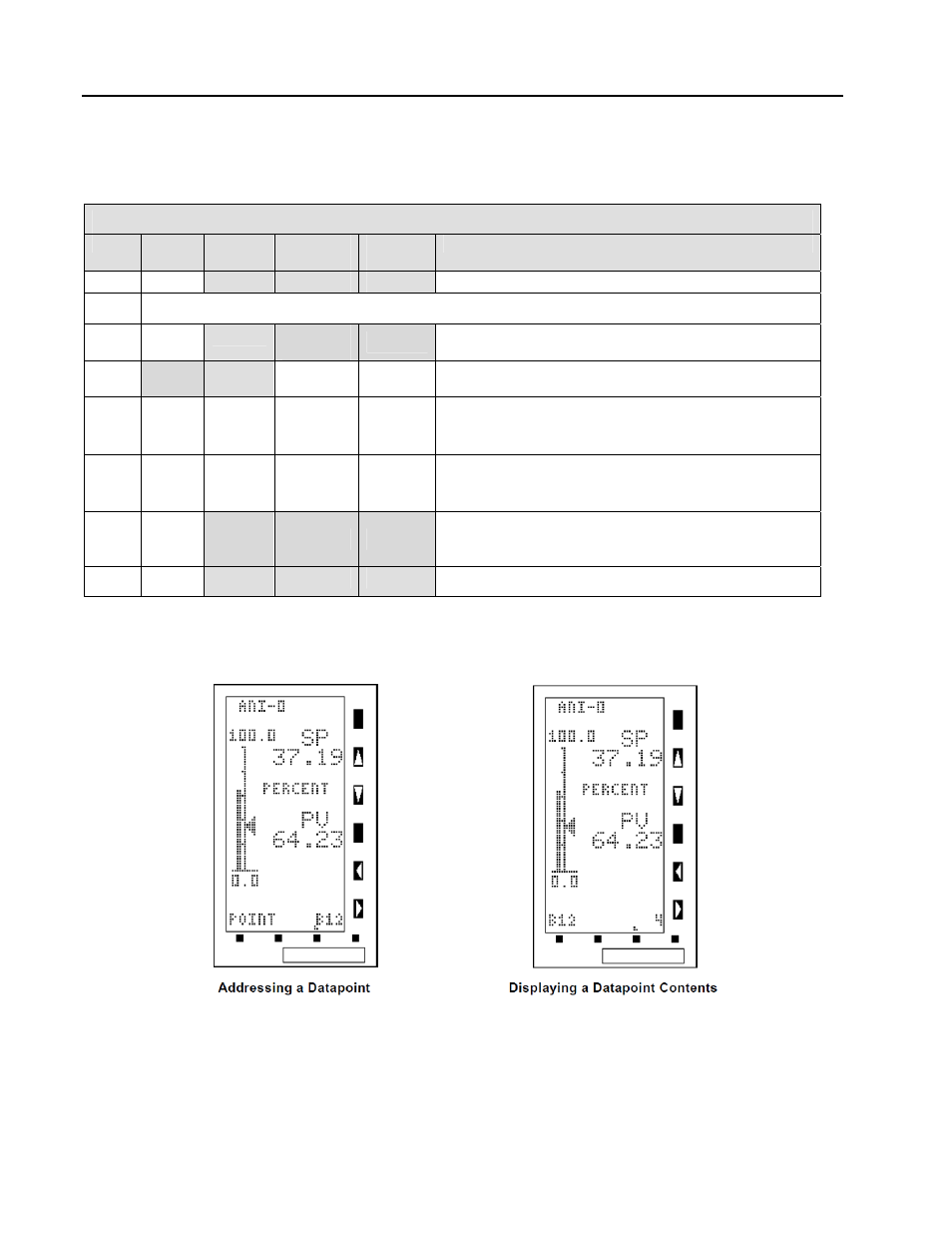

Figure 3-9. Displaying a Datapoint
26
