121-000-350 © 2001 Max Machinery, Inc. Pg 47
ENTER
STOP
ENTER
STOP

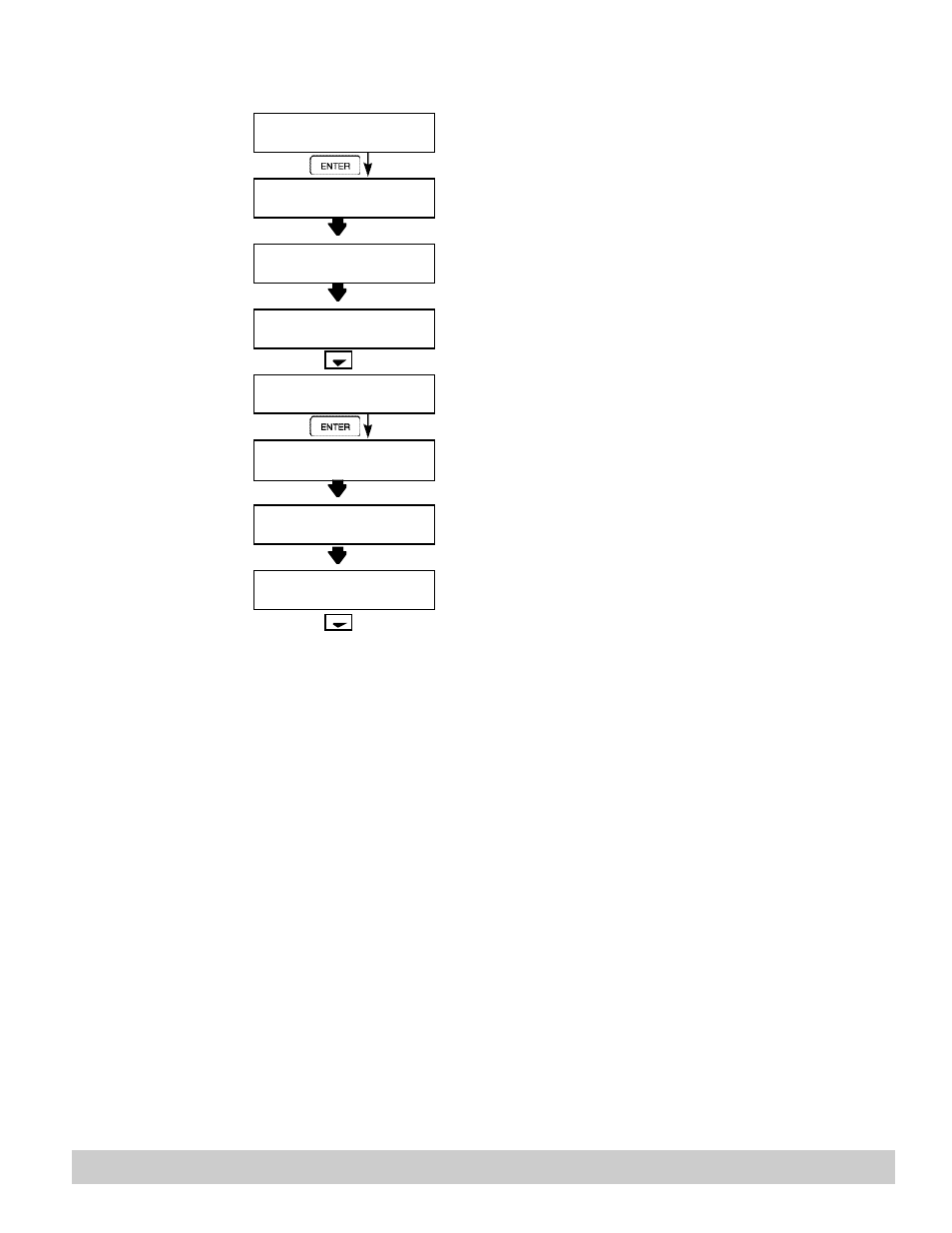

8.2.8
Calibrate CH2 0mA
Submenu Group
8.2.9
Calibrate CH2 20mA
Submenu Group
Calibrate ch2 0mA
Iin=TB1-8 GND=TB1-4
Calibrate ch2 0mA
0 CALIBRATING ——
Calibrate ch2 0mA
*** DONE ***
Calibrate ch2 0mA
Iin=TB1-8 GND=TB1-4
Calibrate ch2 20mA
Iin=TB1-8 GND=TB1-4
Calibrate ch2 20mA
0 CALIBRATING ——
Calibrate ch2 20mA
*** DONE ***
Calibrate ch2 20mA
Iin=TB1-8 GND=TB1-4
Advance to
Calibrate ch1 0V
To Calibrate: Connect Current Source (+) TB1-8, (-) TB1-4.
Input 0mA and press Enter.
This message is displayed during calibration.
This message is displayed when the 0mA calibration is fin-
ished.
The display will automatically return to the Calibrate CH2
0mA submenu. Press the Down arrow key to advance to the
CH2 20mA calibration.
To Calibrate: Connect Current Source (+) TB1-8, (-) TB1-4.
Input 20mA and press Enter.
This message is displayed during calibration.
This message is displayed when the 20mA calibration is fin-
ished.
The display will automatically return to the Calibrate CH2
20mA submenu. Press the Down arrow key to advance to
the CH1 0V calibration.
