Max Machinery 121 INDICATOR - Manual (Page 24)

ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
Pg 24 121-000-350 © 2001 Max Machinery, Inc.
6.4.3
SELECT
FLOW EQUATION
6.4.4
SETUP
INDICATORS
(Total)
6.4.5
SETUP
INDICATORS
(Density)

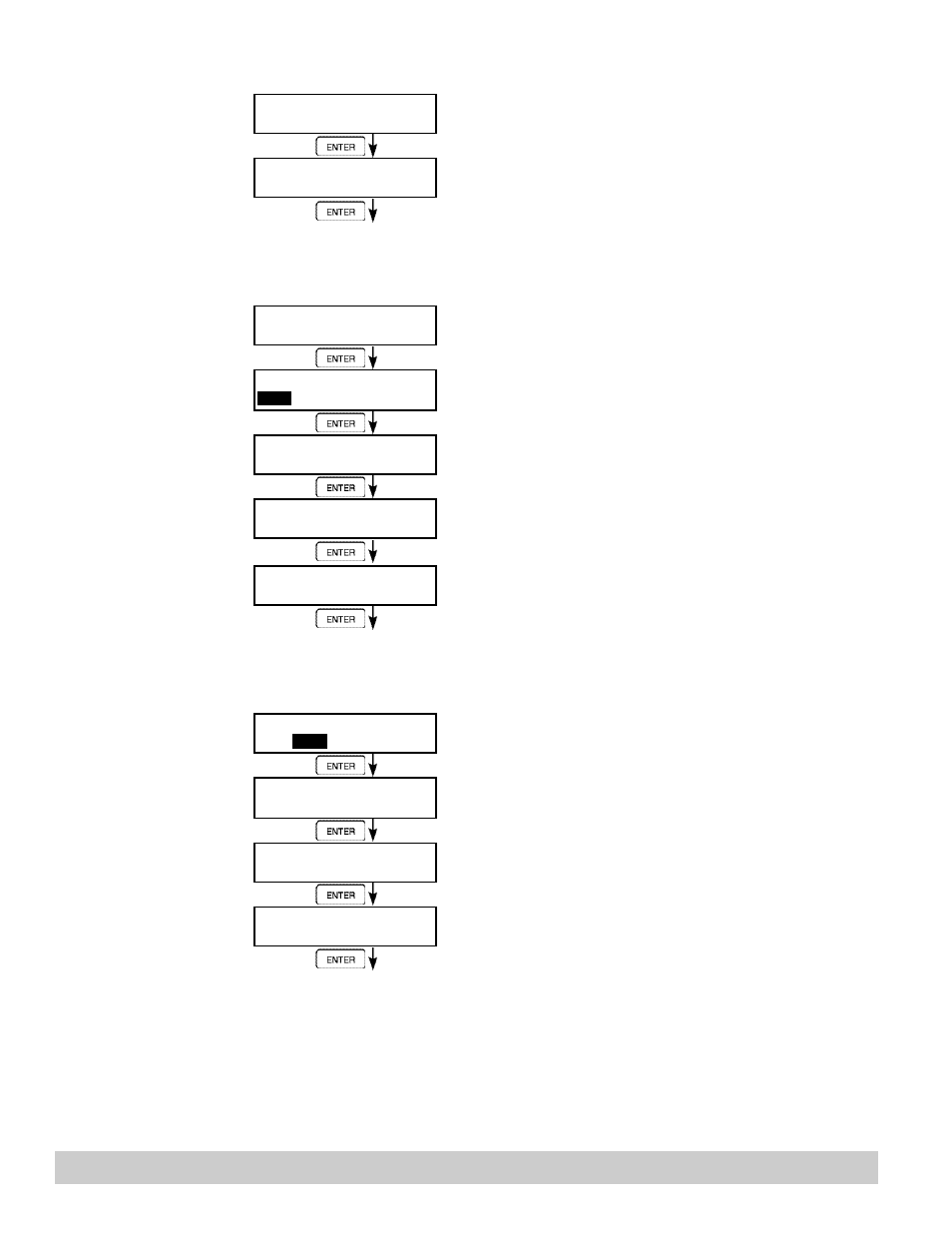

Press ENTER to enter Select Flow Equation sub-
menus.
Press ENTER when desired flow equation is
flashing.
Press ENTER to begin setup of the Indicators
Press ENTER when Total is flashing to configure
the Totalizer Indicators
Enter the desired Total Descriptor
Enter the desired Volume Units Label for the
Totalizer.
Select the desired Total Decimal Place.
0-3 decimal places allowed.
Press ENTER when Dens is flashing to configure
the Density Indicators.
Enter the desired Density Descriptor.
Enter the desired Mass Units Label for Density.
Select the desired Density Decimal Place.
0-3 decimal places allowed.
S E L E C T FLOW EQUAT I O N
S E L E C T FLOW EQUATION
Volume Mass Cor/Vol
Advance To
SETUP INDICATORS (Total)
SETUP INDICATORS
SETUP INDICATORS
Total Dens Rate Temp
TOTAL DESCRIPTOR
TOTAL
TOTAL VOLUME UNITS
gal
TOTAL DEC PLACES
0
Advance To
SETUP INDICATORS
(Density)
SETUP INDICATORS
Total
Dens Rate Temp
DENSITY DESCRIPTOR
DENS
DENSITY MASS UNITS
lbs
DENSITY DEC PLACES
0
Advance To
SETUP INDICATORS
(Rate)
