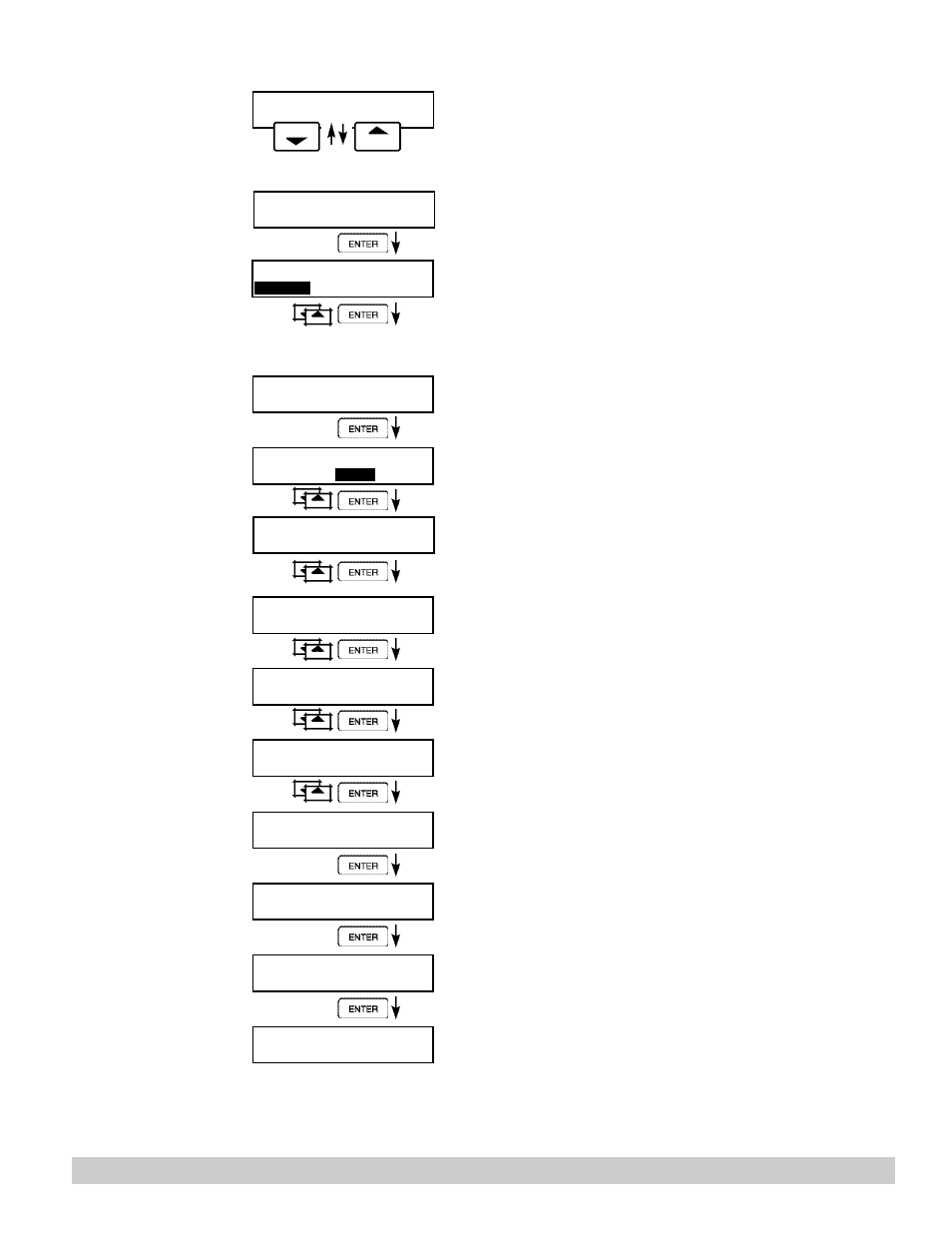

6.4.1
SELECT EZ
SETUP

6.4.2
INSTRUMENT
TYPE

Rate/Tot

Batch

SELECT EZ SETUP

Advance To

INSTRUMENT TYPE

Rate/Tot

Batch

Advance To
SELECT FLOW EQUATION

INSTRUMENT TYPE

INSTRUMENT TYPE
Rate/Tot

Batch

BATCH COUNT MODE
Up Down

MAXIMUM BATCH PRESET

1000.0 gal

BATCH OVERRUN COMP

Off On

AUTO BATCH RESTART

Off On

TIME DELAY (1-99sec)

FLOW SIGNAL TIMEOUT

MAXIMUM DRAIN TIME

SLOW START QUANTITY

Advance To
SELECT FLOW EQUATION

Refer to page 21 for EZ Setup routine.

Press the DOWN (stop) key to advance to
Instrument Type. Press the UP (start) key to
advance to Administrative Setup.

Press ENTER to enter Instrument Type sub-
menus.

Press ENTER when Rate/Total is flashing to
configure the instrument as a
Ratemeter/Totalizer.

If Rate/Tot selected, advance to Select Flow
Equation.

Press ENTER to enter Instrument Type sub-
menus.

Press ENTER when Batch is flashing to config-
ure the instrument as a Batcher.

Select UP to Reset to 0 and count up to preset.
Select DOWN to reset to Preset and count
down to 0.

Enter the maximum allowable Batch Preset. The
operator will not be able to enter a batch preset
larger than this value.

Select ON to set the unit to operate using a
Batch Overrun Compensation routine.
Select OFF to inhibit Batch Overrun
Compensation routine. (See Section 5.4)

Select On to enable the Auto Batch Restart.
This will automatically restart the unit at the end
of each batch run. Select Off if this is not desir-
able.

Enter Time Delay for Auto Batch Restart. When
a batch is completed, the next batch will start
after the amount of time entered here.

Enter a timeout of 0 to 99 seconds. If a batch is
“Filling” and zero flow persists for more than this
time, the batch will be aborted.

Enter time (0-99 sec.) for Max. Drain Time. After
batch quantity is reached, “Batch Done” is
declared when the flow rate is “0” or the
Maximum Drain Time has expired.

Enter a quantity for a Slow Start up. RLY 2
(slow flow) will energize for Slow Start and RLY
1 (fast flow) will energize after the Slow Start
Quantity has been delivered.
