MAP Technology

Luminex 100E Analyzer Overview

PN 89-00002-00-013 Rev. D

3 - 7

The 24 volt power supply should not be capable of delivering, under
any load condition including short circuit, 8 amps after one minute of
operation.

The 15 volt, negative 15 volt, and 6 volt, and 5.4 volt power supplies
should not be capable of delivering, under any load condition
including short circuit, 150 VA per supply after one minute of
operation.

P1 Communications

Port (DB9-PIN)

The P1 Communications Port is a custom USB port that is the main
communications interface for two-way communication between the
Luminex 100E analyzer and the host computing and control system.
A custom DB9-to-USB cable is provided.

1.

P1 9-pin Communications Port

2.

P2 15-pin Synchronization Port

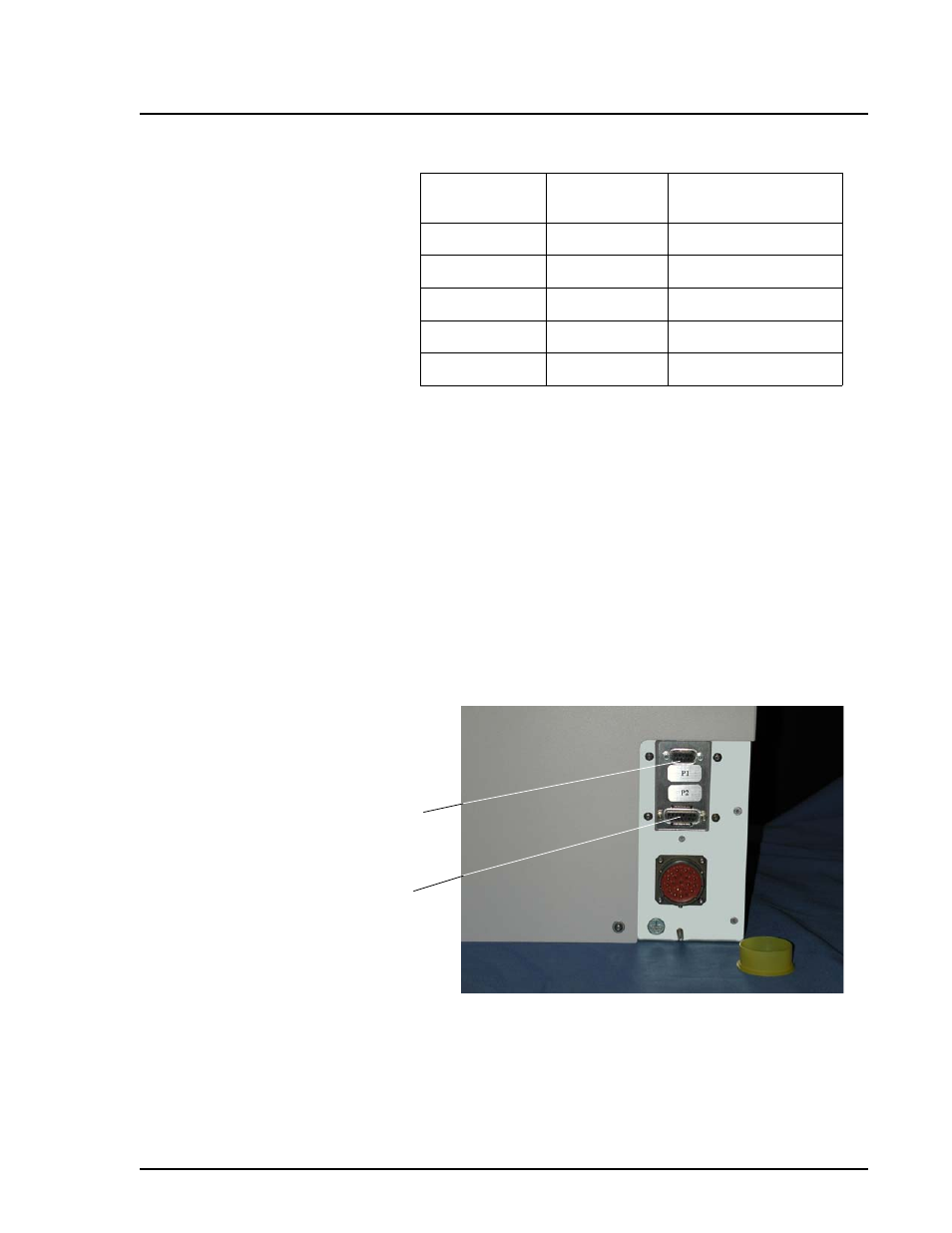

Figure 8. Communication Ports

Supply voltage
(V)

Noise (mVpp)

Maximum Current
(Amps)

+6.0 ±2%

60

1

+ 5.4

220

10

+24.0 ±2%

240

2

+15.0 ±3%

150

1

-15.0 ±3%

150

0.5

1

2
