MAGNUM VENUS PLASTECH
Innovator Megaject Manual
44
If catalyst appears to weep back to the catalyst bottle during injection mode then
the internal spool O rings (6004) need replacing.
If catalyst is observed to weep from the injection nozzle during recirculation mode
then the small front O ring (6079) needs replacing.

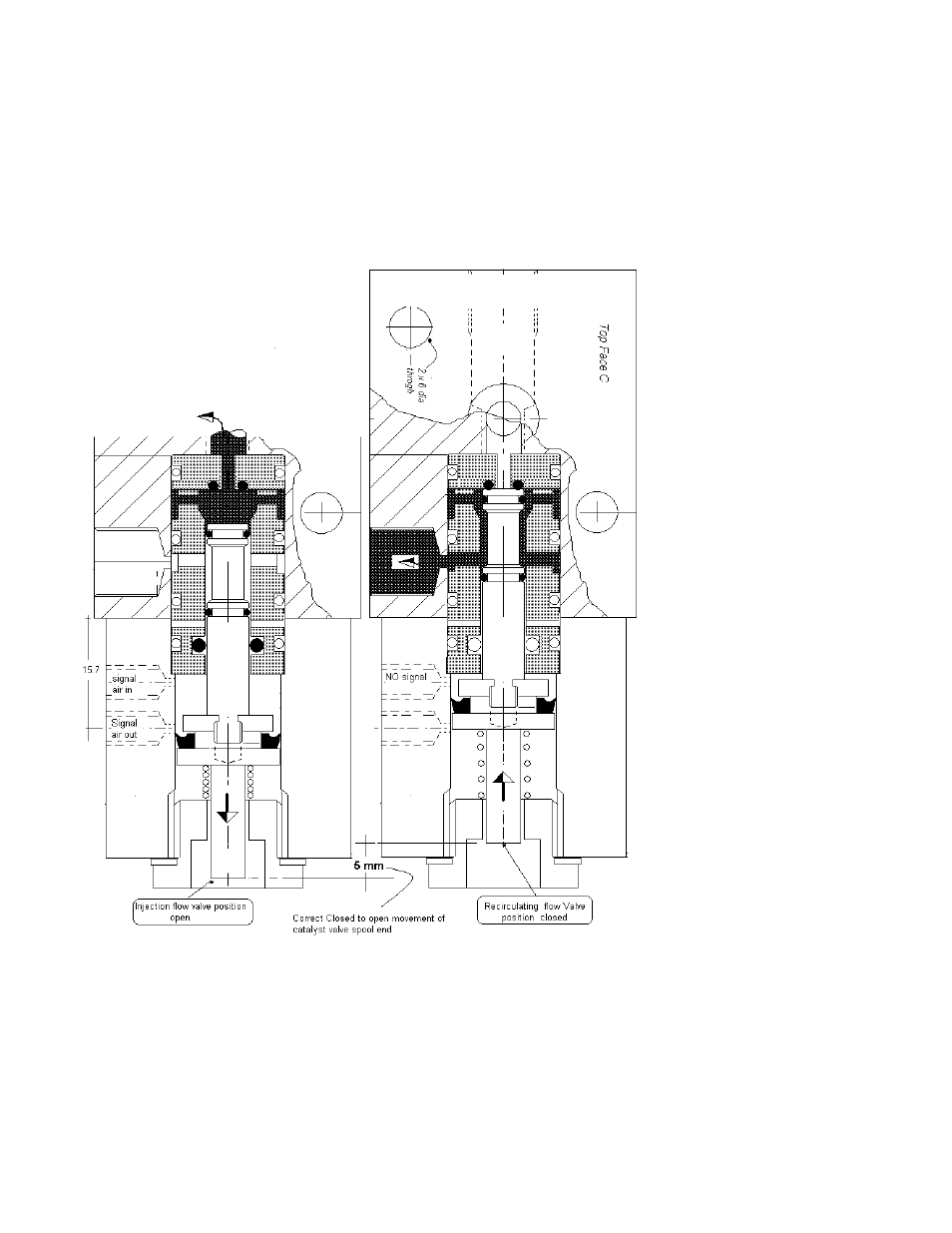

Illustration of Catalyst
Auto valve cross
section showing
catalyst flow and
correct position of air
actuator for
A. injection flow
And
B. recirculation flow
A. Injection
B. Recirculation
