MAGNUM VENUS PLASTECH Innovator Megaject Manual 18
Locate the control circuit air pressure regulator (see section 5) and ensure that it
is adjusted to 6 bar (0.6 MPa) (ensure the slide valve is in the “ON” position). The
gauge is marked in Mega Pascal’s (MPa), where 1MPa = 10 bar = 145PSI.
Therefore the gauge should read 0.6.
NOTE: Exceeding the upper pressure or use of lubricated air could cause
permanent damage to the controls.
NOTE: When the isolation valve (sleeve valve) is in the off position, it is
possible that residual air pressures may still remain in the system.
Overview of controls

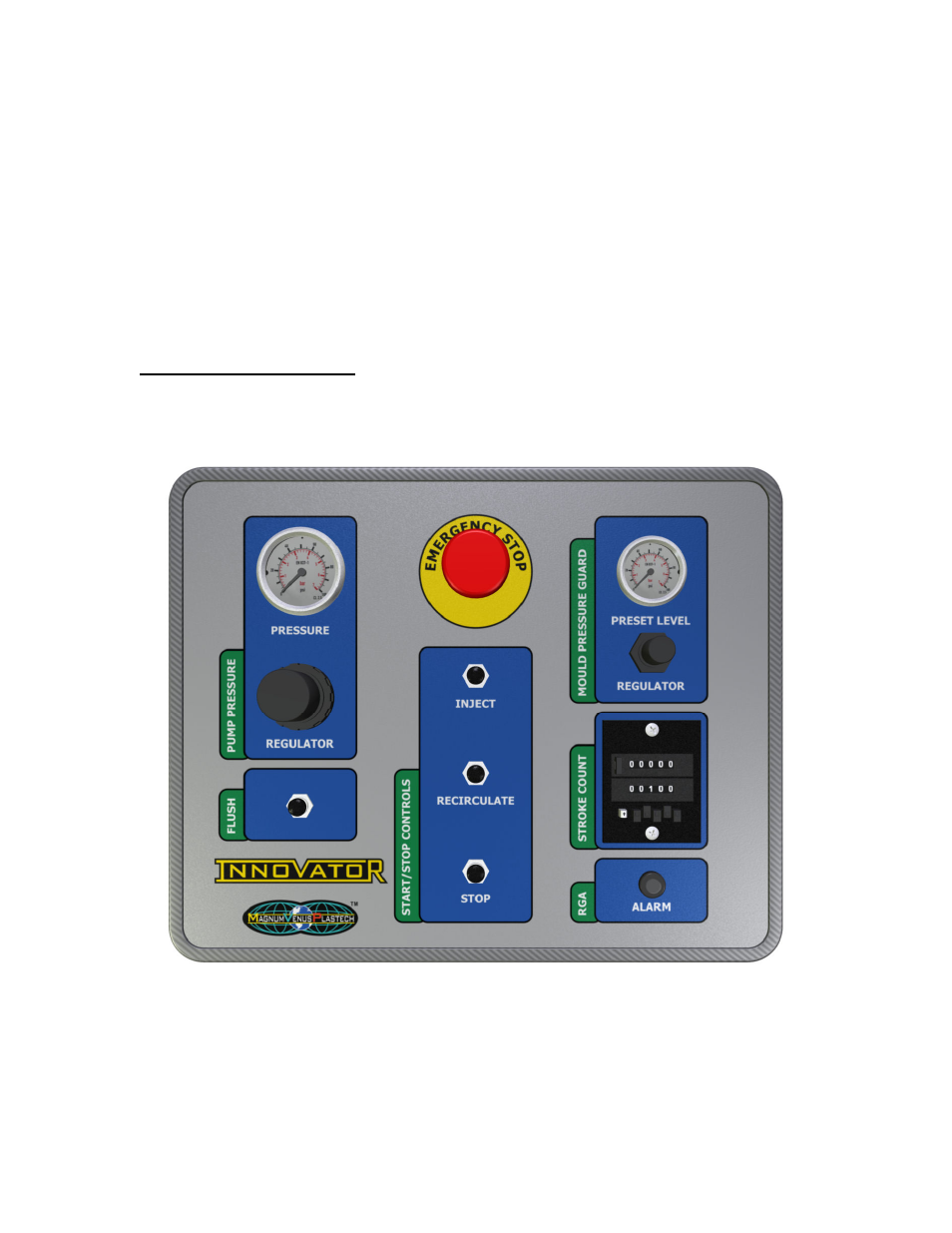

The Innovator control panel is shown in figure 2.1. Controls have been grouped
based upon function, to make the system as user friendly as possible.
Figure 2.1 – Innovator control panel
A brief overview of controls is as follows:
• Emergency Stop – Press this button in the event of an emergency to
place the system in a safe state. Twist and pull to release and allow
machine operation.
