Control box user connections:
The rear of the control box, shown in figure 4.1, features the following connections:
• 4 air supplies – These can be used to supply machine options.
• Pump run signal – This signal is pressurized when the pump receives a
run signal. It can be used to control items such as resin heaters.

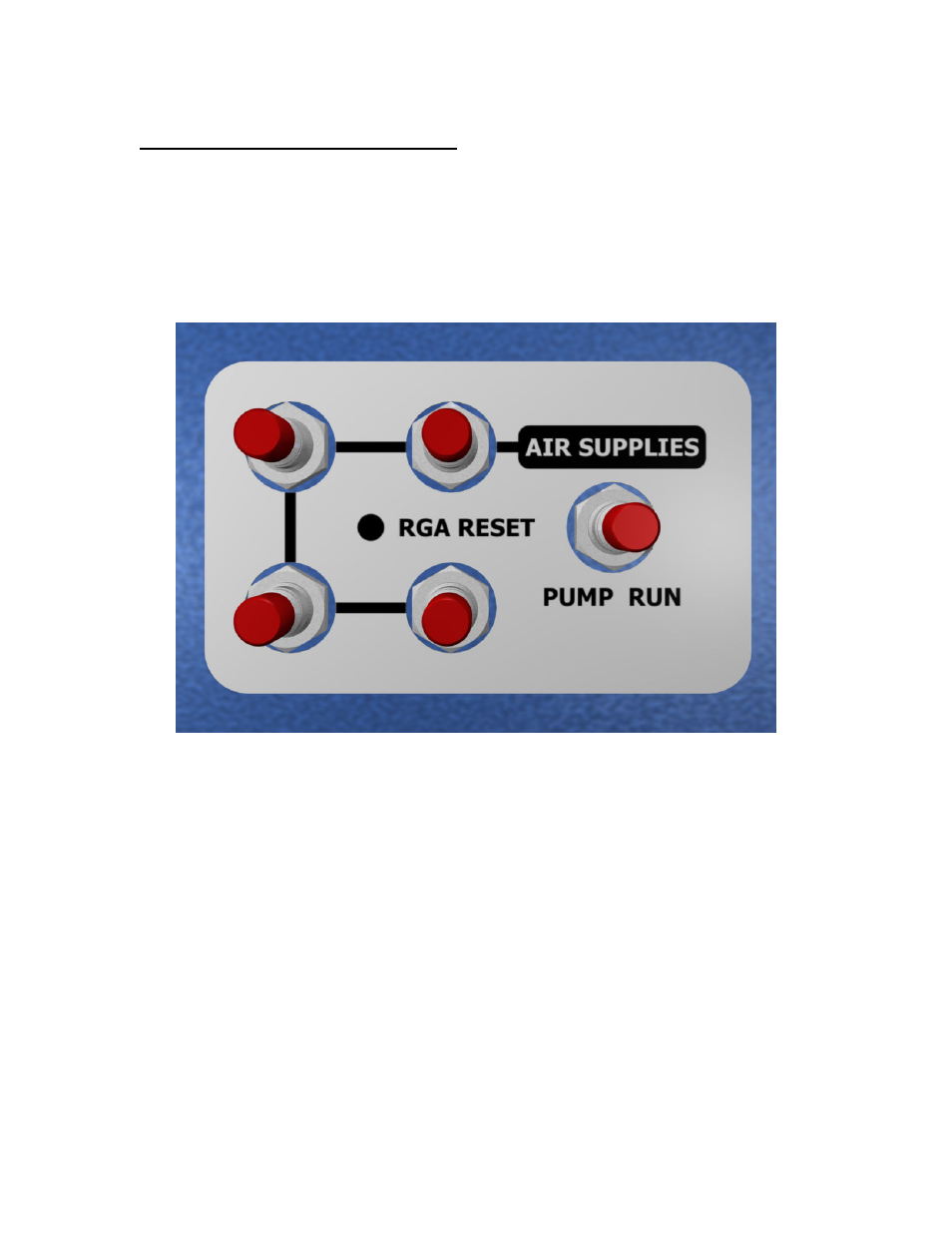

Figure 4.1 – Rear of control box
Signal connections are also supplied to the side of the control enclosure and are
illustrated in figure 4.2. The connections are as follows:
• Turbo Autosprue (TAS) – Use this to connect a TAS (or similar) valve to the
machine. The pilot signal will become pressurized when inject mode is active.
• PPVS Connector – Connect a pneumatic PV sensor (PPVS) here to
automatically control the system during an injection. The user can also
connect a “hold” or “pause” signal to the machine if required. When this
signal is leaked in injection mode, the machines pump will stop running.
When the signal is blocked, or no connection is made the pump will run.
• Stop – Connect a remote stop signal here. This function works similarly to
the stop button on the control panel and will stop the machine in inject or
recirculation modes when air is applied.
