Innovator Megaject
CONTROL BOX INSTRUCTIONS
Connecting the system to an air supply
The machine is supplied with a 5 micron filter and should be connected to an un-
lubricated air supply. Ensure the maximum inlet air pressure marked on the filter
is not exceeded (1Mpa = 10 bar = 145PSI).
A pressure regulator for the air circuit is mounted inside the control box. This
should be adjusted so that the controls are supplied with a pressure of
approximately 6 bar (87 PSI=0.6MPa). The regulator will be set to 6 bar at the
factory prior to shipping.
A sleeve valve, shown in figure 1.1 is provided on the rear of the enclosure so
that air may be isolated from the control box. Air should be removed from the
machine when it is not in use, by sliding the isolation valve sleeve away from the
control box.

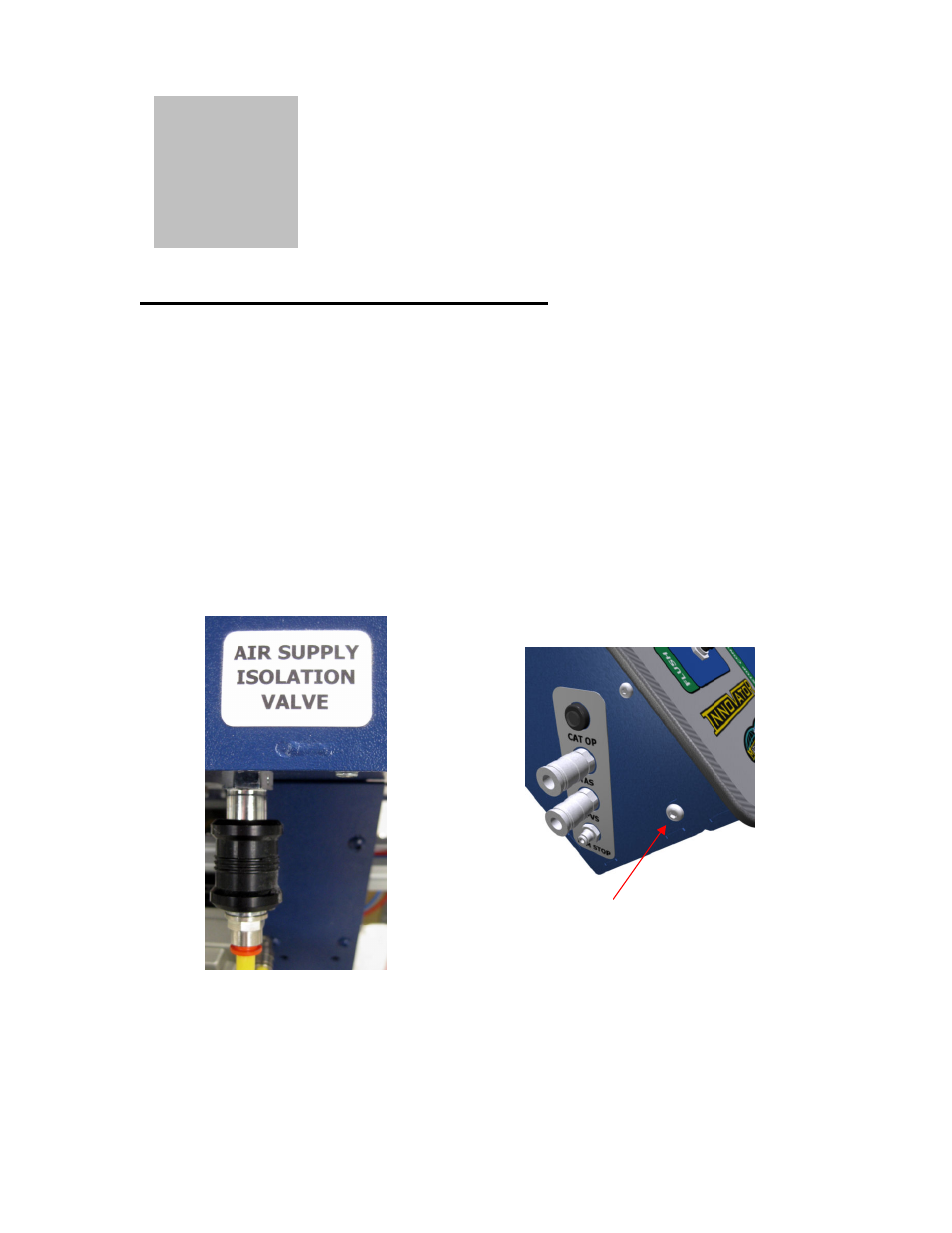

Figure 1.1 – Air isolation valve Figure 1.2 – Lid securing bolts
In order to check that the control circuit air pressure is set correctly; open the lid
of the control box to access the regulator (with fitted gauge) by removing the two
lid securing bolts. A single bolt is positioned on each side of the control box; this
is illustrated in figure 1.2. The lid is hinged and can then be lifted upwards.
Remove bolt from each side
to open lid.
