HML4-F1

9

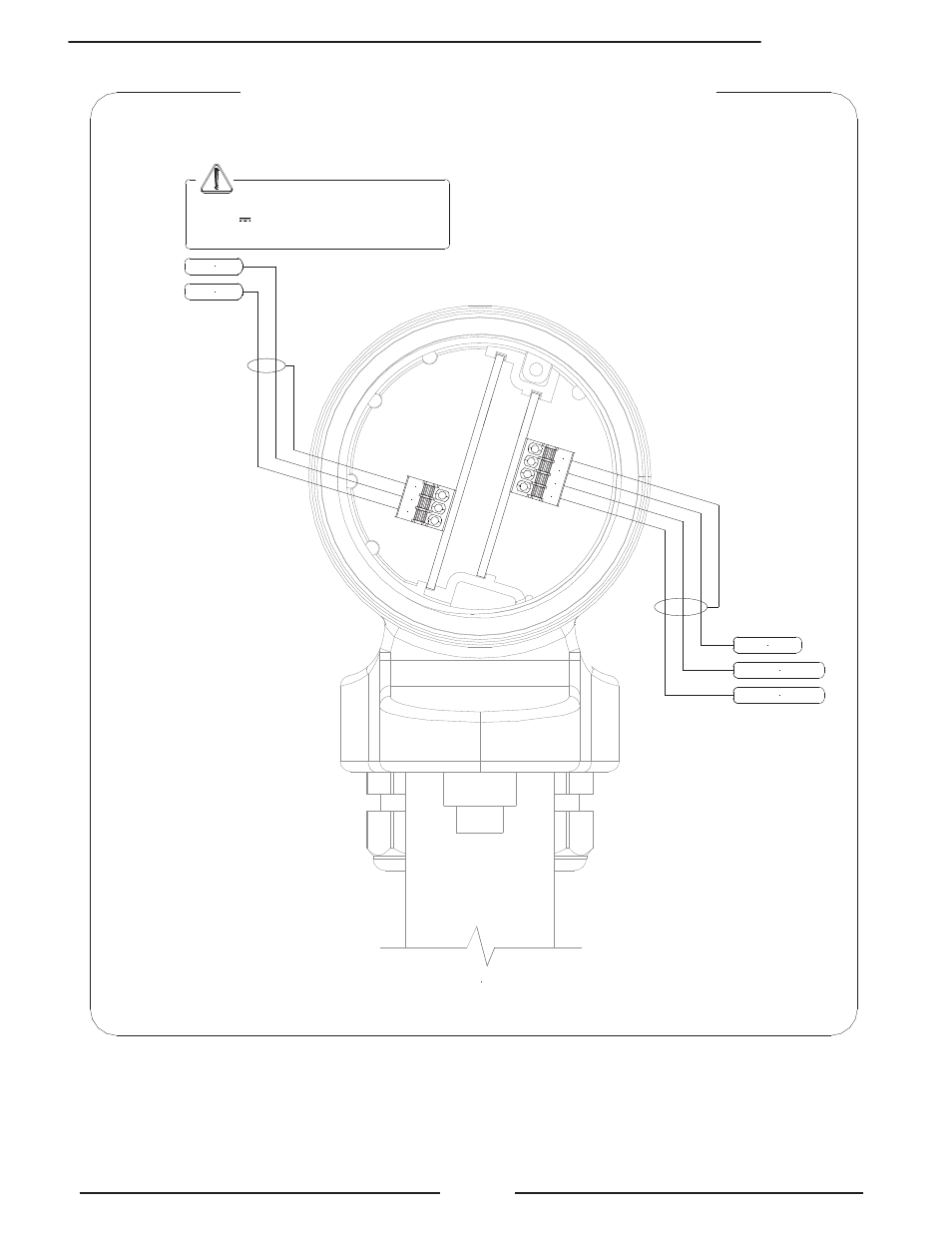

CABLES FROM SENSOR

13

12

11

1

2

3

4

COMMON

ELECTRODE 2

ELECTRODE 1

COIL 1

COIL 2














































SENSOR CABLES

Dangers voltage:
- 60V max
- 250V max commutation coils circuit
