HML4-F1

14

T

T

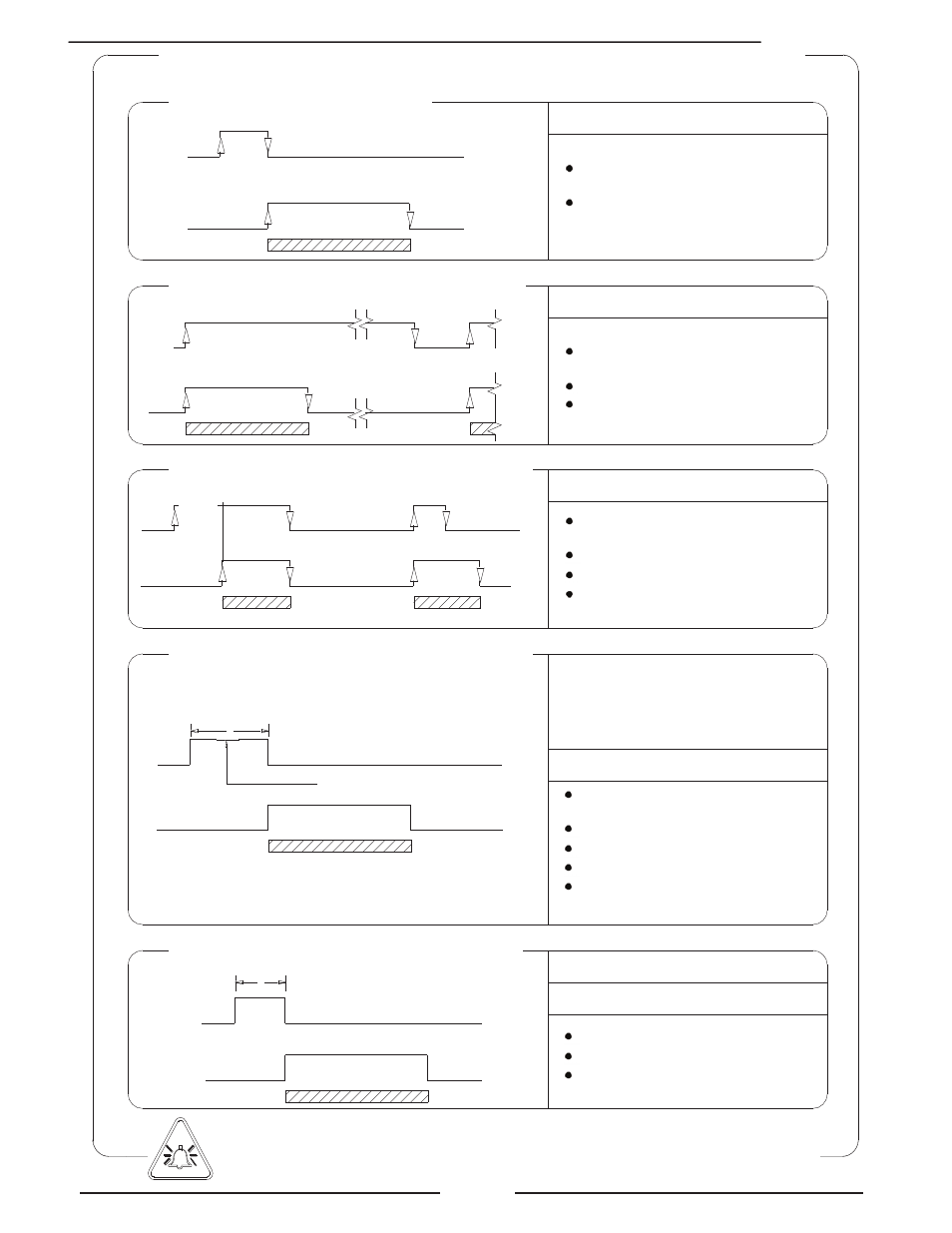

OPERATION STAGE ON INPUT 1 OR 2 OR 3 (BATCH FUNCTION)



































Start batch from remote input

Start batch from consent (remote)

Start batch from remote input with auto-

batch enabled

POS. 5.7 ENABLE or POS. 5.8 or 5.9 on
batch

POS. 6.1-4 on end batch

Start batch from remote input with

automatic selection of formula 00/03

N.B.: THE ACTIVATION OF BATCH FUNCTIONS ON INPUT 2

PREVENTS THE ACTIVATION OF BATCH FUNCTIONS ON INPUT 1

Necessary conditions for enable the function

Necessary conditions for enable the function

POS. 5.7 ENABLE or POS. 5.8 or 5.9 on
batch

POS. 6.1-4 on end batch

POS. 9.7 (CONSENT MODE) ENABLED

POS. 5.7 ENABLE or POS. 5.8 or 5.9 on
batch

POS. 6.1-4 on end batch

POS. 9.5 (auto-batch) ENABLED

POS. 9.7 (consent mode) DISABLED

Necessary conditions for enable the function

T= 100ms ±50ms for select the formula 00
T= 200ms ±50ms for select the formula 01
T= 300ms ±50ms for select the formula 02
T= 400ms ±50ms for select the formula 03
In case of stop batch from remote input the
time of input pulse must be > 50ms

POS. 5.7 ENABLE or POS. 5.8 or 5.9 on
batch

POS. 6.1-2 on end batch

POS. 9.6 (BM auto sel) ENABLED

POS. 9.7 (consent mode) DISABLED

POS. 5.8-9 functions assigned to BM
SELECT

Necessary conditions for enable the function

Start batch from remote input 1 reset p+

enabled on remote input 1

T BEETWEEN 1 E 4 = RESET TOTALIZER
T<1 = START E RESET TOTALIZER

Necessary conditions for enable the function

POS. 5.7 (batch on input 1) ENABLED

POS. 6.1-2 on AND BATCH

POS. 5.2 (reset T2) ENABLED

0-1.5 V

3-40 V

IN

P

U

T

O

U

T

P

U

T

Closing
valve

Opening
valve

BATCH

IN

P

U

T

O

U

T

P

U

T

0-1.5 V

3-40 V

Opening
valve

Opening
valve

Closing
valve

BATCH

3-40 V

0-1.5 V

5 Sec.

<5 Sec.

IN

P

U

T

O

U

T

P

U

T

Closing valve
quantity to batch
memorized

Opening
valve

Closing
valve

AUTO-BATCH

BATCH

3-40 V

0-1.5 V

Formula selection

Start

IN

P

U

T

O

U

T

P

U

T

Opening
valve

Closing
valve

BATCH

IN

P

U

T

O

U

T

P

U

T

3-40 V

0-1.5 V

Start

Opening
valve

Closing
valve

BATCH

Start
