Page 19

HML4-F1
19
* The maximum digits by from the totalizer is 999999999 independently from the number of
selected decimal. Beyond this value the totalizers are reset.

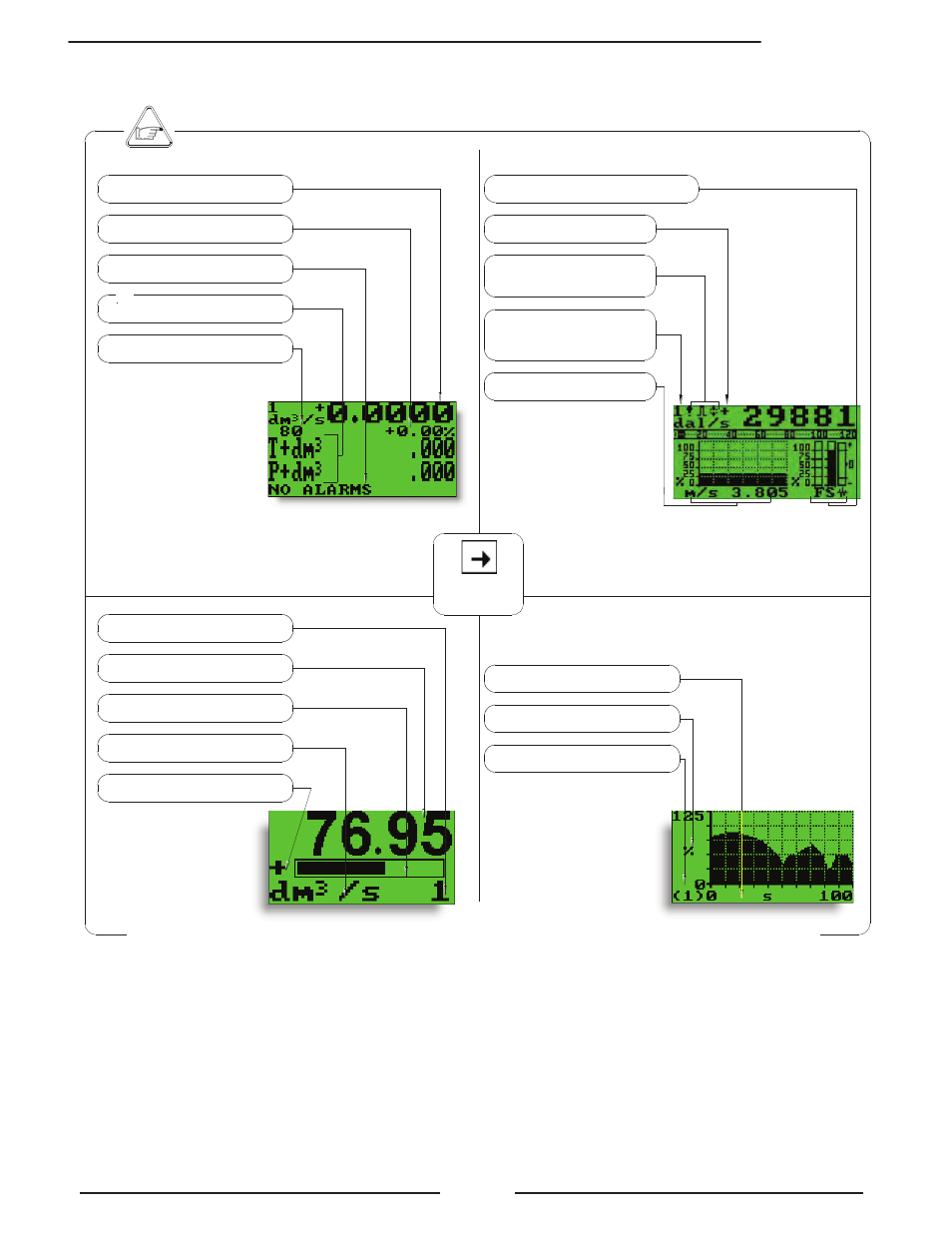

Flow rate value
% full scale
Date/time or alarm
Direct/reverse totalizer
Sampling rate
Three vertical bars
Flow direction +/-
reg.regolazione
See: anomalies codes and
flags interpretation
C=Calibration
S=Simulation
Flow speed
Scale (1=low); (2=high)
Flow rate value
% full scale
Measure units
Flow direction
Time scale
% full scale
Active scale
The three vertical bars represent the filters behaviors: first
bar, “F”, is the FAST filter, second bar, “S”, is the “SLOW”
filter and the third bar represents the variation of the new
measure samples respect to the averaged value. It can give
an indication about the total noise of the measure.
*
VISUALIZATION PAGES
Push to change
visualization
