HML4-F1
5
TECHNICAL CHARACTERISTICS
ENVIRONMENTAL USE CONDITIONS
AMBIENT TEMPERATURE
Data plate

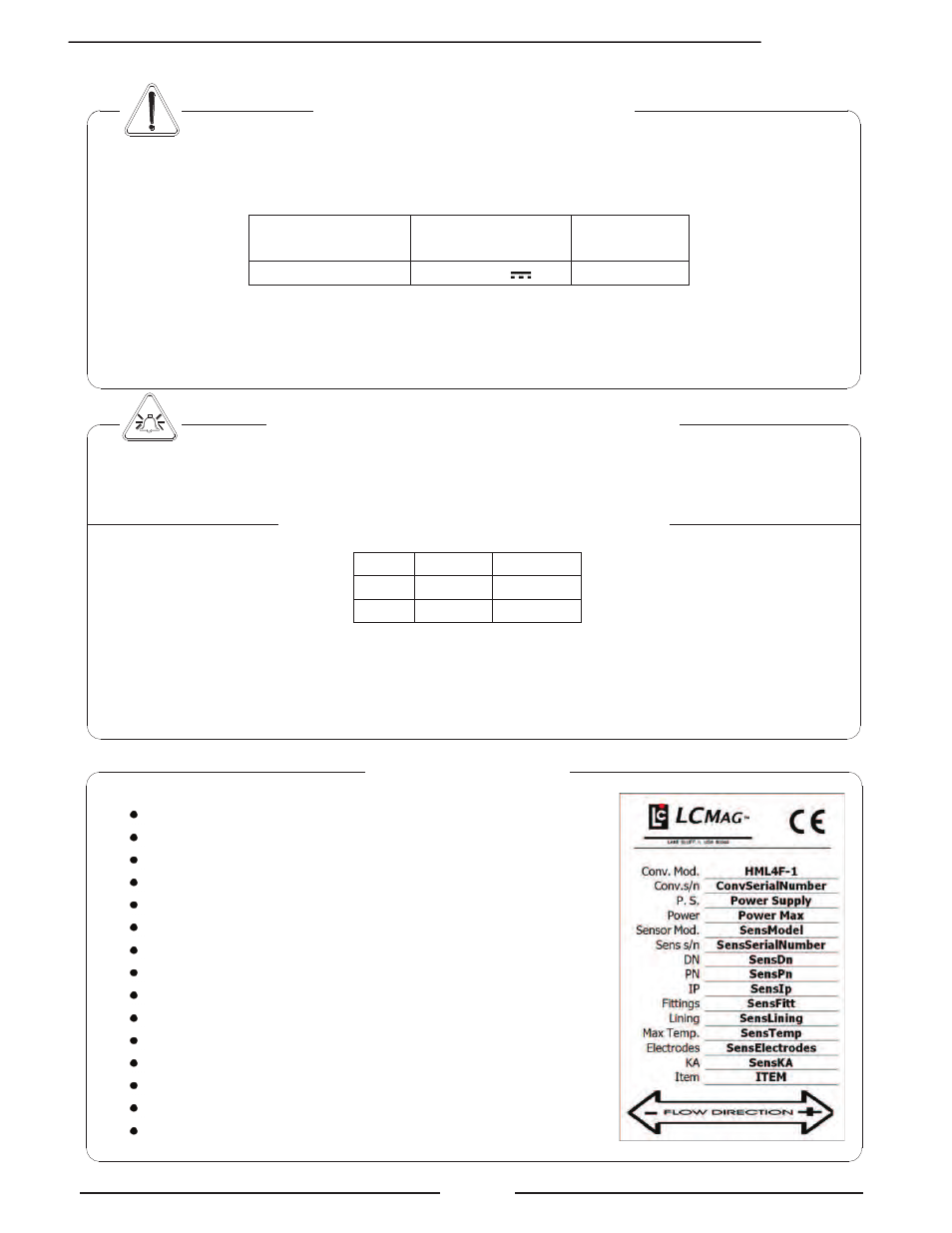

On the data plate there is some technical information:
Conv. Mod.: converter Model
Conv. s/n: converter Serial Number
P.S.: power supply
Power: maximum power consumption
Sensor Mod.: serial number of sensor coupled
Sens s/n: serial Number of the sensor
DN: sensor nominal diameter
PN: sensor nominal pressure
IP: Protection grade
Fittings: process connections
Lining: sensor lining
Max Temp: maximum sensor temperature
Electrodes: sensor electrodes
KA: sensor KA
ITEM: free for user
Min. * Max.
1
°C -20 60
°F -4 140
ELECTRICAL CHARACTERISTICS
Converter classification: class I, IP 67, installation category (overvoltage) II, rated
pollution degree 2.
Power supply
versions
Power supply
voltage
Max
power
LLV 18-30V 10W
‰ Voltage variations must not exceed ±10% of the nominal one.
‰ Input/output are insulated up to 500V
‰ The output 4-20 mA (optional) is electrically connected
‰ The converter can be installed inside or outside buildings
‰ Altitude: from –200 to 2000m (from -656 to 6560 feet)
‰ Humidity range: 0-100% (IP 67)
Consider the ambient temperatures more restrictive between converter and sensor.
* = For discontinuous use, the installation of a heating resistance is necessary.
1 = For liquid temperature > 60°C , ambient temperature max 40°C
130°C Cip (cleaning in place) is allowed up to 30’ (unlimited time if converter switch off)
