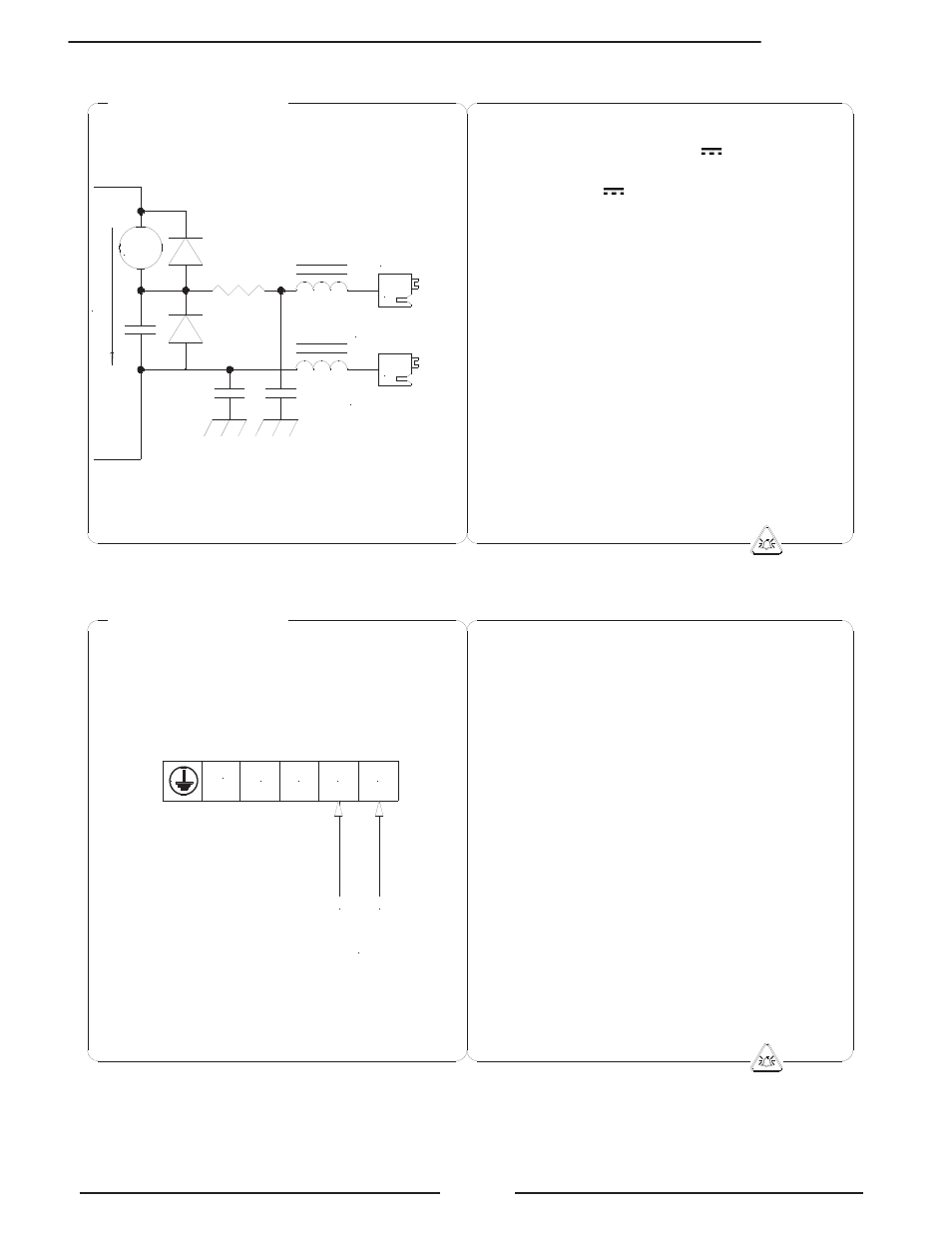

HML4-F1
11
4-20mA OUT
mA
14
I
external supply
+
-
Output 4-20mA
14 15 16
A B
RS 485
or
PROFIBUS DP
+ -
MODULE ME35/36
OPTIONAL
FOR COMMUNICATION MODULE SEE THE SPECIFIC MANUALS
OPTIONAL EXPANSION MODULES
‰ Power supply 18-30V
‰ Max load resistive to the output: 800Ω
with 24V
of power supply
‰ Minimum load recommended 500Ω
‰ Setting time: 5ms
ATTENTION: The power supply of
communication module is the same of
that of entire instruments, therefore is
not insulated from it.
Terminal block M2
ATTENTION: The power supply of 4-
20mA is the same of that of entire
instruments, therefore is not insulated
from it.
