bIll of MaTeRIals - InTeRnal CoMPonenTs

optional Items

(not shown)

description

Part number

Printer Extension Cable

71237

Flash Cable

81885

Lap Pad Adapter

81514

Lap Pad

E40301

Lap Pad with Adapter

E403012

This manual applies to LCR-II’s with 81920 and

81547-2 CPU boards only.

If your LCR-II has a 84040 CPU board, please refer

to the EM150-11 LectroCount LCR-II (E3655/E3656

Series) Installation Manual. The 84040 board is

blue. Calibration tickets from 84040 boards will have

a “SR26x” in the FIRMWARE field instead of the

“SR21x” of 81920 and 81547-2 boards.

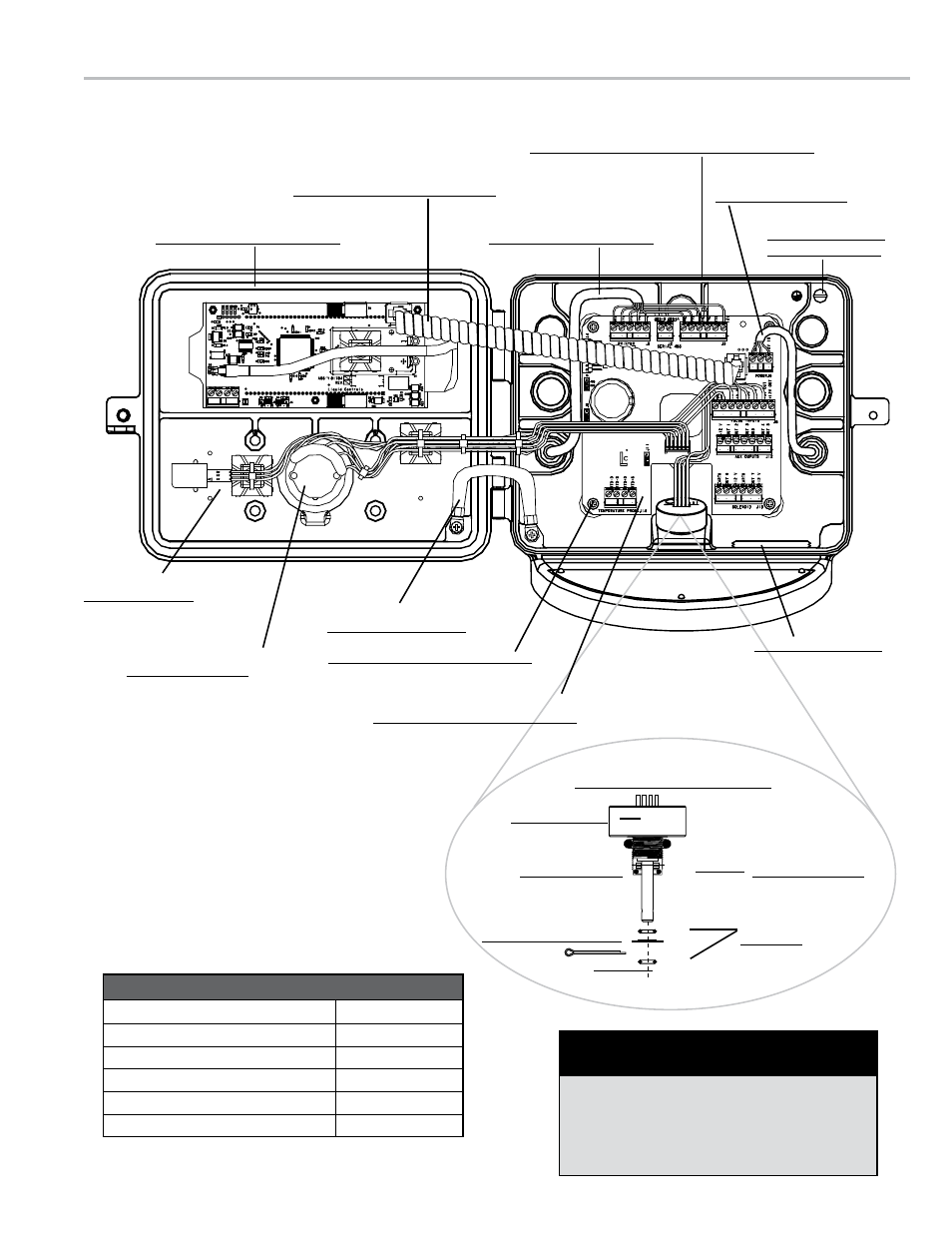

PN. 82597: Pulser Field Install Kit

PN. 08201:

O-Ring (2)

Cotter Pin

PN. 08189: Flat Washer

Pulser, 100 PPR

PN. 81833: Hollow O-Ring Seal

PN. 81330: Cable, Coiled Handset

PN. 81839: Membrane Switch

Harness Assembly

PN. 81832: Rotary Switch

& Harness Assembly

PN. 81836: Ground Strap (1)

w/ Screw & Washer (2)

PN. 81513040: Cable

Assembly Lap Pad & Printer

PN. 81512: Cable

Assembly Power Input

PN. 71319: Desiccant

PN. 81840: Enclosure, Base Assembly w/o Pulser

PN. 81841: Enclosure, Base Assembly w/ Pulser

PN. 08158: Screw, #6-32 x 1/2” (4)

PN. 07677: Ground

Screw, #8-32 x 1/4”

PN. 81547-2: PC Board Assembly

or PN. 81920: PC Board Assembly

PN. 08209: O-Ring

PN. 09380:

Nylon Washer (2)
