21

valves

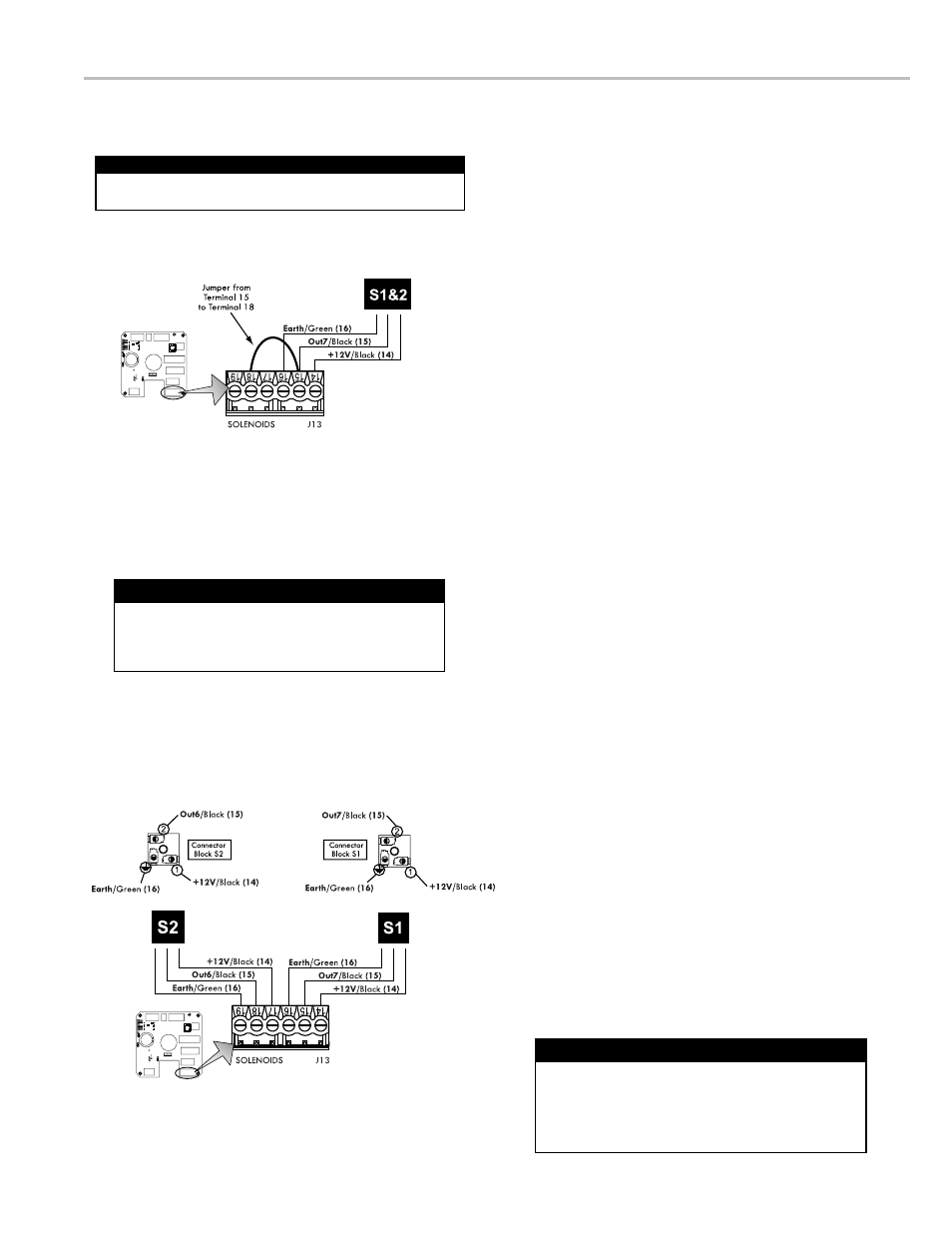

Solenoid 1 Wiring for

Single Stage Valves

Solenoid 1 and Solenoid 2 Wiring for A2859-11

and 3-Way Two Stage, 2848-11 Two Stage,

E7 Two Stage Wiring

valve Installation

If installing the valve yourself, please refer to the valve’s

installation and operation manual for mechanical

installation. Instructions for wiring Liquid Controls valves

to the LCR-II are on the following two pages.

Materials needed for wiring valves:

not supplied

with the valve

20 AWG stranded wire (3 per solenoid). Not necessary for

3-Way solenoid valves. Only 2 needed for E7 solenoids.

Weatherproof flexible conduit, ½" diameter and ½" NPT

conduit connectors or cable glands

PTFE tape or pipe sealant

To wire valves to the lCR-II:

1. Attach cable glands and/or conduit connectors to the

solenoid valve(s) and the LCR-II port(s).

2. Thread the wires through piece of weatherproof conduit

that is cut-to-length from the solenoid to a LCR-II port.

3. Run the weatherproof conduit between the solenoid-

operated valve(s) and the LCR-II housing, pull the wires

through the ports, and tighten the connectors.

4. Connect the S1 solenoid-operated valve wires to

terminals 14 and 15 on the j13 terminal block of the LCR-

II CPU board.

5. Connect the S2 solenoid-operated valve wires to

terminals 17 and 18 on the j13 terminal block of the LCR-

II CPU board.

To wire a single stage valves for presetting:

1. Wire the S1 solenoid as instructed above.
2. Run a jumper wire from Terminal 15 to Terminal 18.

Disconnect the power before working on the CPU board.

Disconnect Power

Solenoid operated valve 81527 (3-way LPG solenoid)

has 3 cables potted into the housing. All other

solenoid operated valves on Liquid Controls valves

use cable assembly 81859, which has 2 cables.

Solenoid Operated Valve Cables

The Earth grounds for Terminals 16 & 19 are optional.

The solenoid operated valves are grounded through

the component they are mounted on.

Earth Grounds for Solenoid Valves
