Power Check
After the LCR-II has been installed, check to make sure that it powers up correctly. The LCR-II display and the printer
power light should come on when the truck’s ignition is turned to the ON or to the ACC position. Make sure the printer
power switch is on. If the LCR-II or the printer does not power up, check the wiring and the connections on the LCR-II
CPU board against the manual.
PoWeR InsTallaTIon

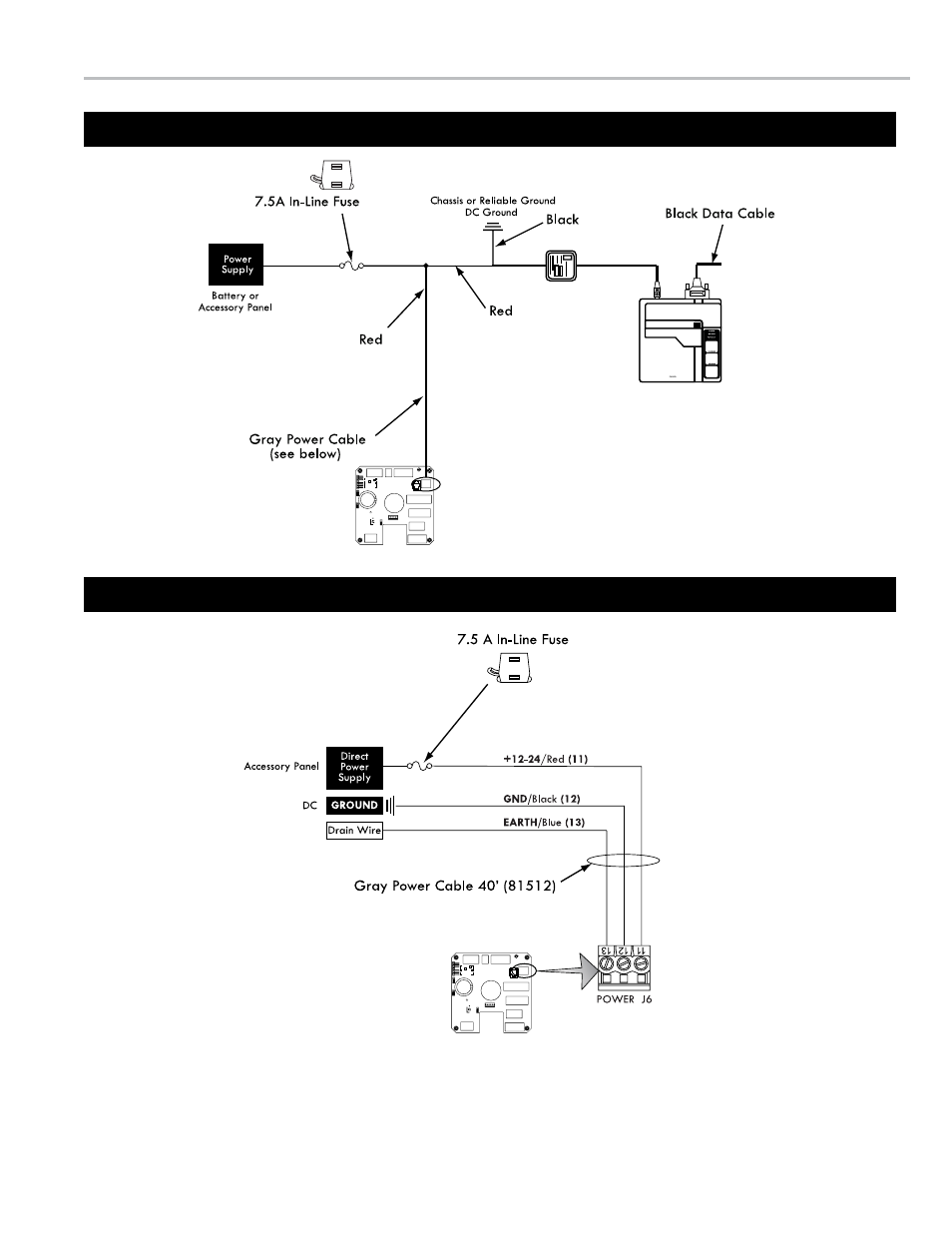

epson Printer Power Connections
lectroCount lCR-II Power Connections
