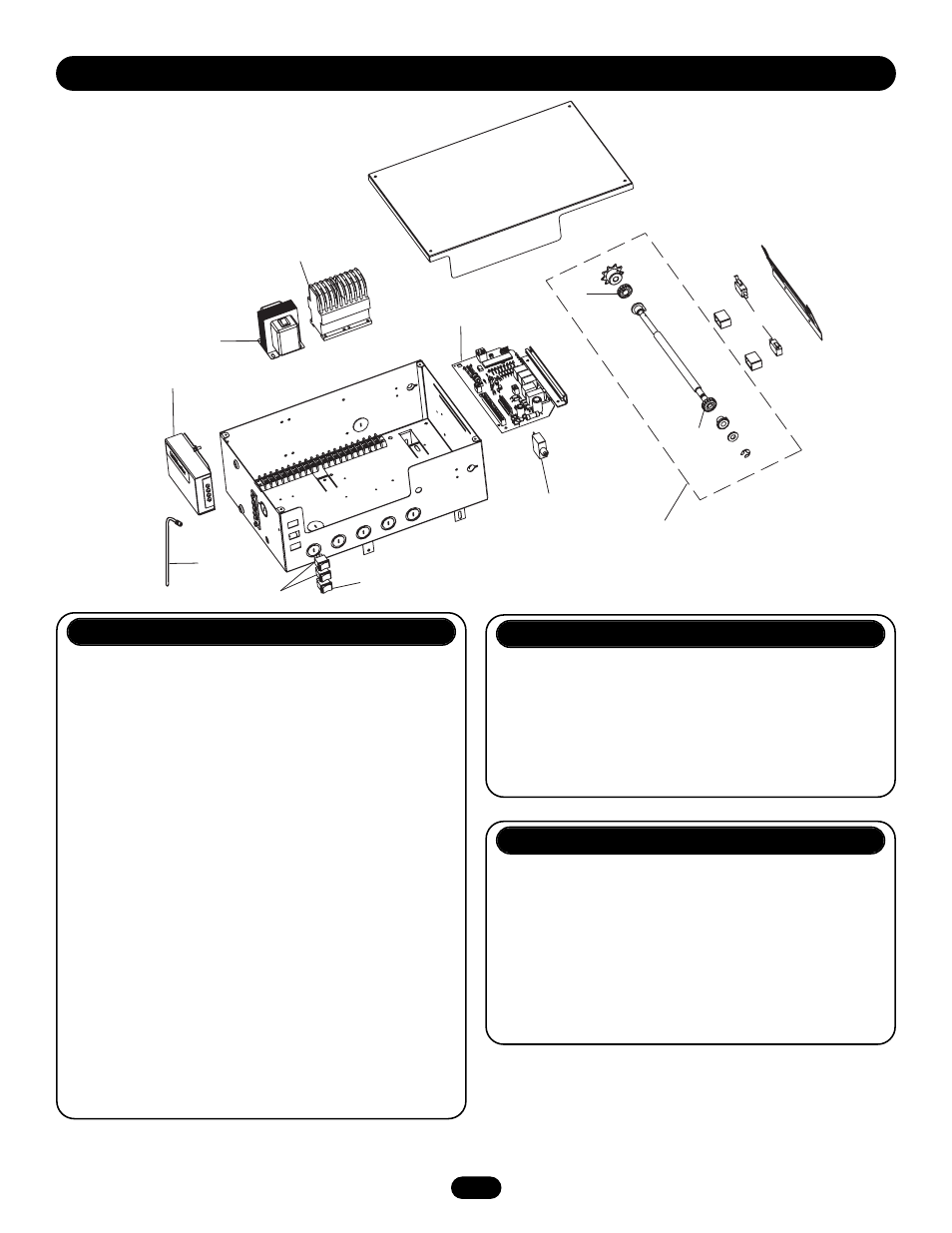

E L E C T R I C A L B O X
7
4
10
3
8
6
5
1
1
K1 (K72-34818)
2
9
INDIVIDUAL PARTS
ITEM PART # DESCRIPTION
1 13-10024 Limit nut
2 23-10041 Limit switch (SL585 only)
3 03-8024-K Contactor
4 K001A5566 Control board
5 23-30716 Stop switch
6 23-34815 Open/close switch
7 312HM Radio - 315 MHz
8 21-3260-1 Transformer - 120/208/230/460/60VA
21-10298-1 Transformer - 575Vac/100VA
9 K1C3196-3 Antenna
VARIABLE PARTS
10 25-2006 Overload - 6 AMP - SL585-50-21,
SL585-50-81, SL595-50-21, &
SL595-50-81
25-2008 Overload - 8 AMP - SL585-100-21,
SL585-100-81, SL595-100-21, &
SL595-100-81
25-2010 Overload - 10 AMP - SL585-50-11,
SL595-50-11, SL585-150-21 &
SL595-150-21
25-2015 Overload - 15 AMP - SL585-100-11,
SL595-100-11
25-2025 Overload - 25 AMP - SL585-150-11,
SL595-150-11
*Non stocked item. Please allow additional delivery time.
SERVICE KITS
ITEM PART # DESCRIPTION
K1 K72-34818 Limit shaft kit (SL585 only)
Complete with: Limit shaft, limit
nuts, limit bearings, limit sprocket,
shim washers, compression ring,
roll pin and e-ring.
*To order a complete replacement electrical box kit, contact
technical support at 1-800-528-2806.
SL585 Only
For SL595 Limit Box
components, see
pages 32 and 33
INDIVIDUAL PARTS
ITEM PART # DESCRIPTION
25-4002-5K Overload - 1.8 to 2.6 AMP -
SL585-100-53, SL595-100-53
25-4003-K Overload - 2.6 to 3.7 AMP -
SL595-200-53
NOT SHOWN
K74-18379 RPM Sensor (Hall effect)
