Relay Drive
Troubleshooting LEDs
J1 Terminal
Troubleshooting LEDs
J5 Connector
SAMS
J2 Connector
J3 Connector
Aux. Relay Drive
(not used)
Motor Learn
Button
Programming Port
(factory use only)
Limit LEDs
Main Terminal
Wiring
Potentiometer
Timer to Close
Dip Switch #4
Master/Second
J4 Connector
Master/Second
Diagnostic LED
Dip Switch #2
Dip Switch #1
Potentiometer
Force Adjustment
15
EDGE/PHOTO CLOSE
This switch (S2-4) selects edge or photo sensor for the gate
closing protection input.
Close Photo Eye (Reverse): When the
control board is configured for photo eyes,
the input functions to reverse the gate to
the open limit when activated during the
close cycle. Shown as factory default.
NOTE: Timer to close will reset if enabled.
Close Edge: When the control board is
configured for safety edges, the input
functions to reverse the gate to the open
limit when activated during the close cycle.
The entrapment is not cleared at the limit
and the timer to close will be disabled. The
timer to close may be enabled by
activating the interrupt (safety) loop, open
or override open inputs.
UL325 ENTRAPMENT PROTECTION (CONTINUED)

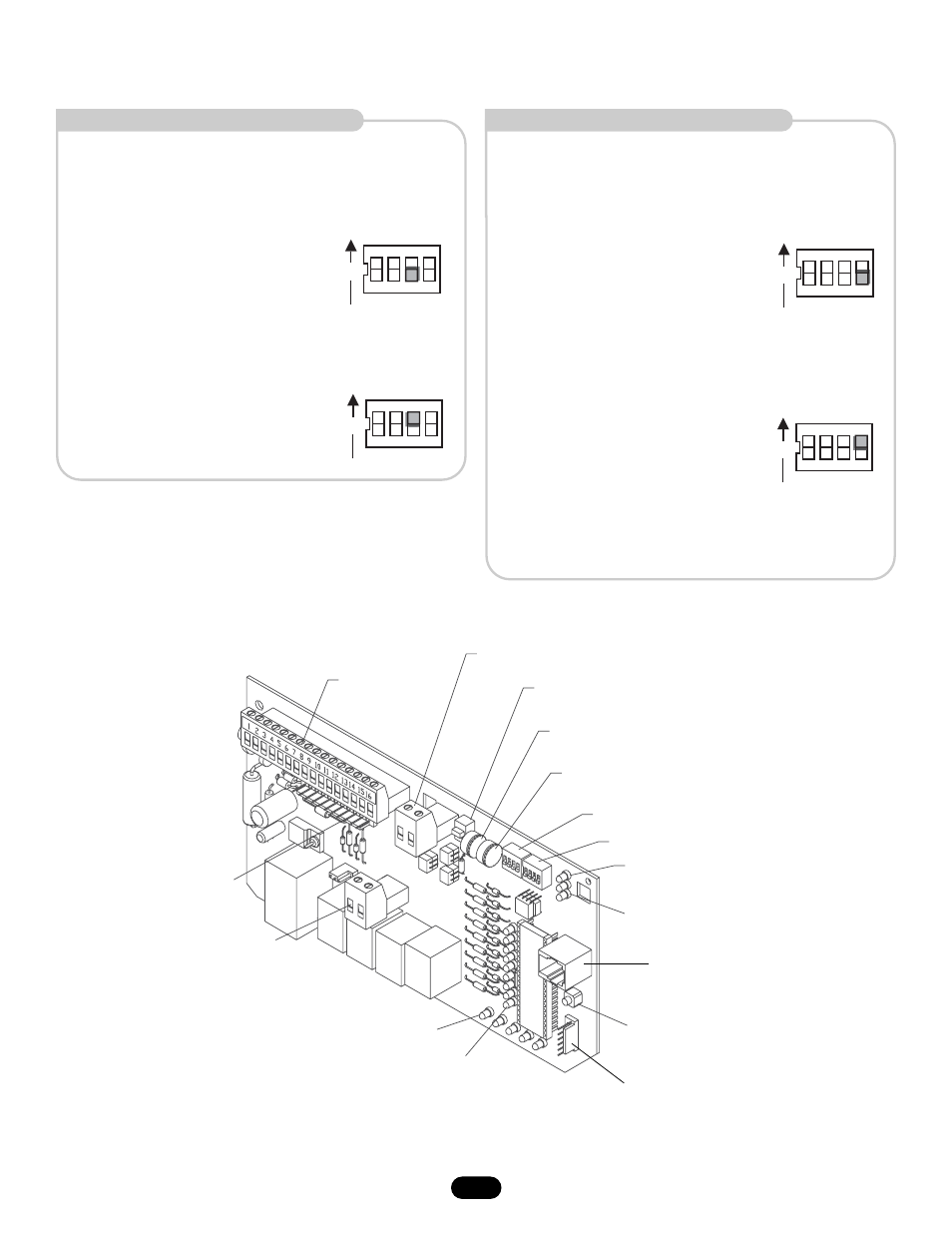

CONTROL BOARD ILLUSTRATION
EDGE/PHOTO OPEN
This switch (S2-3) selects edge or photo sensor for the gate
opening protection input.
Open Photo Eye (Pause): When the
control board is configured for photo
eyes, the input functions to pause the gate
during the opening cycle. Once the input
is cleared the gate continues to open.
Shown as factory default.
Open Edge: When the control board is
configured for safety edges, the input
functions to reverse the gate to the close
limit when the edge is activated during the
opening cycle.
ON
CLED PH OPED PH
1 2 3 4
W
ARN MAG
ON
S2
ON
CLED PH OPED PH
1 2 3 4
W
ARN MAG
ON
S2
ON
CLED PH OPED PH
1 2 3 4
W
ARN MAG
ON
S2
ON
CLED PH OPED PH
1 2 3 4
W
ARN MAG
ON
S2
PHOTO OPEN
EDGE OPEN
PHOTO CLOSE
EDGE CLOSE
