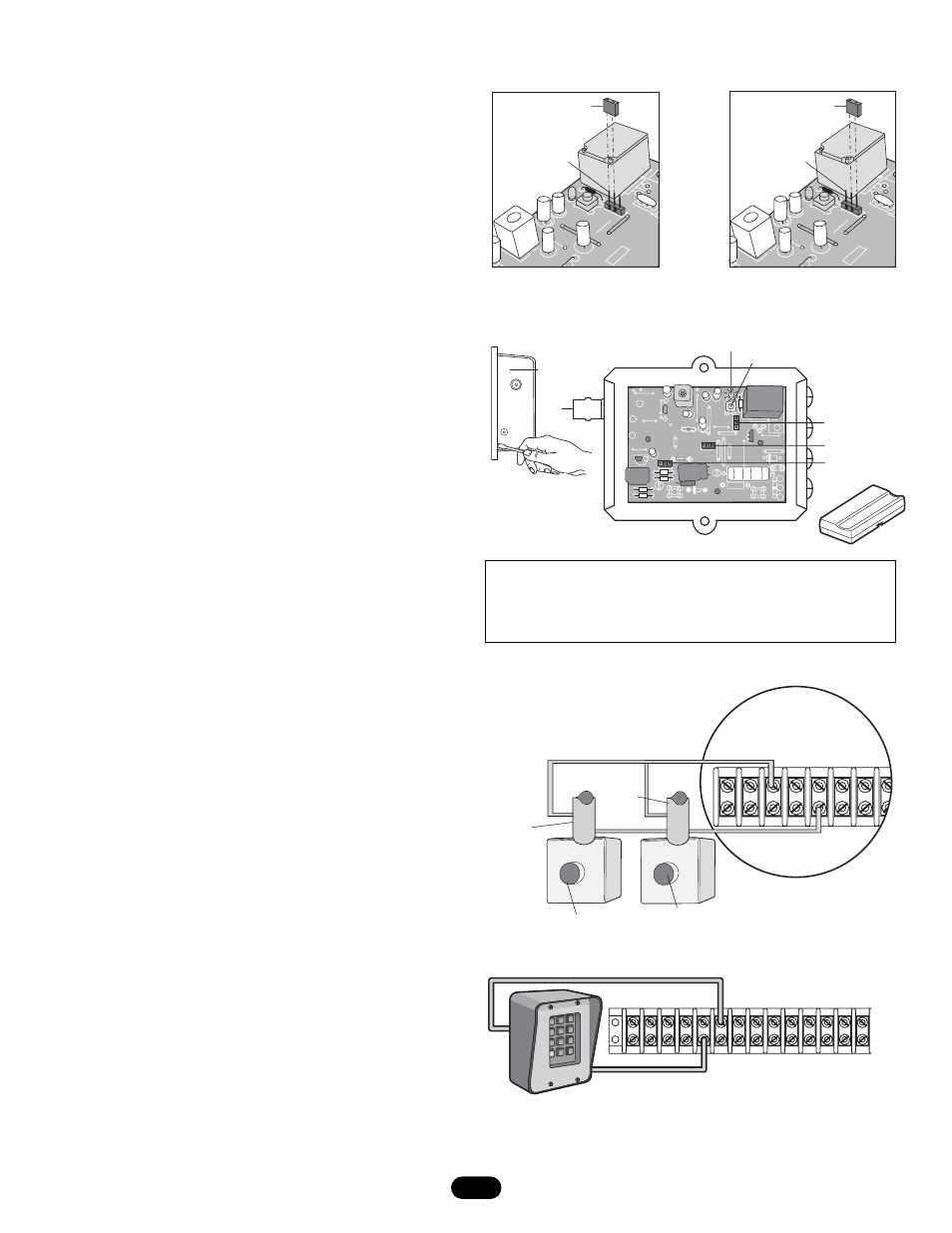

ACCESSORY WIRING
REMOTELY MOUNTED STOP/RESET CONTROL WIRING
• This control will function as a Stop/Reset command and is to be
wired within line of sight of the gate.
• Wire Stop/Reset control station to terminals 3 and 5 on the
control box on the operator. Make sure that all Stop/Reset
controls are wired in series.
Terminals 6 & 5 (Com) - Soft Open
These terminals are intended for use as a general open control.
Accessories that may be wired to this input include: Telephone
Entry Systems, Radio Receiver (Commercial Applications), Exit
Loop Detector, Keypads, 7-Day Timer. NOTE: Will not override a
double entrapment (signalled by the gate stopped and
entrapment alarm on).
1
2
3
4
5
6
7
8
9 10 11 12 13 14
3
6
9
#
2
5
8
0
1
7
Soft Open
1
2
3
1 2 3 4 5
6 7
Control
Conduit
Control
Conduit
Stop/Reset
Button
Stop/Reset
Button
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of
this receiver and/or remote control are prohibited, except for changing the code setting or
replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
FIGURE 3
PROGRAMMING THE REMOTE TO THE RECEIVER
1. Pry open the front panel of receiver case with a coin or a
screwdriver. Re-connect power to operator (Figure 3).
2. Press and release the "learn" button on the receiver. The learn
indicator light will glow steadily for 30 seconds.
3. Within 30 seconds, press and hold the button on the hand-held
remote that you wish to operate your gate operator.
The opener will now operate when the push button on either the
receiver or the remote control is pressed.
Repeat Steps 2 and 3 for each remote control that will be used to
operate the gate operator.
TO ERASE ALL REMOTE CONTROL CODES
Press and hold the “learn” button on the receiver panel until the
indicator light turns off (about 6 seconds). All remote codes are
now erased. Then follow the steps above to reprogram each
remote control.
