11

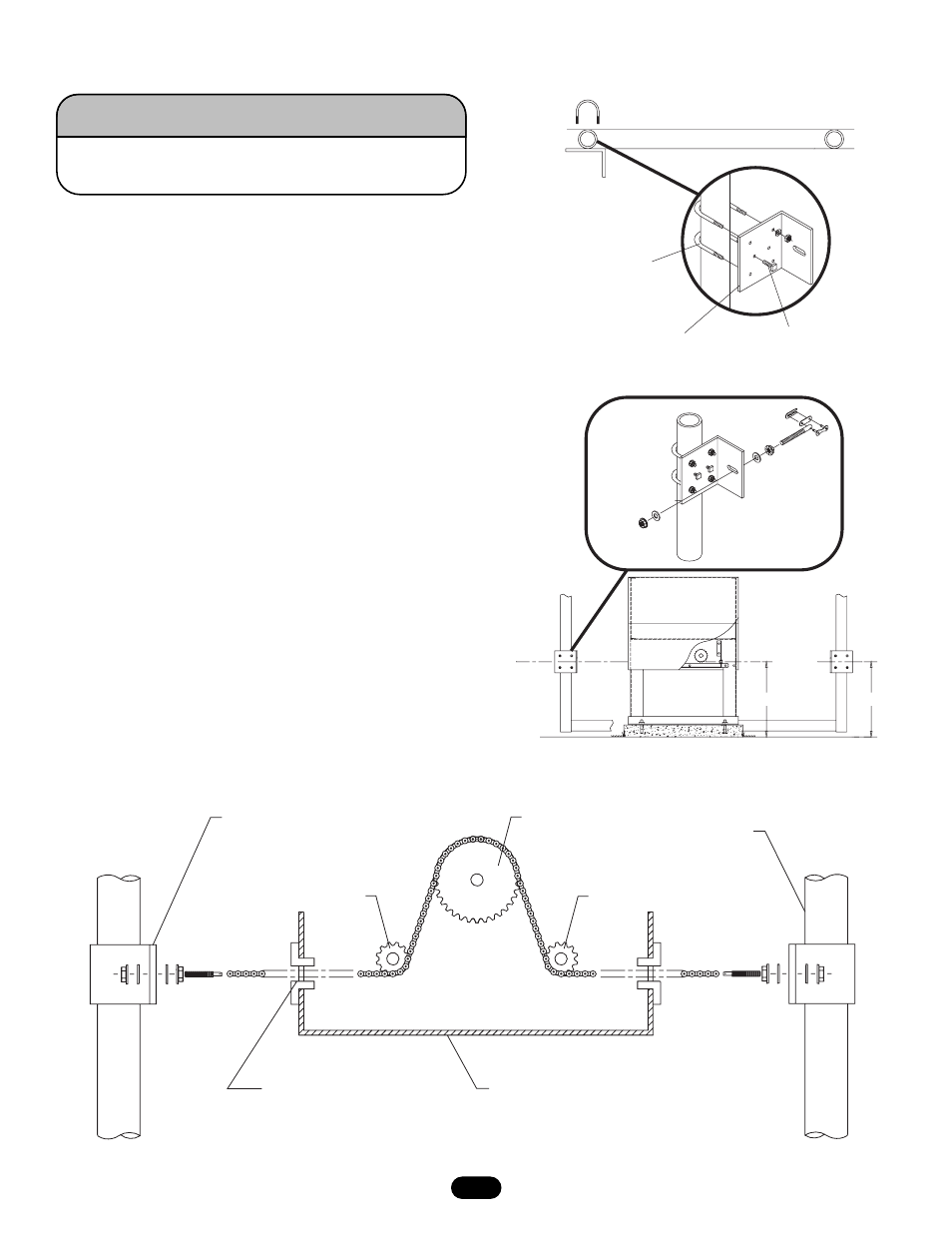

Figure 1
Figure 2
1. Mount gate brackets to the vertical front and rear posts of the
gate (Figure 1).
2. Remove the operator cover or open access door.
3. Locate and engage the manual disconnect and lock it in place
(refer to page 12).
4. Connect chain take-up bolt to the end of the chain and attach
to the rear gate bracket (Figure 2).
5. Ensure that the drive and idler sprockets are in line with each
other. Thread the chain through the plastic chain guide, around
drive and idler sprockets, and then through the second plastic
chain guide toward front gate bracket (Figure 3).
6. Adjust the chain to proper length and attach second take-up
bolt to chain end. Secure the take-up bolt to the front gate
bracket as shown.
Adjust nuts on chain take-up bolts to remove chain slack. A
general rule of thumb is to leave a maximum of 1" (2.5 cm) of
chain slack for every 10' (3.1 m) of chain length.
Do not overtighten chain.
NOTE ABOUT SOME TYPES OF CANTILEVER GATES:
With some cantilever gates over 20' (6.1 m) long, you may need
to add a brace along the length of the gate to prevent the gate
from bowing when chain is tightened. This may also be required
on some styles of gates that are constructed out of aluminum. If
positioned properly, this brace can also be used as a chain
support.
Figure 3
INSTALL GATE BRACKET AND DRIVE CHAIN
To prevent damage to the operator or gate, DO NOT drive the
limit (nuts) actuators on the shaft past their normal positions.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIA ADVERTENCIA
“Outside”
“Inside”
Gate
Gate Bracket
2" (5.1 cm) U-bolts
With Lock Washers
and Nuts
Anti-Rotation
Set Screw
* Gate Brackets Must Be Level and Centered
With Bottom of Idler Sprocket
Gate Bracket
Idler Sprocket
Drive Sprocket
Insert Chain Through Plastic Guides Safety Bracket
Idler Sprocket
Gate Post
