All safety features required by UL 325 are incorporated in the capabilities of all USAutomatic Control boards and should
be utilized, including but not limited to, safety edges, photo electric eyes, reverse sensing.
Cautions - Very Important
¾ Do not attempt to enter the gate area while the gate is moving. Wait until the gate comes to a complete stop.
¾ Operate the gate only when it is fully visible, free of persons or obstructions, and properly adjusted.
¾ Do not allow children to play in the area of the gate. Do not allow anyone to ride on the gate.
¾ Do not allow children to play with the remote control or any other activation device. Do not attempt to "beat the
gate" while the gate is opening or closing. This is extremely dangerous.
¾ Test the current sense feature and all safety devices regularly to insure correct operation.
Study this entire Safety Section paying particularly close attention to the entrapment zones shown below and be aware of
these areas not only during use but also during any adjustments to the unit.

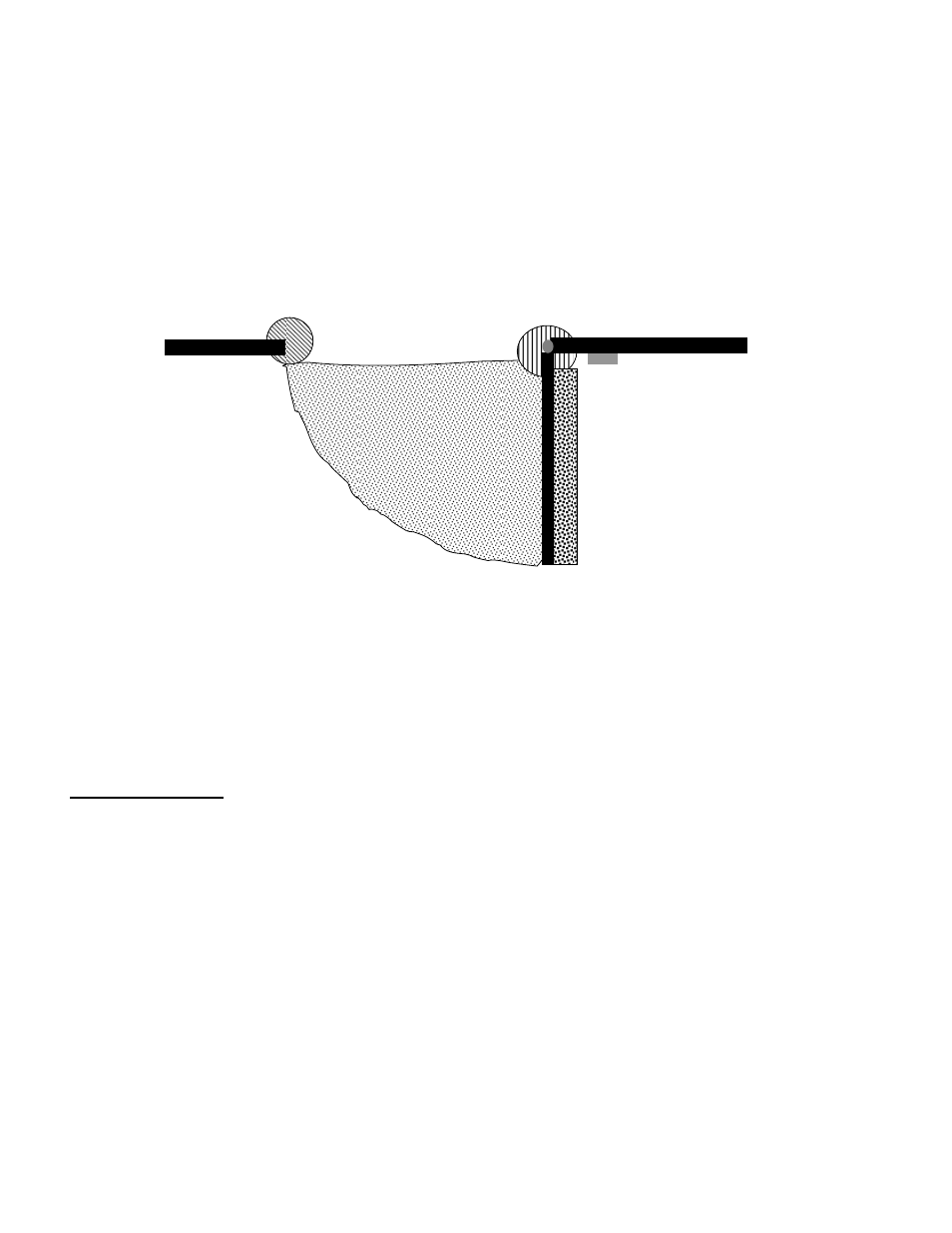

ENTRAPMENT ZONES
Zone 1 The leading edge of the gate & catch post.
Zone 2 Area between the gate and hinge post.
Zone 3 The arc of the gate or gate path.
Zone 4 The space between the gate when open and any obstruction such as fence, wall, landscaping, etc.
Zone 5 The point where two bi-parting gates come together when closing. (Not shown above)
Every installation is unique and it is the installer's responsibility to recognize and remedy all safety concerns. Please
consult a qualified dealer or the factory for a complete explanation of the remedies and additional tips pertaining to your
installation.
Periodic Service
All gate operators require periodic checking and adjustments of the control mechanism for force (load),
speed and sensitivity. All accessories and secondary safety devices must be checked. Secondary safety
devices need to be checked at least once a month for proper operation.
Periodic checking is also advised for the following:
1. Battery terminals for corrosion, clean with baking soda solution.
2. Hinges and pivot points need to be greased.
3. Mounting bolts if used for correct tightness.
4. Inspect weld points for cracks or other defects.
5. Inspect wiring for cuts, nicks or other defects.
6. Inspect hinge post to ensure it is not moving or twisting.
7. Charge device verify proper operation, refer to charge controller operation check.
8. Verify monthly that the inside of the control cabinet remains clean and free of insects. Do not spray
control board with bug spray or oil based products.
