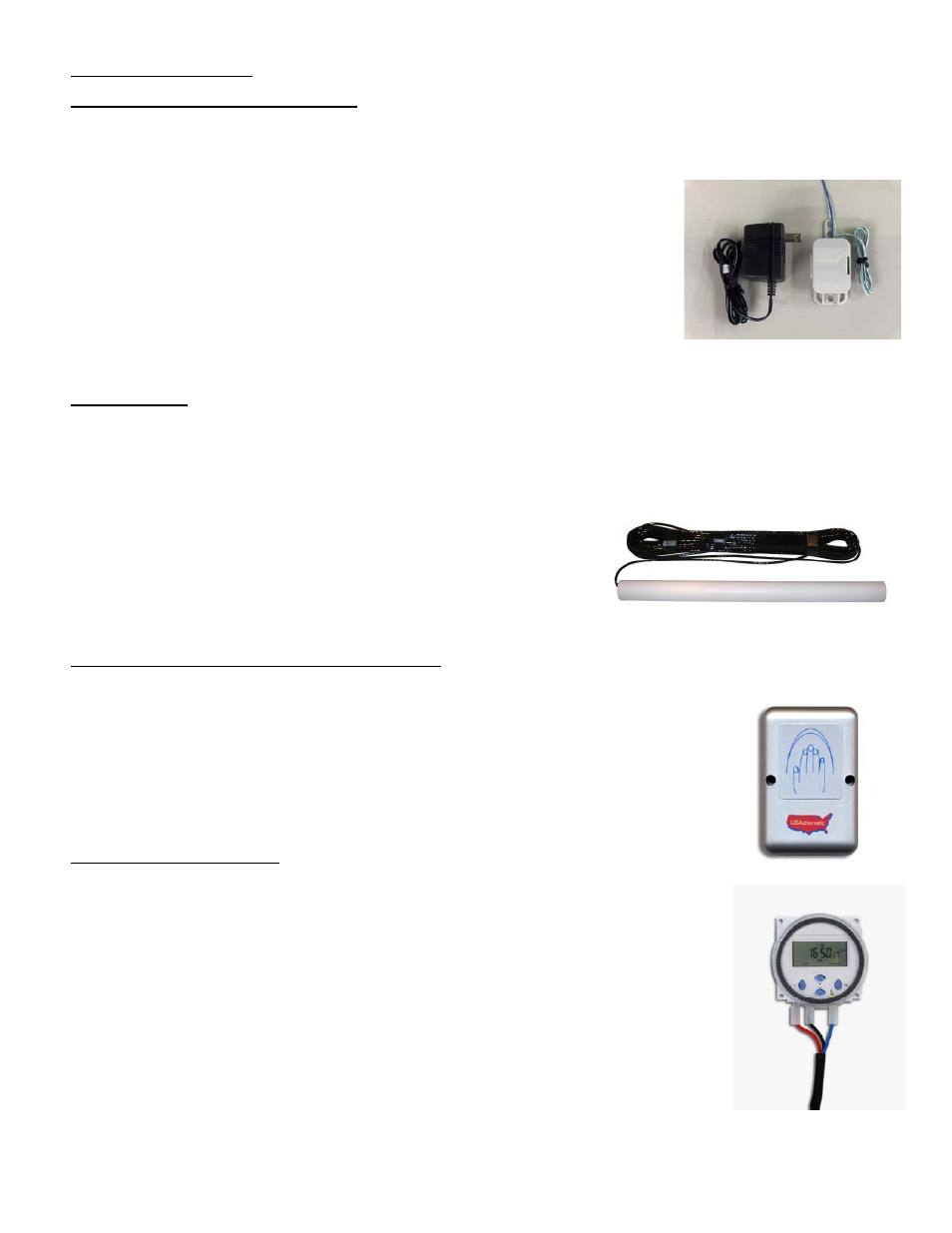

Accessory Information
Garage Door Receiver Information: Part number 030214
The receiver provided with the Ranger gate operator operates at 433 MHZ and might or might not be
compatible with your garage door. If receiver frequency is not compatible the optional “Garage Door Receiver
kit” can be easily installed in the garage.
The kit contains receiver, transformer and a wire harness that easily installs to
the existing garage door. One receiver will be needed for each garage door.
All existing transmitters used for garage door may continue to operate if not
disconnected. Mounting hardware included.
To program, open receiver box cover. Place small screw driver in slot to open.
Press the learn button. Then press the transmitter button that will be used to
open the garage. See garage opener for connecting the 2 wires supplied.
If needed 4 button transmitters are available.
Exit Sensor: (Solar friendly device) Preferred Technologies CP-2
The driveway exit sensor is a magnetic device that installs below ground beside the drive. A magnetic field is
established which when interrupted by a metal object will send a signal to open the gate. This sensor is
typically installed inside the property beside the drive to automatically open the gate when a car passes. This
type of sensor is not a safety device.
Sensor can be ordered with cable lengths that fit the installation.
It is recommended to install this sensor and cable in PVC conduit.
Wire as follows: Red wire – connect to J2 pin 1
Shield (braided wire) – connect to J2 pin 2
Black wire – connect to J2 pin 9
Push to Operate Wireless Button Information: (Solar friendly device) Part number 030215
The Push to Operate transmitter is designed for outdoor installation. Install to allow
operation of the gate or garage by simply pressing the pad. The button is a pressure
sensitive pad. Press the pad an audible tone is generated. Programming is identical to
transmitter programming. Installation hardware is included.
7 Day Timer Information: (Solar friendly device) Part number 550015
The optional 7 day timer can be used to open the gate at a preset time and if the auto
close feature of the gate opener is being used the gate can then close automatically at a
preset time. The timer is supplied with a 3 wire harness that easily wires to the control
board. Connect wires from timer to control board J2 connector as follows:
¾
Red wire connect to J2 pin 1
¾
Black wire connect to J2 pin 2
¾
Blue wire connect to J2 pin 9
