StrongArm Installation and Reference
50

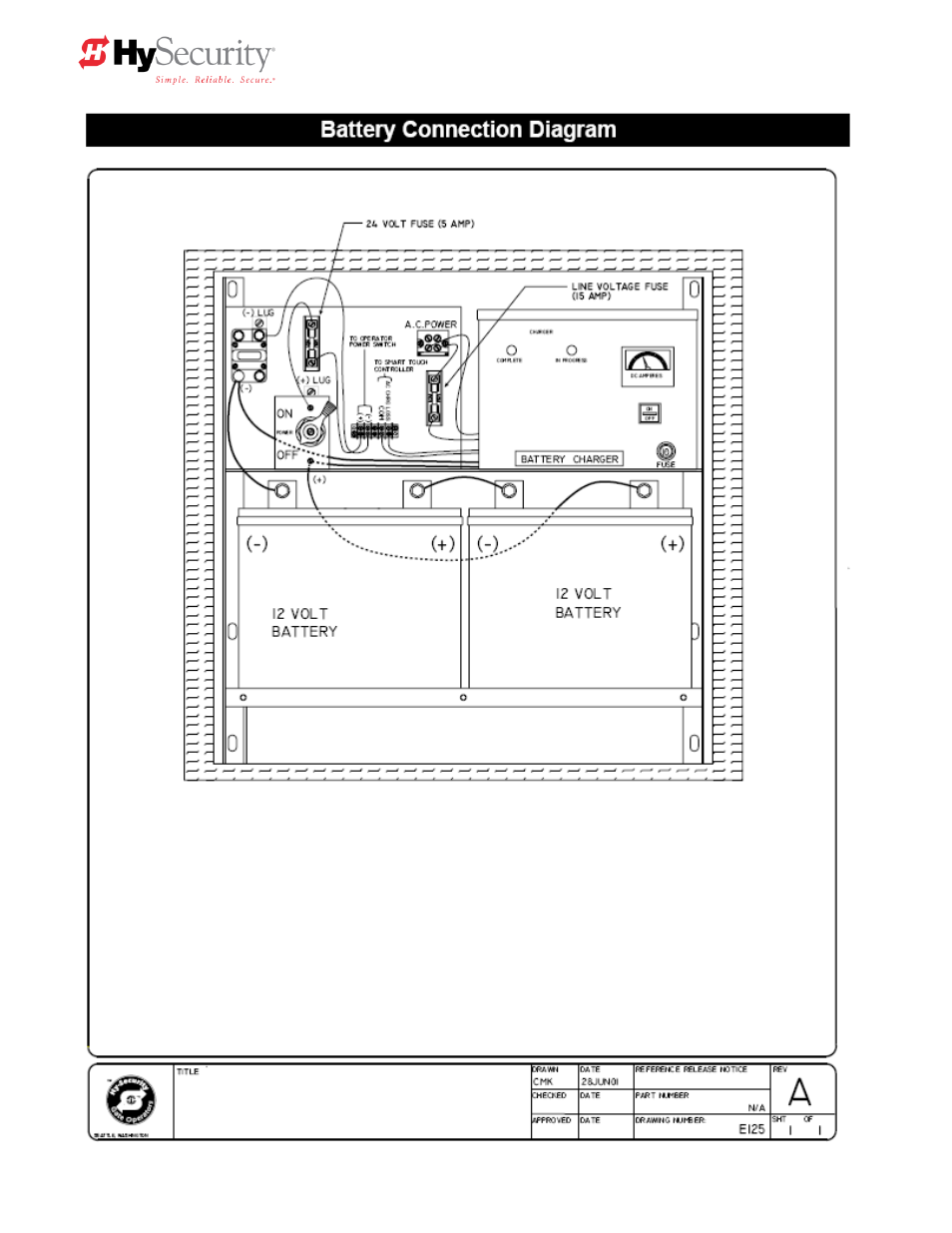

24V 110A.H. BATTERY POWER
SUPPLY FOR DC OPERATORS
Connect six wires to the gate operator as shown.
Four 14 gauge wires to the Control Circuit
Connect from lug
Terminals to DC Motor
Two 6 gauge minimum for 1 hp
Or
Two 2 gauge minimum through 2 hp
Install batteries as shown observing polarity
Always observe polarity carefully.
Always connect red wires to (+) and black wires to (-) except
for the wires connecting the batteries.
