StrongArm Installation and Reference 42
24 Hr, 7 Day Timer Option
This is an option you can order from HySecurity. The timer generates an open command which will hold the gate
open until it is released. Instructions on how to use and program it accompany the timer.

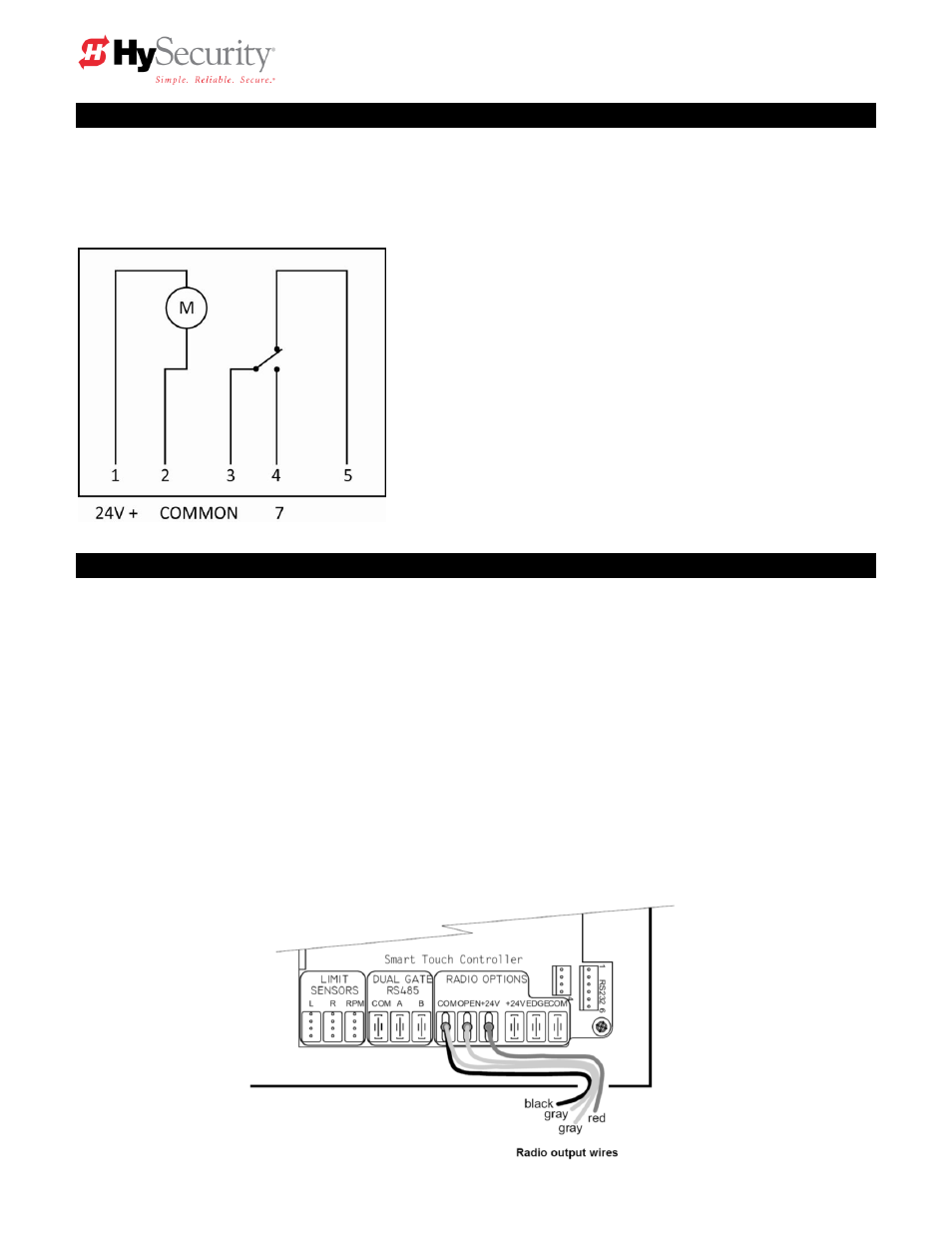

To connect the optional timer to the Smart Touch Controller, use the following schematic:
Connect the Timer Power Pin 1 to 24V (+)
Connect the Timer Power Pin 2 to COM
Connect the Timer Com Pin 3 to COM
Connect Timer NO Pin 4 to #7, Time Clock Open
Connecting a Radio Receiver for Remote Open
Mount a commercial style 24-Volt radio receiver (external antenna type) on the inside of the operator,
below the electrical box. Knock out the smallest hole in the lower right corner of the electrical box and
route the wires to the area marked Radio Options. Only three wire connections are needed because the
24-Volt supply and the radio output share a wire. Being certain to observe polarity, crimp the black radio
power wire to
gether with one of the radio output wires into a .25‖ spade connector and connect to the
COM terminal. Connect the red wire to the +24V terminal and connect the other radio output contact wire
to the spade marked OPEN. Note that this terminal is the same as the #4 input terminal labeled Edge
Sensor on the main control board.
Mount an external antenna onto the top of a fixed post of the fence near the operator.
Connect the antenna into the socket on the radio receiver.
Set the DIP switches in the receiver to match the same code used in the transmitter.
If there is also to be an edge sensor transmitter to reverse the gate, be certain to use a two channel
commercial receiver. Remember that each transmitter and receiver must have their codes set the same
or they will not function.
