Controlled Products Systems Group 6500-083 - Manual (Page 22)

21
1
Motor
2
Motor
3
Neutral
4
Ground
5
Limit
6
Limit
7
COM
8
24V
AC

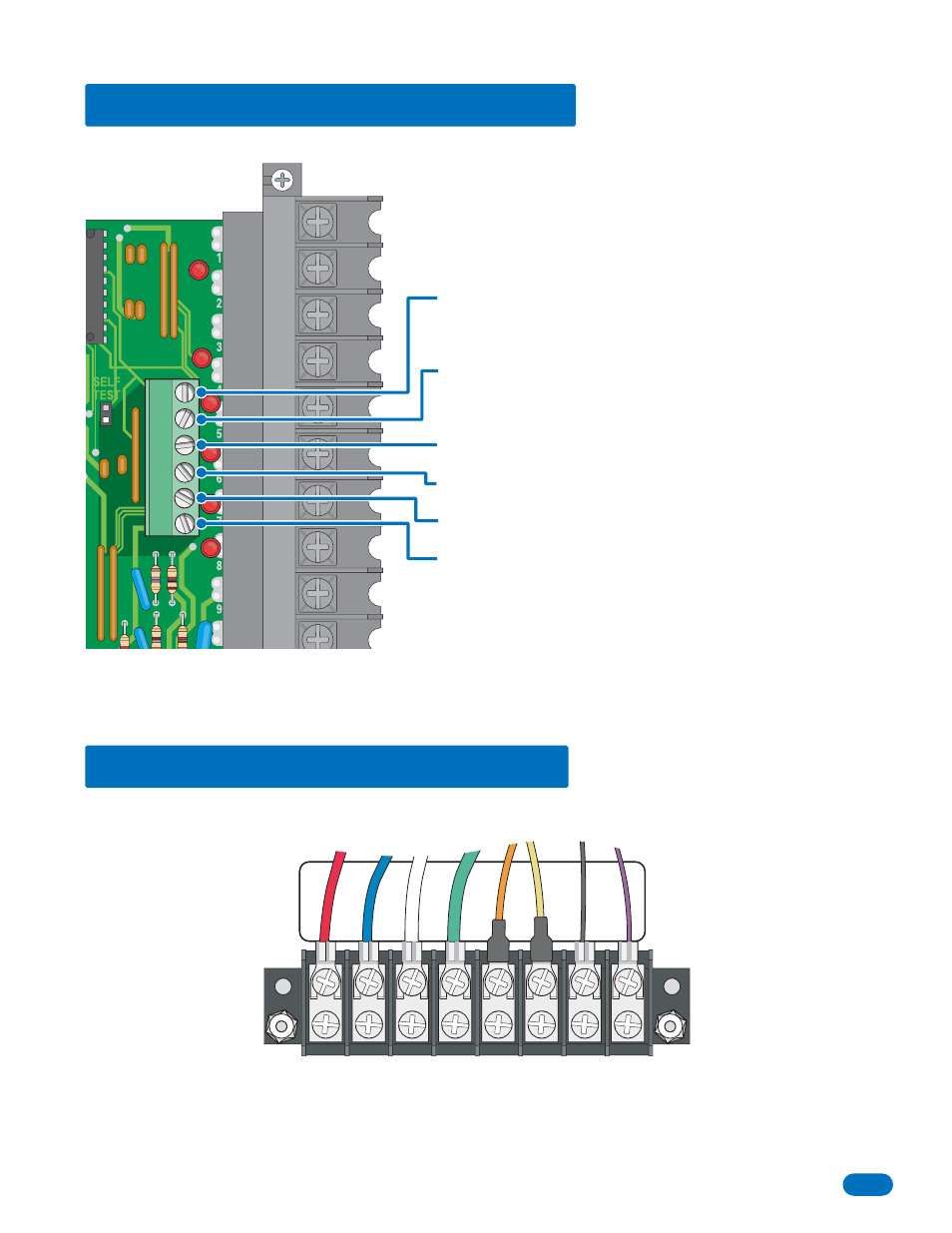

2.9 Auxiliary Terminal Description
2.10 Second Terminal Description
10
9
8
7
6
5
4
3
2
1
1. OPEN DIRECTION NON-CONTACT SENSOR (Photocell)
Stops gate movement in the open cycle. Gate resumes normal
operation when the input (obstruction) is cleared.
2. CLOSE DIRECTION NON-CONTACT SENSOR (Photocell)
Stops the gate in the closing cycle. Gate resumes closing when the
input (obstruction) is cleared.
3. Not used.
4. Not used.
5. COMMON.
6. COMMON.
1
2
3
4
5
6
8. 24
V
A
C
7. Common 6. Limit 5. Limit 4. Ground 3. Neutral 2. Motor 1. Motor
This terminal is used to connect the secondary operator in a dual gate application.
6500-065-E-2-08
