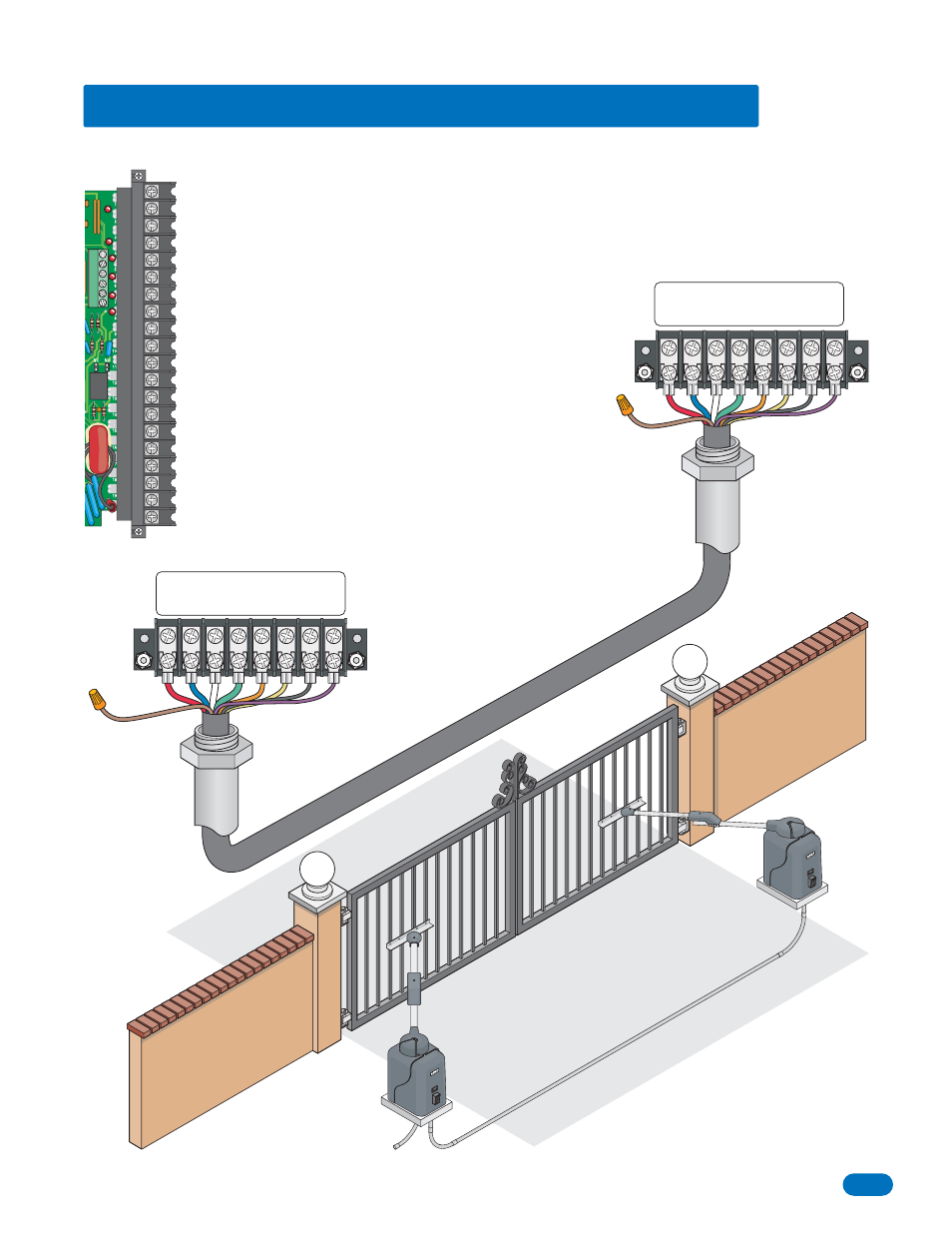

2.7 Primary / Secondary (Dual) Gate Connection
1
Motor
2
Motor
3
Neutral
4
Ground
5
Limit
6
Limit
7
COM
8
24V
A
C
1
Motor
2
Motor
3
Neutral
4
Ground
5
Limit
6
Limit
7
COM
8
24V
A
C
Conduit
Primary/secondary
interconnection cable
in underground conduit.
Power Conduit to
Primary Operator Only.
Primary/Secondary
Interconnection
Cable
Secondary Operator Terminal
Conduit
Primary Operator Second Terminal
Primary Operator
Secondary Operator
Primary Operator Control Board
Connect the Primary / Secondary interconnection wiring as shown. Wire colors are based on
DoorKing interconnection cable (P/N 2600-75x). Power is supplied to the secondary operator
by the interconnection cable.
• Secondary operator contains NO control board.
• All control, loop detector, safety and auxiliary
devices are wired to the primary operator.
Brown wire is not used.
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
