14
6500-065-E-2-08
2.1 Conduit Requirements
SECTION 2 - WIRING
Before attempting to connect any wiring to the operator, be sure that the circuit breaker in the electrical panel is in the OFF
position. Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a
licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your local building department prior
to installing any permanent wiring to be sure that all wiring to the operator (both high and low voltage) complies with local
code requirements.
THIS GATE OPERATOR MUST BE PROPERLY GROUNDED!!

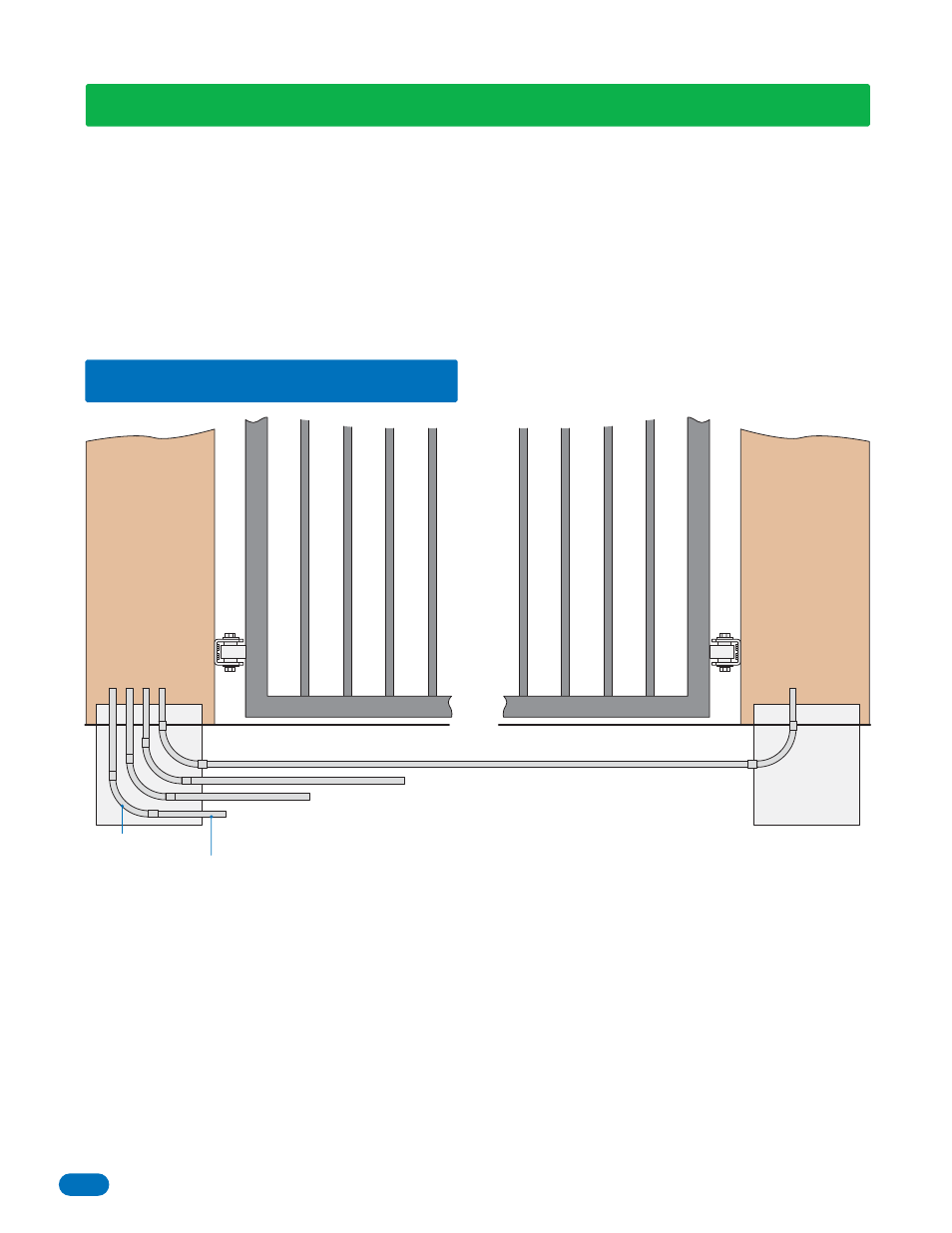

• The conduit requirements are for a typical swing gate operator installation (the secondary operator is shown for
those applications where a secondary operator may be used). The conduit requirements for your application may
vary from this depending on your specific needs.
• Use only sweeps for conduit bends. Do not use 90° connectors as this will make wire pulls very difficult and can
cause damage to wire insulation.
• We suggest that minimum ¾-inch conduit be used.
• Be sure that all conduits are installed in accordance with local codes.
Low Voltage Control Wires
Primary/Secondary Interconnection Cable (Dual Operator Application Only)
Loop Lead-In Wires
High Voltage Power
Sweeps
Concrete Pad
3/4 Inch Minimum
Primary
Operator
Position
Secondary
Operator
Position
