15
Chassis
Ground
Electrical Box
Knock-outs
Conduit
Neutral 115 V
A
C
115 VAC Models
Electrical Box
Knock-outs
Conduit
230/460 V
A
C
230/460 V
A
C
115 V
AC Neu
115 V
AC Neu
115 V
AC Hot

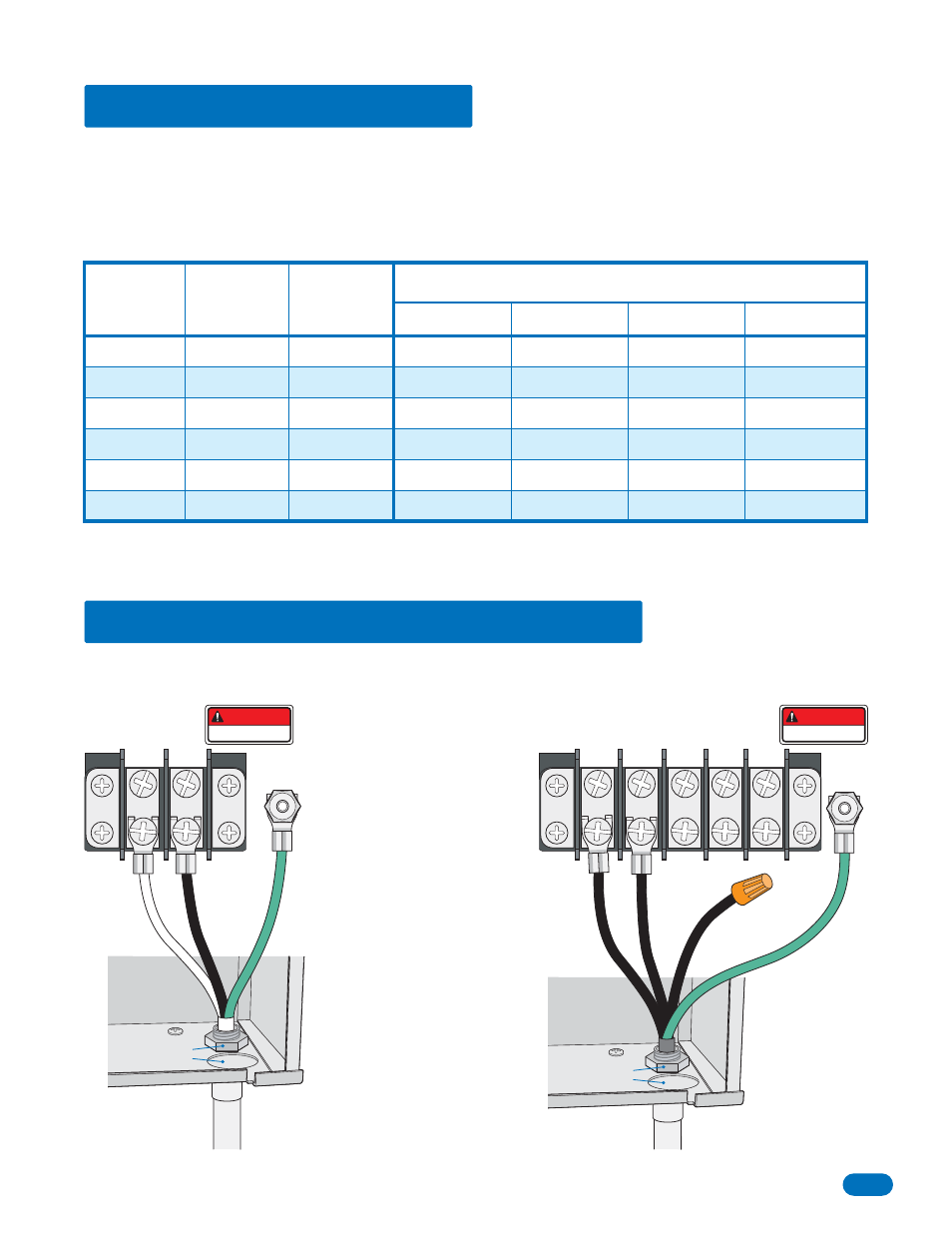

2.2 High Voltage Wire Runs
2.3 High Voltage Terminal Connections
The distance shown in the chart is measured in Feet from the operator to the power source. If power wiring is greater than
the maximum distance shown, it is recommended that a service feeder be installed. When large gauge wire is used, a
separate junction box must be installed for the operator connection. The wire table is based on stranded copper wire. Wire
run calculations are based on a 110 VAC power source with a 3% voltage drop on the power line, plus an additional 10%
reduction in distance to allow for other losses in the system.
• Route incoming high voltage
power through conduit and into
the operator as shown.
• Be sure wiring is installed in
accordance with local codes. Be
sure to color code all wiring.
• Connect power wires as shown.
• It is recommended that a surge
suppressor be installed on the
high voltage power lines to help
protect the operator and circuit
board from surges and power
fluctuations.
• For 230 and 460 Volt 3-phase
input, use only two legs of the
incoming 3-phase power.
• Secondary operator in a dual
operator application gets power
through the 8-wire connector that
links the 2 operators together. See
2.7 Primary/Secondary (dual) gate
connection.
Never run high voltage and low voltage wires in the same conduit. Keep them in separate conduits.
This table illustrates the high voltage wire size and distance requirements.
Reduce the wire distance in half for primary/secondary dual gate applications
Model
Type
Voltage
Required
Amps
Required
Wire Size / Distance in Feet
115 5.4 170 275 460 685
12 AWG 10 AWG 8 AWG 6 AWG
6500 1/2 HP
230 2.7 685 1,100 1,830 2750 6500 1/2 HP
460 1.35 2,875 4,600 7665 11,500 6500 1/2 HP
115 9.7 100 170 280 520 6500 1 HP
230 4.9 380 650 1,100 1,600 6500 1 HP
460 2.5 1,500 2,500 4,000 6,500 6500 1 HP
230 VAC/460 VAC Models
Chassis
Ground
DANGER
HIGH VOLTAGE!
DANGER
HIGH VOLTAGE!
6500-065-E-2-08
