13
6500-065-E-2-08
Note: Add this distance to the 13”
for the location of the operator
pivot point .

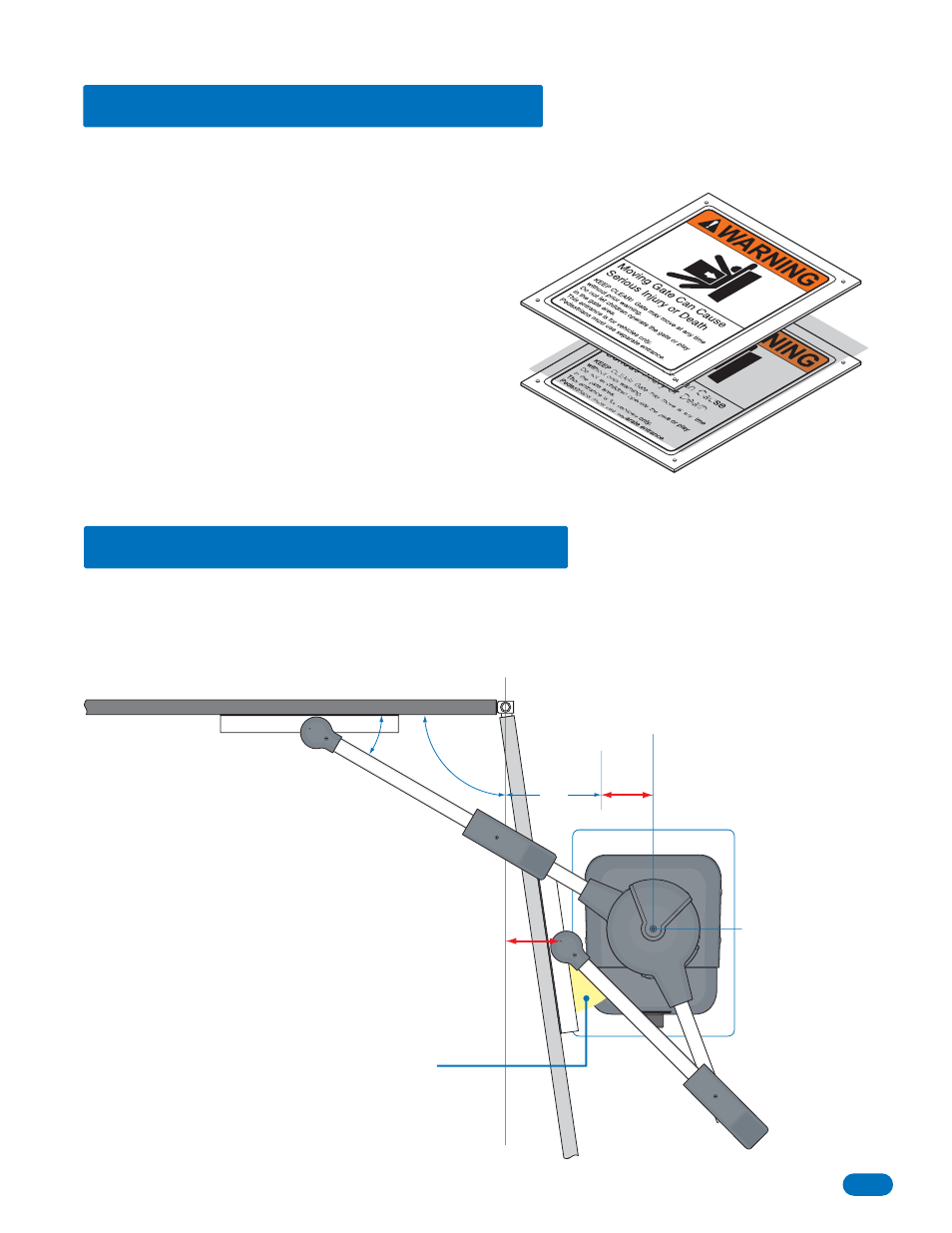

1.7 Installation of Warning Signs
1.8 Gates Opening Wider Than 90°
This DoorKing Swing Gate Operator is shipped with two warning
signs. The purpose of the warning sign is to alert uninformed
persons, and to remind persons familiar with the gate system, that
a possible hazard exists so that appropriate action can be taken to
avoid the hazard or to reduce exposure to the hazard.
• Permanently install the supplied warning signs in locations so
that the signs are visible by persons on both sides of the gate.
• Use appropriate hardware such as wood or sheet metal screws
(not supplied) to install the warning signs.
This type of installation requires the operator to be located further from the gate hinge pivot point. This distance varies depend-
ing on how far past 90° the gate will open.
13”
90°
Install
90° Plus
Install
Note: If this angle is less than 30°, the
gate bracket will interfere with the arm’s
safety cover and the operator will need
to be moved further away from the gate
in the open position.
90°
Gate Hinge
Pivot Point
Gate Bracket
Operator Pivot Point
30°
