750 Operator And
455 D Control Panel Installation Manual
750 F
LEX
H
OSE
C
ONNECTOR
K
IT
LEGEND
A Flexible Hydraulic Hose
B
Flex-hose to Compression
Adapter (2-Piece)
C
Flex-hose to Compression
Adapter (2-Piece)
D Compression Nut
E Ferrule Fitting

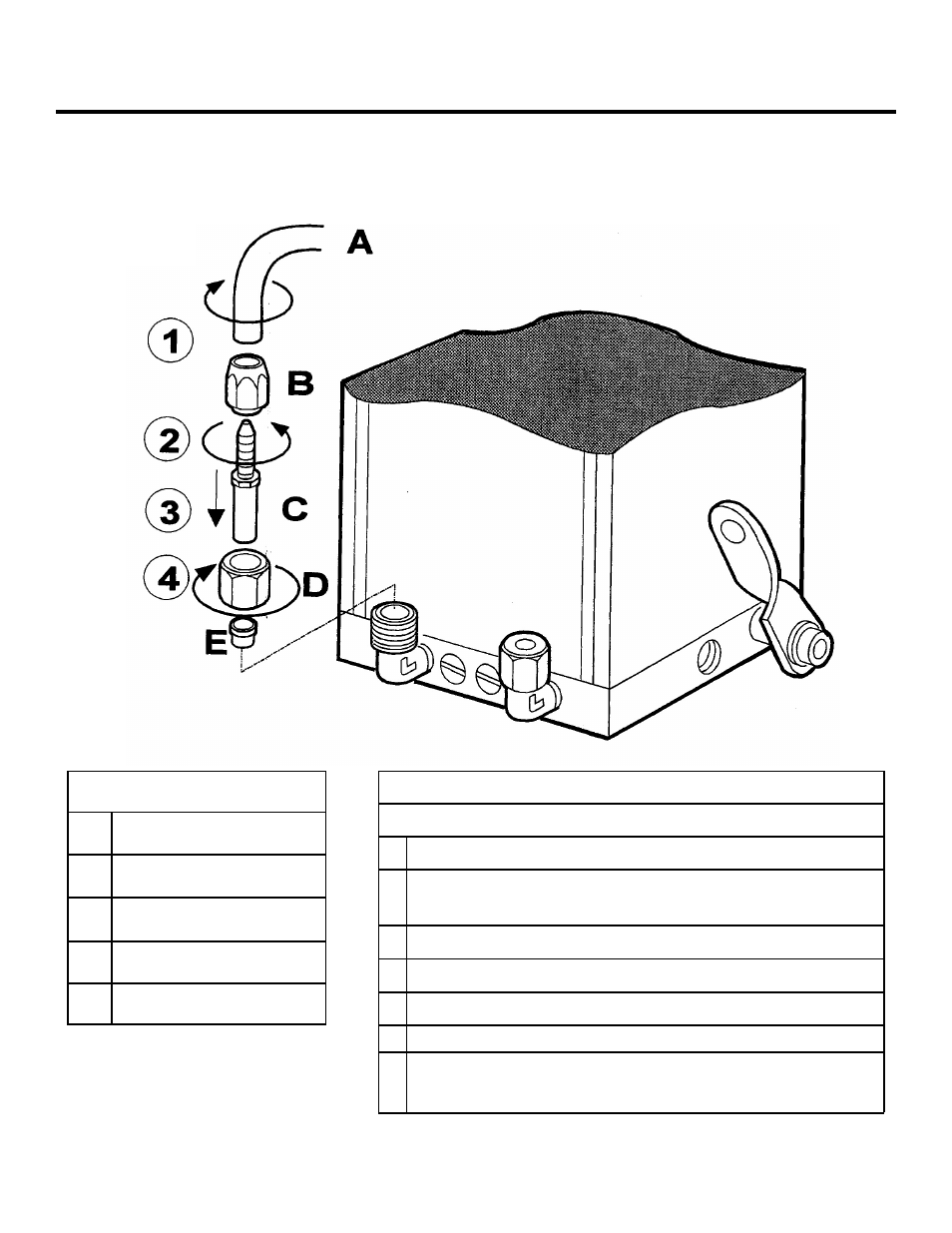

PROCEEDURES FOR INSTALLING FLEX-HOSE TO COPPER ADAPTER
1. Screw item B onto the hydraulic hose A (counter clock-wise) until tight.
2.
Screw item C into item B & A. To get the threads to catch up, you must push C
into B & A as you turn it (clock-wise)
3. Slide item D onto item C.
4. Slide item E onto item C, with larger end toward item D.
5. Insert item C into the elbow located on the pump unit.
6. Tighten item D securely while holding assembled adapter unit fully into elbow.
7.
Once you have tightened item D, item E will be permanently crimped onto item
C. So you can remove the hose from the pump and it will remain assembled.
Note: The parts are shown in proper installation order.
