Page 17
November, 2003
400 Operator And
455 D Control Panel Installation Manual
A CTIVATING D EVICES AND R ADIO R ECEIVER : The activating
devices and radio receiver for your gate must have
normally open (N.O.) contacts. Connect such devices to
terminals 9 and 14.
N OTE : The FAAC radio receiver plugs into the 5
prongs labeled J2 (Quick connect port).
Page 19 shows how to connect a three or four wire
receiver.
D ECODER C ARD : If you are installing the Digicard magnetic
card reader, or the Digikey keyboard, use the quick-fit
connector J2 for the DS decoder card (see Figure 1).
N OTE : If your using both a receiver and decoder,
hard wire the decoder and plug in the receiver.
O PEN /H OLD O PEN D EVICE : To open and hold open the gate,
simply maintain a contact across terminals 9 and 14.
(“A” Mode only)
S TOP B UTTON : The stop button you install must have
normally closed (N.C.) contacts. Multiple
stop buttons must be wired in series. Connect your stop
device between terminals 11 and 16.
N OTE : The 455 will not operate the motors
without a closed circuit between 11 & 16.
The LED Indicators: The nine light emitting diodes
(LEDs) on the control panel can be used to check for
the proper function of the devices attached to the
panel. The LED lights are on whenever the contacts
are closed across each of the respective terminals.
OP_A and OP_B (Partial Opening) should illuminate
only when an activating signal is sent for 2 and 1 gate
leaves, respectively. STOP should be illuminated except
when the stop button is pressed. FSWOP and FSWCL
should be illuminated except when the reversing

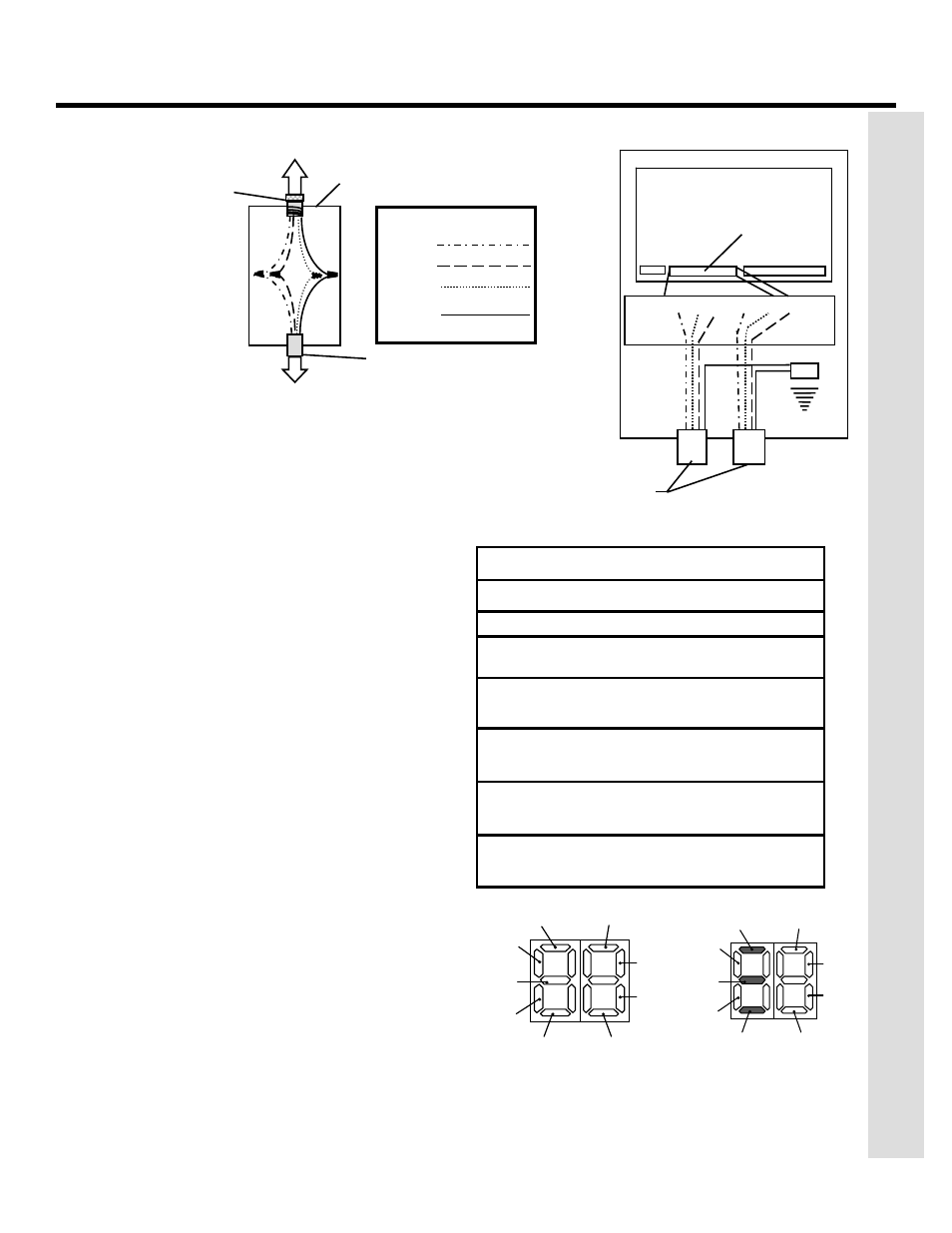

Figure 3.
Wiring detail (a) inside
the junction box and (b)
from the junction box or
operator to the high-
voltage terminal strip on
the 455 D control panel
F S W O P
F S W C L
O P _ A
O P _ B
S T O P
F C A 1
F C A 2
F C C 1
F C C 2
LED On Off
OP_A Command Given No Command
OP_B Command Given No Command
Stop No Command Command Given
FSW
Open Opening reversing
devices clear
Reversing device
triggered
FSW
Close Closing reversing
devices clear
Reversing device
triggered
FCA1
FCC1 Flashes when gate coder is in use.
Operator 1
FCA 2
FCC 2 Flashes when gate coder is in use.
Operator 2
U.L. Listed Control Panel Enclosure
Cord grip or
conduit from
U.L. Listed gate
operator(s)
(b)
Op.1 Op.2
COM OP CL COM OP CL
J3 J4
High-voltage
terminal strip
455 MPS Control Panel
Ground
J1
To the U. L. Listed gate operator
To the U.L. Listed
control panel
U.L. Listed
cord grip Junction box
Legend
White
Red
Black
Yellow/
Green
(a)
Conduit to U.L. Listed
control panel enclosure
according to N.E.C.
FSWOP
FSWCL
OP_A
OP_B
STOP
FCA1
FCA2
FCC1
FCC2
This display shows the normal
status of the control panel.
This display shows the
meaning of each LED.
Figure 12. The 455 D display.
