Kolpin 86400 – UTV 72” Snow Plow User Manual
Page 7
7

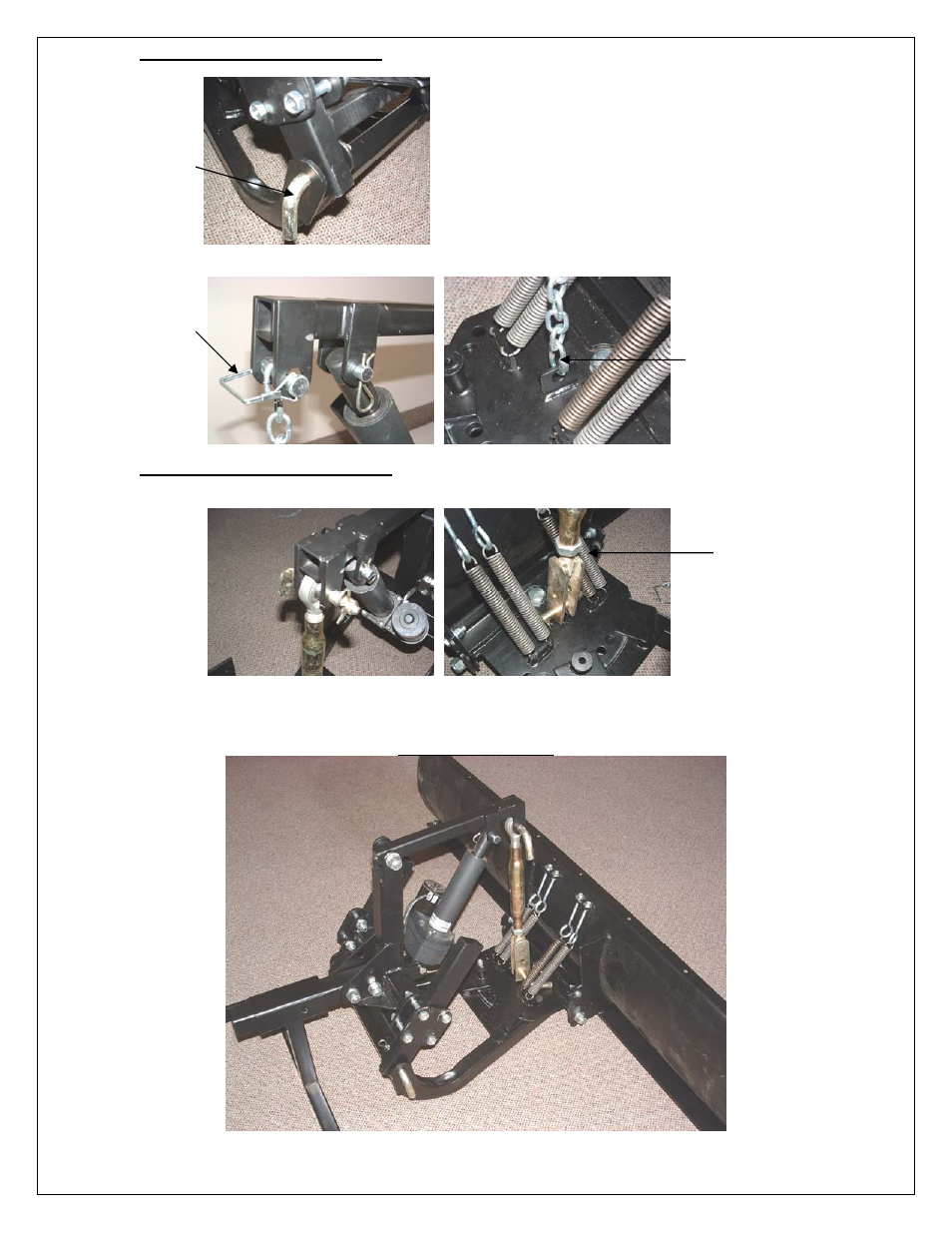

Step #13 for Free Floating Operation
1. Secure Blade Assembly using (2) 5/8” x 3” Bent Hitch Pins and ”R” Clips.
2. Secure Lift Chain with (1) Locking PTO Pin on upper lift Arm.
3. Secure Lift Chain onto lower Blade Frame area with #71 Removable Link.
Step #14 for Down Force Applications
1. Locate #16 Top Link with Clevis, and (2) 5/8” x 3” Bent Hitch Pins, and (2) “R” Clips.
2. Secure top as shown below (Left), Secure Bottom Clevis end as shown below (Right).
3. Secure Jamb nut after adjusting to desired height.
Fully Assembled Photo
#71 Removable Link
PTO Locking Pin
Jamb Nut
Bent Hitch Pin
