Caution – Kolpin 86400 – UTV 72” Snow Plow User Manual
Page 3
3
Rev 4.0 – 4/23/07

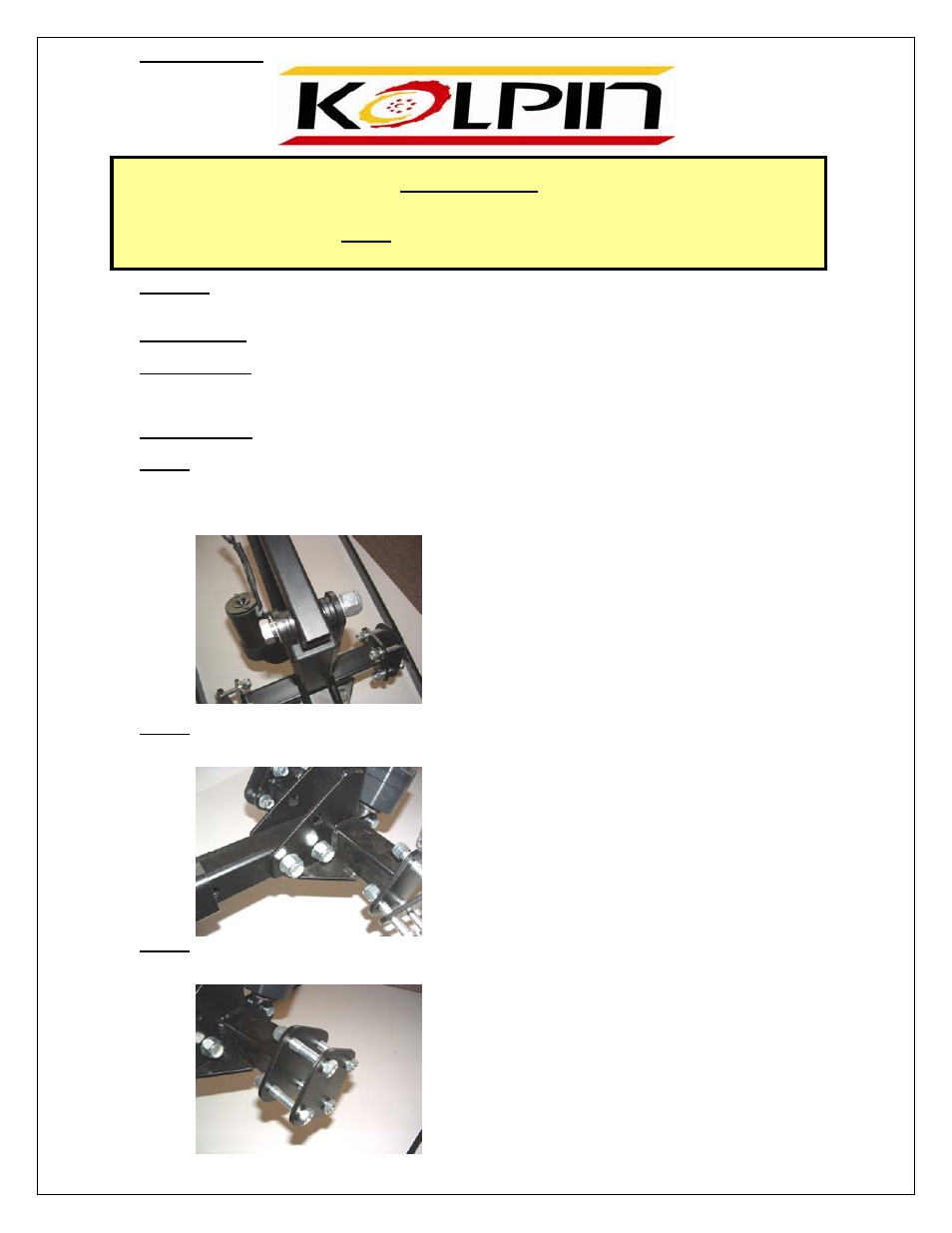

Important!
Please read through the entire instruction manual once before proceeding.
Tools Required: Adjustable Wrench Set and Socket Set.
Before you start:
Make sure the area you are working is clean and clear of any dirt or debris that might hinder the assembly of
your DirtWorks Disk Plow Implement.
Assembly Steps:
Step #1
1. Locate #1, 2, 3, 4, 5, 6, 7 and 8 items from parts list.
2. Secure #6 between upper two vertical metal posts on #1 with as shown in Picture. Place (2) 5/8”
Black Painted Washers #4 on either side of #6 during assembly. Secure outside washer and nylock
nut. You do not need to over tighten this.
Step #2
1. Secure Main Hitch Tube #17 to #1 assembly at this time using #18, 19, 20 hardware.
2. Tighten all hardware at this location.
Step #3
1. Locate (2) #2 Extra Plates and qty (8) each of Hardware #3, 4 and 5.
2. Secure Plates in place with hardware but do not tighten at this time.
CAUTION!!!
Never exceed 5mph while using the DirtWorks UTV Plow.
