Jumbo Frame Setting
The switch provides more efficient throughput for large sequential data transfers by supporting jumbo frames up
to 9216 bytes.
Web Smart switch interface
To configure Jumbo Frames:
1. Click Configuration, Jumbo Frames.
2. Select the frame size to configure.
3. Click Apply.

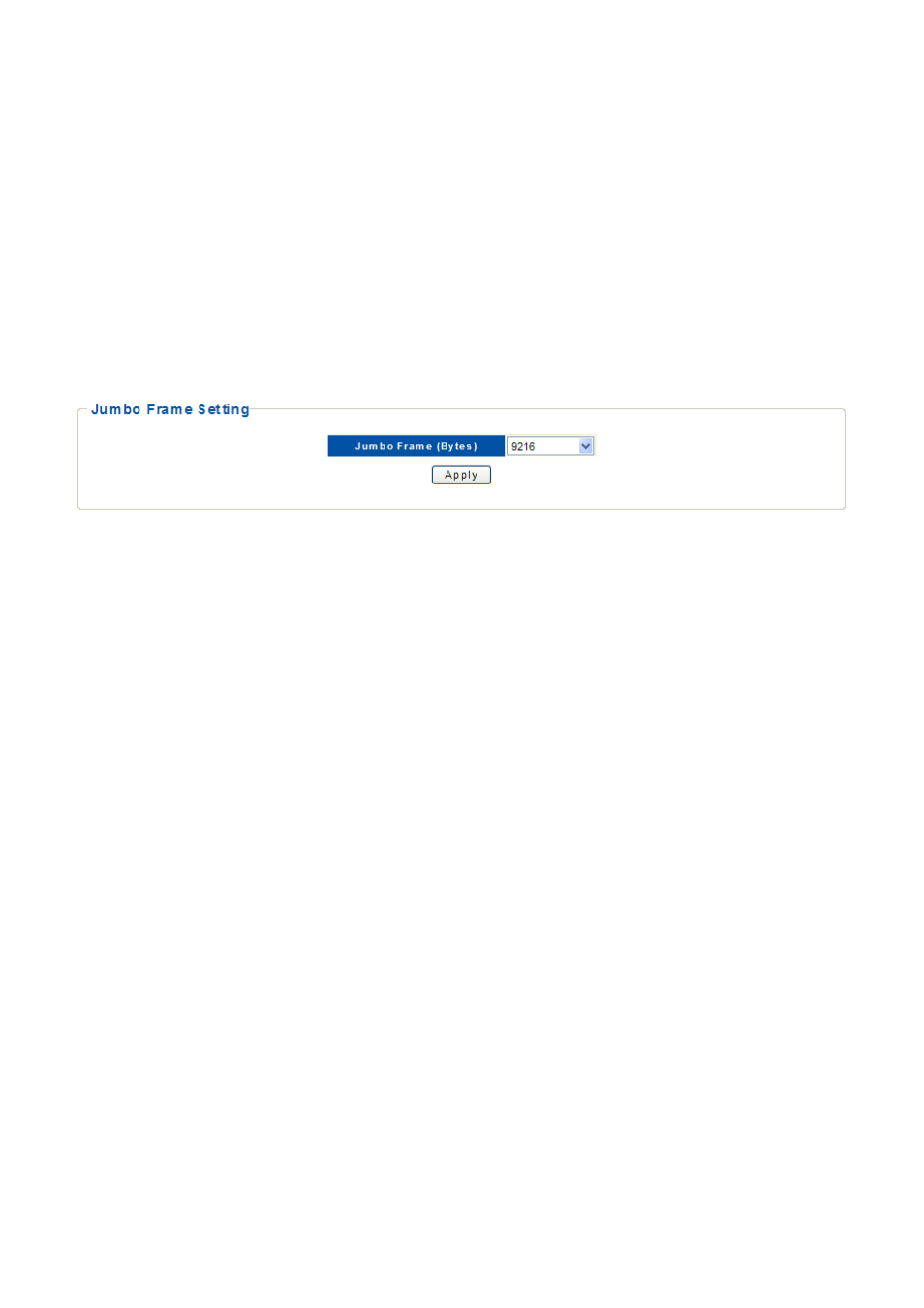

Figure 30: Jumbo Frame Setting
Hint
The following parameters are shown on the Jumbo Frame screen:
■ Jumbo Frame (Bytes) - Configure support for jumbo frames. (Options: 9216, 1522, 1536, 1552 Bytes; Default:
9216 bytes)
