Cashco 1000 HP Differential - Manual (Page 14)

14 IOM-1000HP-Dif fer en tial
MODEL 1000HP-1+6

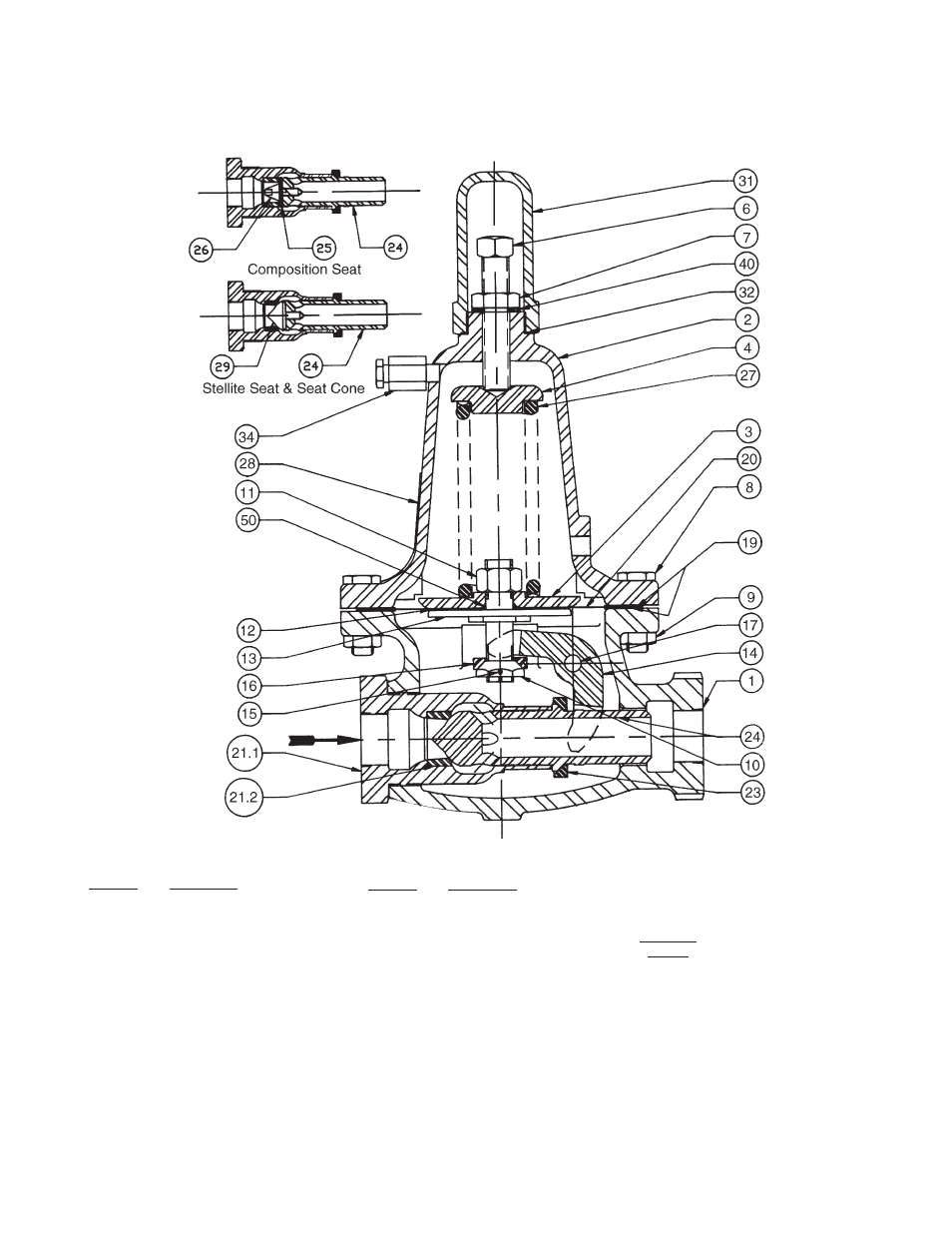

DIFFERENTIAL PRESSURE REDUCING REGULATOR
Item No. Description
1 Body & Body Assembly
2 Spring Chamber
(or Loading Chamber)
3 Pressure Plate
4 Spring Button
6 Adjusting Screw
7 Adjusting Screw Lock Nut
9 Flange Nut
10 Stud Nut
11 Pressure Plate Nut
12 Pusher Plate Gasket
13 Pusher Plate Stud
14 Rocker Arm
15 Cotter Pin
16 Stud Collar
17 Rocker Arm Shaft
19 Diaphragm Gasket
20 Diaphragm
Items Not
Shown
5 Pusher Plate
18 Body Plug/Drain Tap
30 Piston Spring
33 Spring Chamber Pipe Plug
36 Identifi cation Plate
(Supplied upon request)
43 Body O-ring
Item No. Description
21 Cylinder Subassembly consisting of:
21.1 Cylinder
21.2 Seat
23 Piston Collar
24 Piston
25 Seat
Disc
26 Seat Disc Screw
27 Range Spring
28 Nameplate
29 Seat
Cone
31 Closing Cap
32 Closing Cap Gasket
34 Bleeder Valve Assembly
40 Thread Seal Washer
50 O-ring
