Structure and function of the modules
electronic base module Me02 / 8-fold monostable
7.3.4.
Structure
An electrical base module consists of a distributor module (backplane bus) and a function module. Both modules
are contacted via a 14-pole board-to-board plug.
Combination options with valve types
Base module type
add-on
dimension
Valve
locations
Valve
type
Operating
prinziple
ME02 / 8-fold monostable
11 mm
8
6524
3/2-way
6525
5/2-way
Function display of the LEDs
No function
Yellow LED “on”
valve coil powered
Pin assignment of valve plug
1
Valve +
2
Not used
3
Valve -
1
2
3

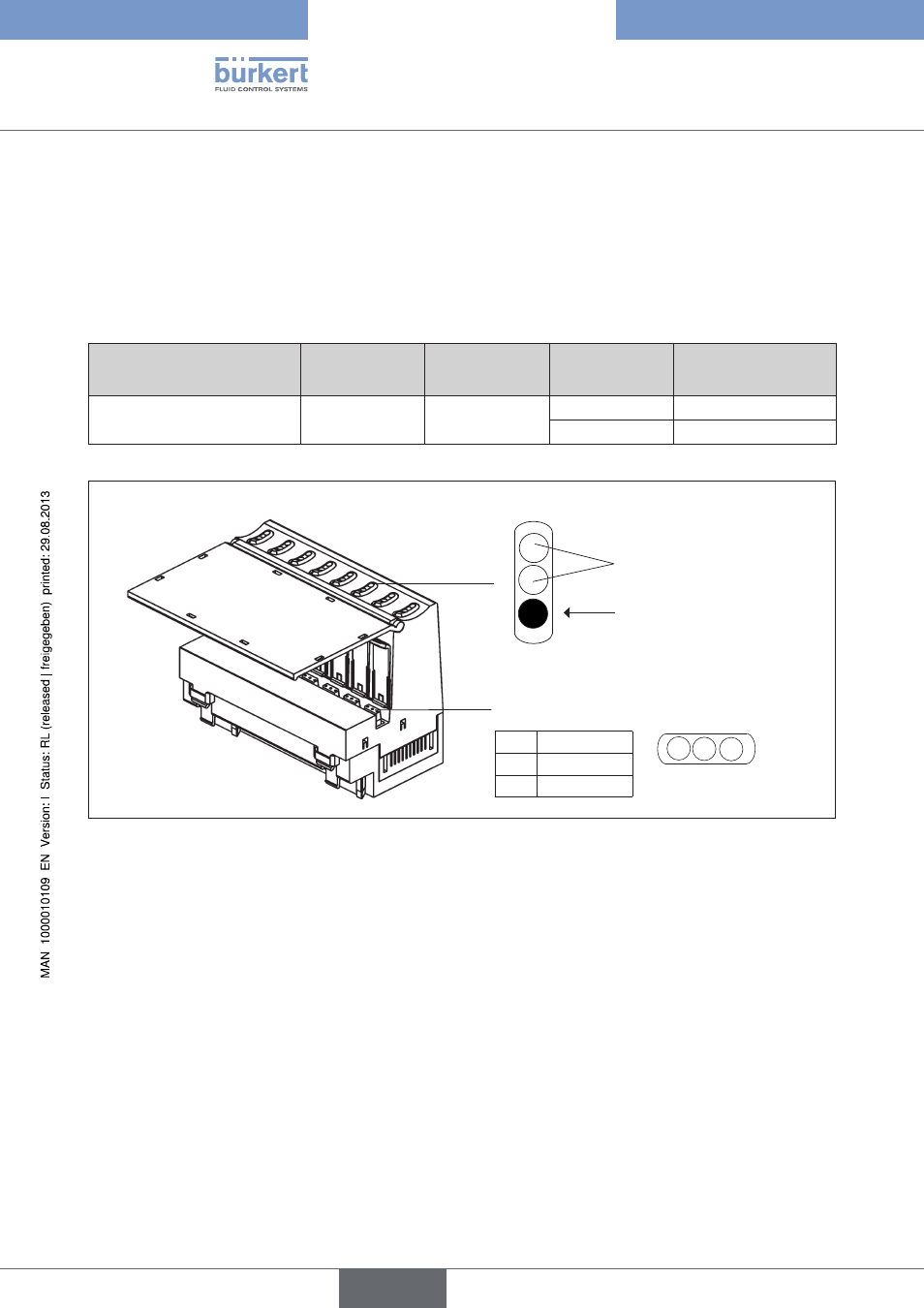

Electronic base module ME02 / 8-fold monostable
Figure 19:
