7.1 standard model
→
Connect L1/+ and N/– to terminals 1 and 2, independent of the
polarity.
→
Connect protective conductor.
→
Attach seal and check for correct fit.
→
Tighten cable plug (Type 2508 or 2509 in accordance with DIN EN
175301-803 (DIN 43 650), shape A, for order numbers see data
sheet); while doing so, observe the maximum torque of 1 Nm.
→
Check electrical continuity between coil and body (protective con-
ductor function).
7.2 pulse model (cf 02)
In accordance with the terminals on the valves, the connection
terminals in the cable plug are marked with the numbers 1 to 3.
→
Connect as shown in “Fig. 4”. Pulse on terminal 1 closes the valve;
pulse on terminal 2 opens the valve.
→
Attach seal and check for correct fit.
→
Tighten cable plug (Type 2508 or 2509 in accordance with DIN EN
175301-803 (DIN 43 650), shape A, for order numbers see data
sheet); while doing so, observe the maximum torque of 1 Nm.
→
Check electrical continuity between coil and body (protective con-
ductor function).
2 4 3
1
Terminal 1
( =) ∼
(+) L1
(–) N
PE
Terminal 2
Terminal 3
Protective
conductor

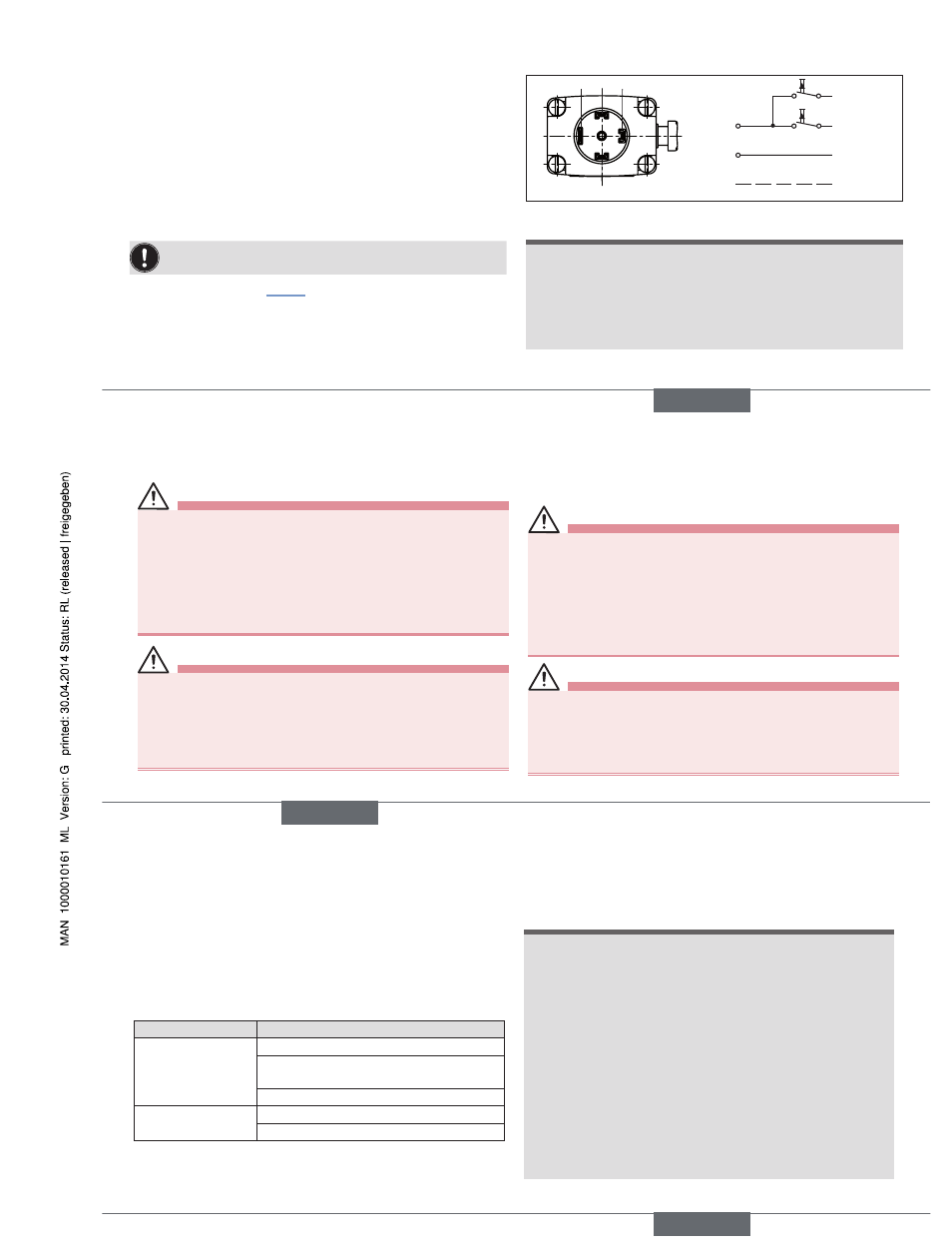

Fig. 4: Electrical connection - pulse model (CF 02)
note!
▶ Prevent simultaneous pulsing on both coil windings.
▶ Parallel to the terminals, no other consumers (relay, etc.) may be
connected.
▶ The respective coil connection that does not carry current must be
galvanically isolated (open).
▶ In case two or more valves are connected in parallel, the use of two-
pole or multi-pole switches must ensure that this requirement is met.
english
12
8 disassemBly
Danger!
Risk of injury from high pressure in the system/device.
▶ Before working on the system or device, switch off the pressure
and vent/drain lines.
Risk of injury due to electrical shock.
▶ Before working on the system or device, switch off the power
supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations
for electrical equipment.
WarnIng!
Risk of injury from improper disassembly.
▶ Disassembly may be carried out only by trained technicians and
with the appropriate tools.
Risk of injury from hazardous media.
▶ Before loosening lines or valves, flush out hazardous media,
depressurize and drain the lines.
9 mainTenance, TrouBleshooTing
9.1 safety instructions
Danger!
Risk of injury from high pressure in the system.
▶ Turn off the pressure and vent the lines before loosening lines or
valves.
Risk of injury due to electrical shock.
▶ Before working on the system or device, switch off the power
supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations
for electrical equipment.
WarnIng!
Risk of injury from improper maintenance work.
▶ Maintenance may be carried out only by trained technicians and
with the appropriate tools.
▶ Secure system against unintentional activation.
▶ Following maintenance, ensure a controlled restart.
english
13
9.2 malfunctions
If malfunctions occur, check whether:
→
the device has been installed according to the instructions,
→
the electrical and fluid connections are correct,
→
the device is not damaged,
→
all screws have been tightened,
→
the voltage and pressure have been switched on,
→
the pipelines are clean.
Malfunction Possible cause
Valve does not
switch Short circuit or coil interrupted
Medium pressure outside the permitted
pressure range
Manual control locked
Valve does not close Inner compartment of the valve is dirty
Manual control locked
9.2.1 repairs
Repairs may only be carried out by the manufacturer. Operating data
may change if spare parts are replaced by the user.
10 TransporTaTion, sTorage,
disposal
note!
Transport damage.
Inadequately protected devices may be damaged during
transportation.
▶ Protect the device against moisture and dirt in shock-resistant
packaging during transportation.
▶ Prevent the temperature from exceeding or dropping below the
permitted storage temperature.
Incorrect storage may damage the device.
▶ Store the device in a dry and dust-free location.
▶ Storage temperature -40 – +80°C.
Damage to the environment caused by parts contaminated
with media.
▶ Dispose of the device and packaging in an environmentally friendly
manner.
▶ Observe applicable disposal and environmental regulations.
english
