Brooks, Model 5851 i – Brooks Instrument 5851i User Manual
Page 17
2-7
Installation and Operation Manual
X-TMF-5851i-MFC-eng
Part Number: 541B109AAG
September, 2009
Brooks
®
Model 5851
i
Section 2 Installation

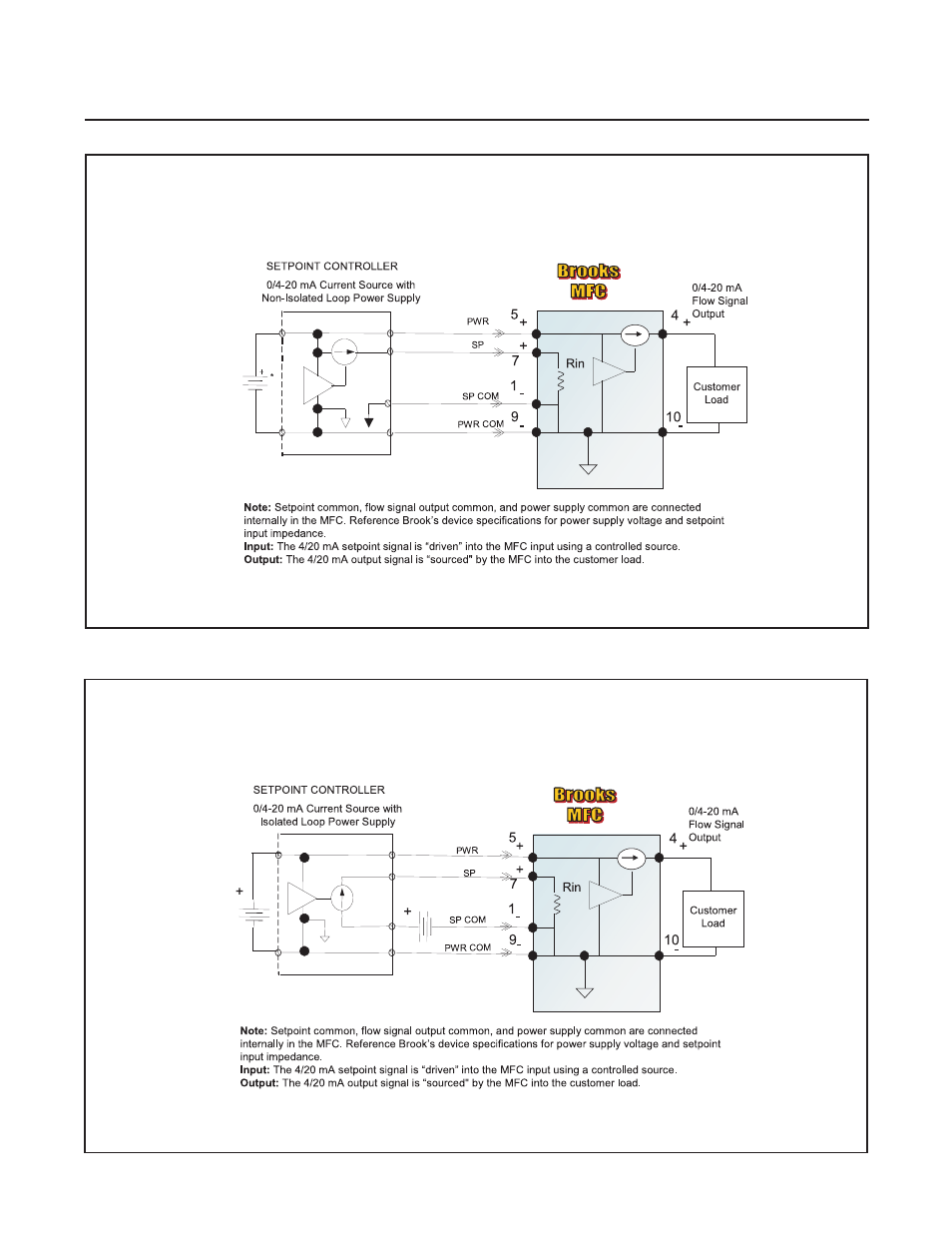

Figure 2-5 Recommended I/O Wiring Configuration for Current Sugnals (Non-Isolated Power Supply)
Figure 2-6 Recommended I/O Wiring Configuration for Current Sugnals (Isolated Power Supply)
