Initiators
Actuators
Interfaces
B1 Pre-stop highway
B2 Pre-stop satellite
B3 and B4 Sensing pallet route
B5 and B6 position of diverter arm
B7 RFID head
A1 and A2 Pre-stop. Single acting
A3 Arm. Double acting
B1-B6 M12-connector, 3-pin
A1 Ø 6 mm pneumatic hose
A2 Ø 6 mm pneumatic hose
A3 Ø 6 mm pneumatic hose
B7 RFID 4-pin (ASI)
B4 B5
B6
A3
A1
B1
B3
A2
B2
B7
M
Functions
Created by EBCCW 00:06
25 8050179

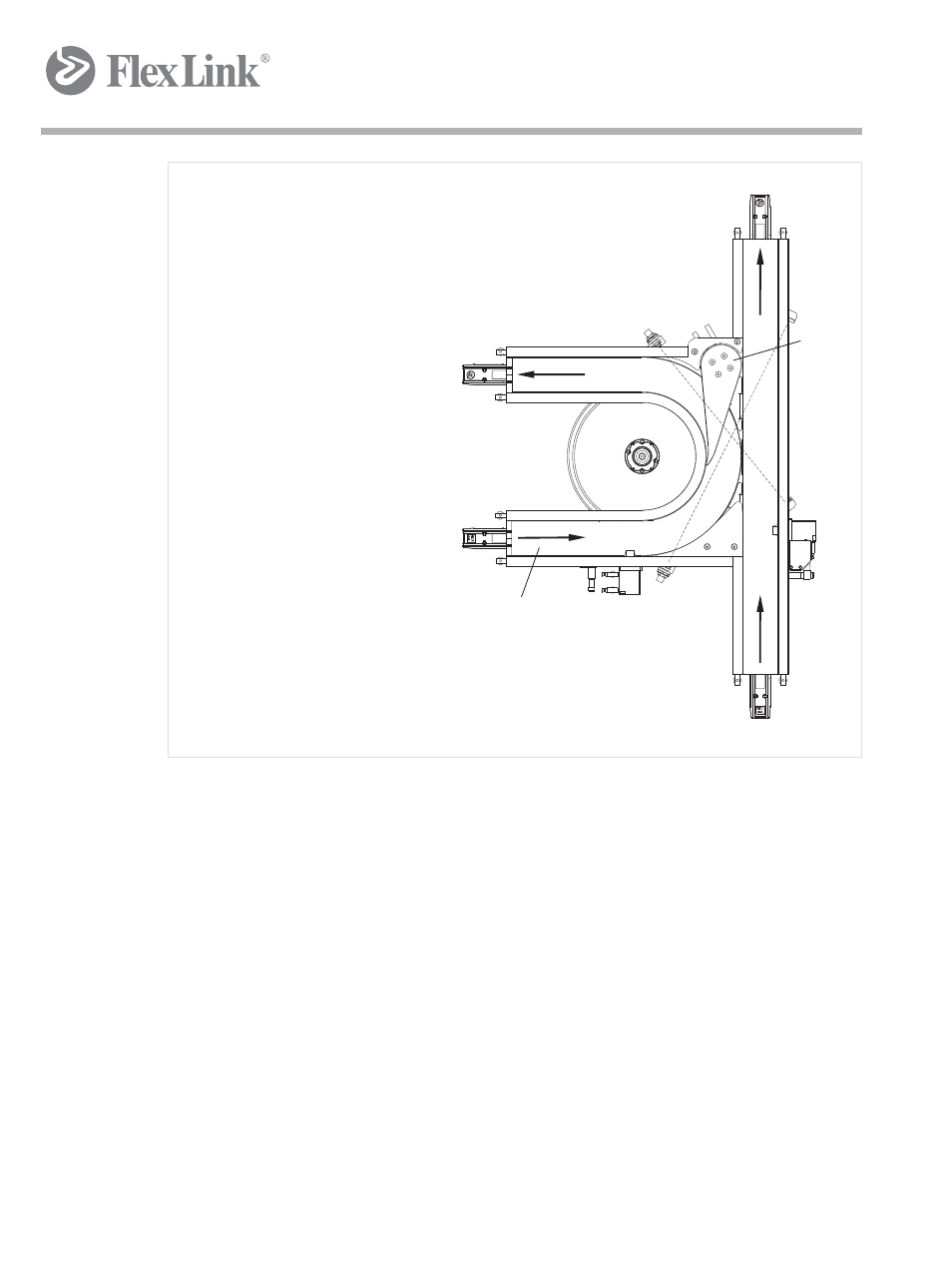

Figure 6 XLUT 90 C
Principle of operation
Merging a satellite pallet:
A pallet on Satellite (M) is approaching. Sensor B2 is activated which actu-
ates stop A2 which stops the pallet, if function is occupied. Sensor B3 and
B4 supervise the function area. If both sensors give low signal the area is
empty.
Diverting pallet to satellite:
A pallet on Highway is approaching. Sensor B1 is activated which actuates
stop A1 which stops the pallet, if function is occupied.
Sensor B3 and B4 supervise the function area. If both sensors give low sig-
nal the area is empty.
