Initiators
Actuators
Interfaces
B1 Pre-stop highway
B2 Pre-stop satellite
B3 and B4 Sensing pallet route
A1 Pre-stop. Single acting
A2 Pre-stop. Single acting
B1-B4 M12-connector, 3-pin
A1 Ø 6 mm pneumatic hose
A2 Ø 6 mm pneumatic hose
B3
B2
A2
B4
B1
A1
16 8050179
Functions

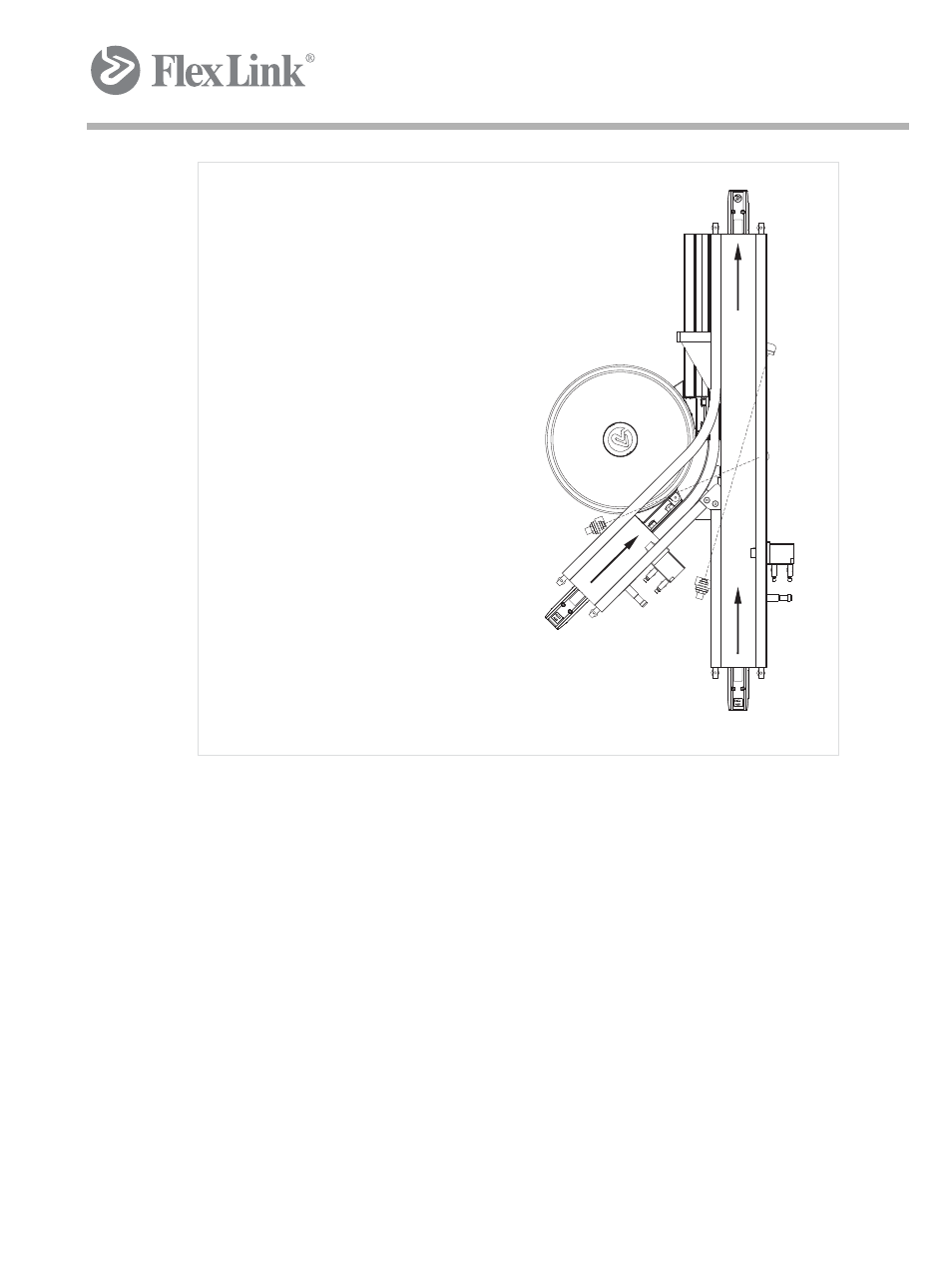

Figure 4 XLUT 45 M (also valid for XLUT 90 M)
Principle of operation
Merging a satellite pallet
A pallet on Satellite is approaching. Sensor B2 is activated which actuates
stop A2 which stops the pallet, if function is occupied.
Sensor B3 and B4 supervise the function area. If both sensors gives low
signal the area is empty.
Straight passing through:
A pallet on Highway is approaching. The pallet activates sensor B1 which
actuates stop A1 which stops the pallet if function is occupied.
Sensor B3 and B4 supervise the function area. If both sensors gives low
signal the area is empty.
