10 8050179
Functions
3 Functions
3.1 Function description for Divert modules
The diverter function gives the opportunity to split highway flow to two
streams (satellite & highway), in a fully controlled way. The function is
equipped with all needed parts to setup and run it, including set of sensors
(not mandatory), RFID read/write head (not mandatory), fasteners and
pneumatic actuators.
Excluded parts:
• Chain
• Slide rails for chain and guide rails
• Tubes for pneumatic circuit
• Pallets
• Cables (for sensors and RFID r/w head)
3.1.1 Diverters

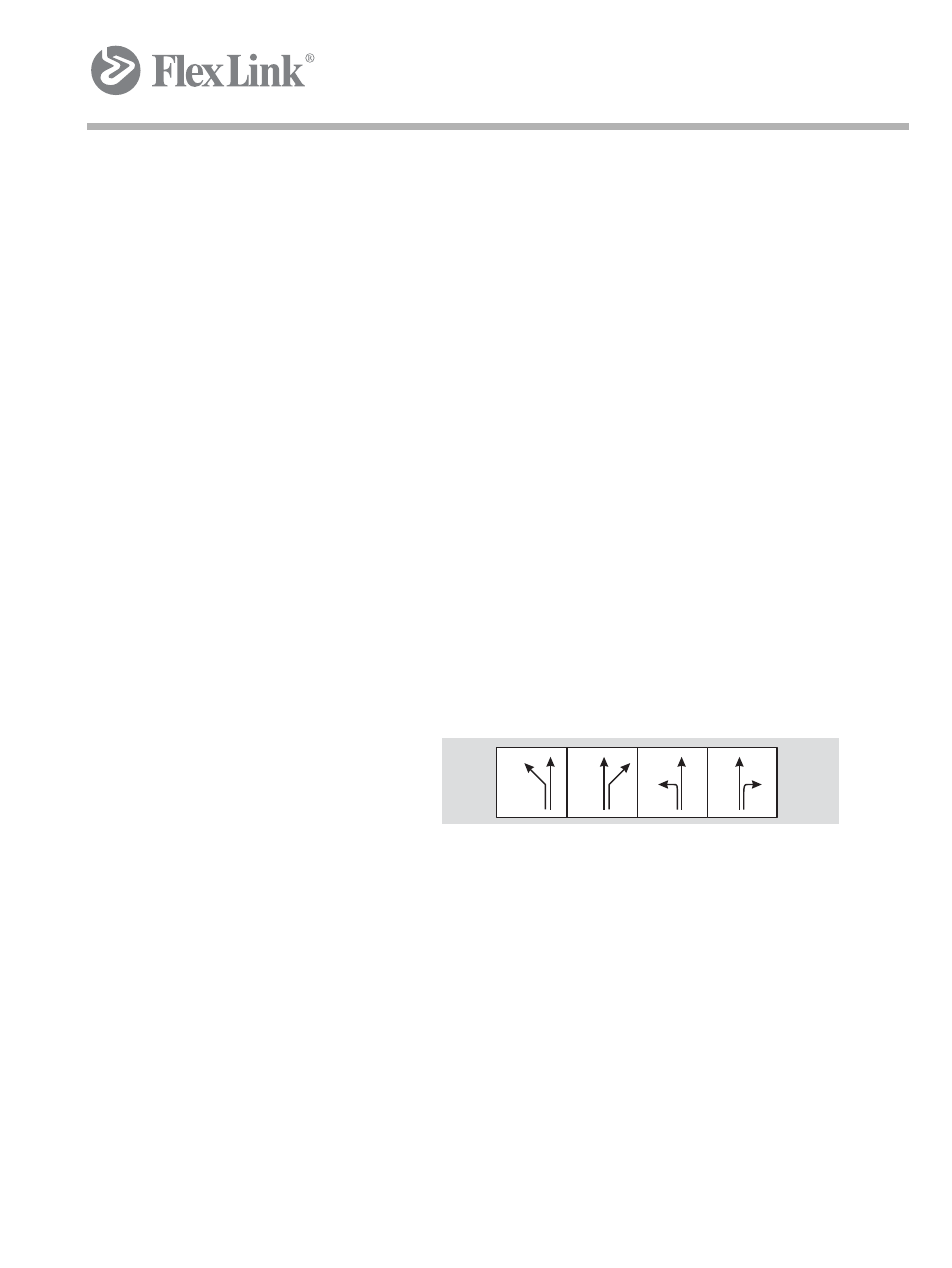

Diverters are used to split a flow of pallets from one line into two. The lines
can be in 45° or 90° angle.
DL DL DR DR
90° 90° 45° 45°
The Diverter is an active unit with one infeed and two outfeed conveyors.
There are four different variants of the Diverter.
• Diverter, 45°, Left
• Diverter, 45°, Right
• Diverter, 90°, Left
• Diverter, 90°, Right
