Functions
Created by EBCCW 00:06
15 8050179
3.2 Function description for Merge modules
The merging function gives the opportunity to merge two flows of pallets
(satellite to highway) in a fully controlled way. The function is equipped with
all needed parts to setup and run it, including set of sensors (not mandato-
ry), fasteners and pneumatic actuators.
Excluded parts:
• Chain
• Slide rails for chain and guide rails
• Tubes for pneumatic circuit
• Pallets
• Cables (for sensors)
3.2.1 Mergers

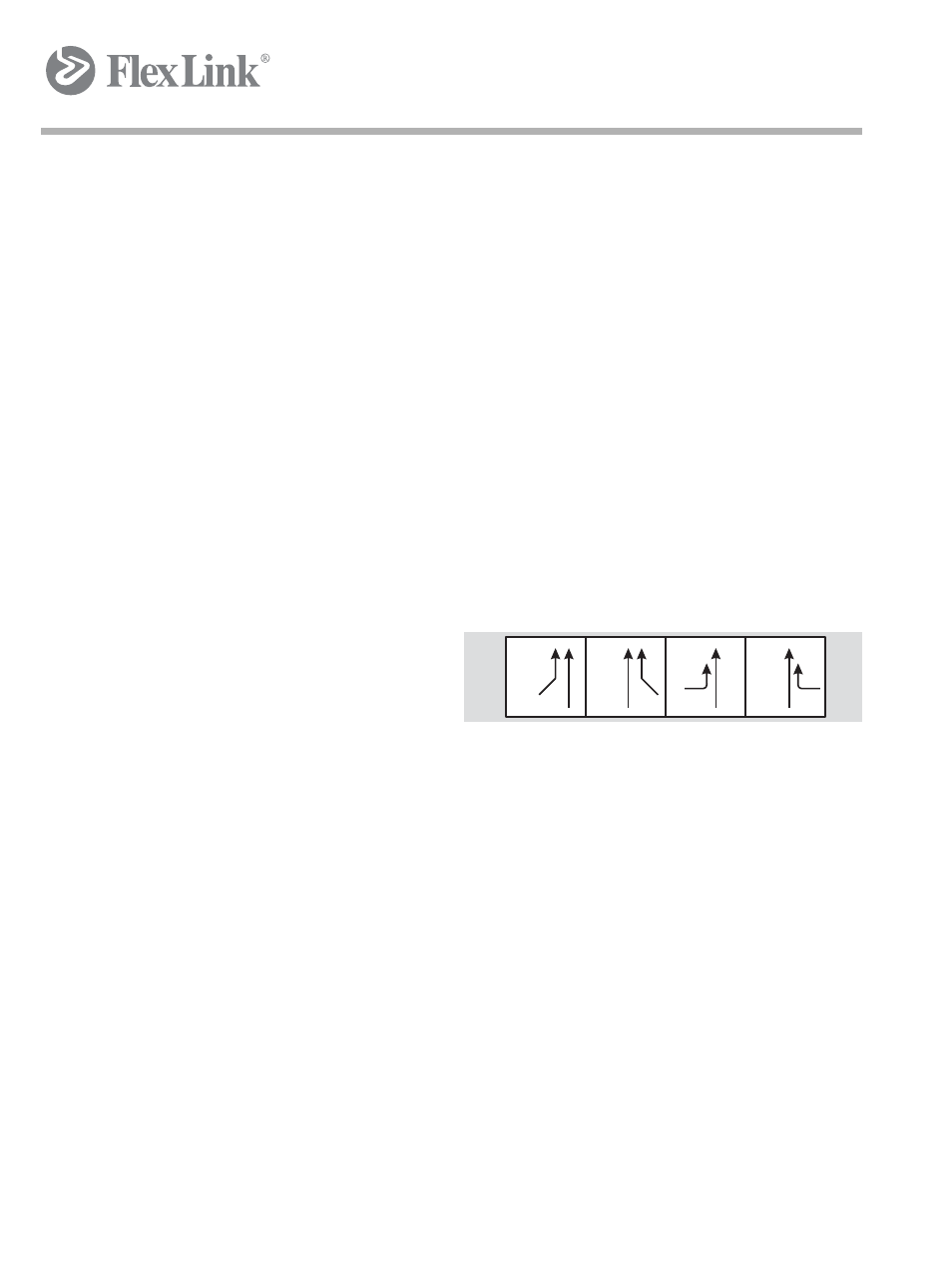

Mergers are used to combine the flow from two lines into one. The lines can
be in 45° or 90° angle.
ML ML MR MR
90° 90° 45° 45°
The Merger is an active unit with two infeed and one outfeed conveyor.
There are four different variants of the merger.
• Merger, 45°, Left
• Merger, 45°, Right
• Merger, 90°, Left
• Merger, 90°, Right
