CONNECTIONS
Check your accessories

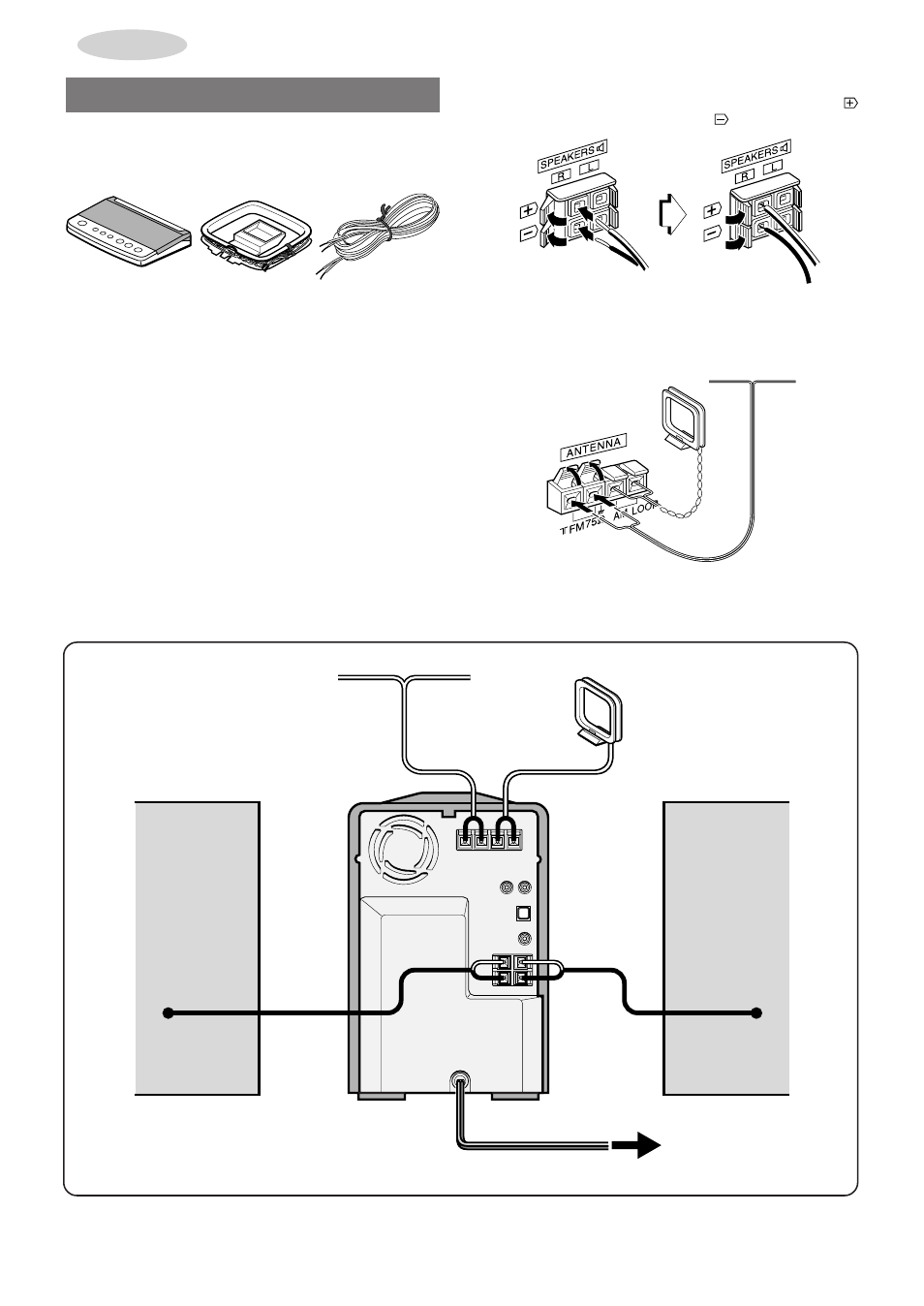

1 Connect the speaker cords to the main unit.
The cords with the white stripes should be connected to the
terminals and the other cords to the
terminals.
2 Connect the supplied antennas.
Connect the FM antenna to the FM 75
Ω
terminals and the AM
loop antenna to the AM LOOP terminals.
PREPARATIONS
Operating Instructions, etc.
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.
IMPORTANT
• Connect the speakers, antennas, and all optional equipment first.
Finally, connect the AC cord.
• There are no differences between the two speaker units. Both
speakers can be connected as L (Left) or R (Right).
Remote control FM antenna AM loop antenna
AM loop antenna
FM antenna
1 1
3
2
2
1
2
2
