PCE-5120 User Manual

• Head: Number of heads
• Precomp: Write precomp
• Landing Zone: Landing zone
• Sector: Number of sectors

3.3.4 Drive A / Drive B

This category identifies the types of floppy disk drives installed in the
system. The options are: None/360K, 5.25"/1.2M, 5.25"/720K, 3.5"/
1.44M, 3.5"/2.88M, 3.5".

3.3.5 Halt On

This category determines whether system start-up will halt or not when
an error is detected during power up.
The options are: No Errors/All Errors/All, But Keyboard/All, But Dis-
kette/All, But Disk/Key

3.3.6 Memory

This category displays base memory, extended memory, and total mem-
ory detected during POST (Power On Self Test).

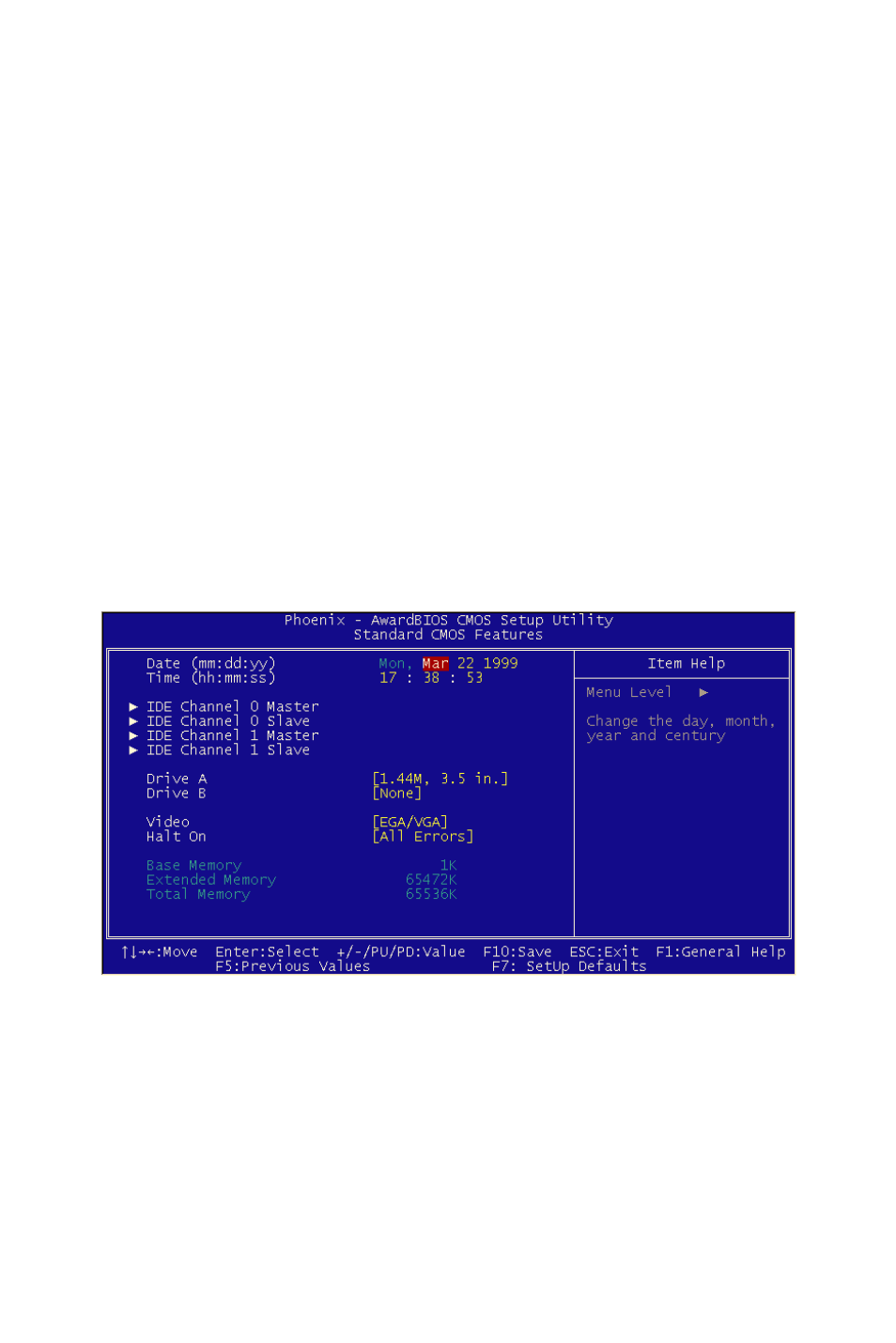

Figure 3.2: Standard CMOS Features Screen
